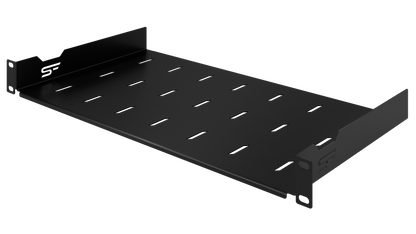

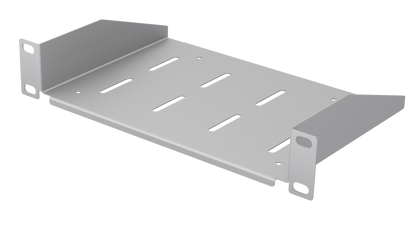

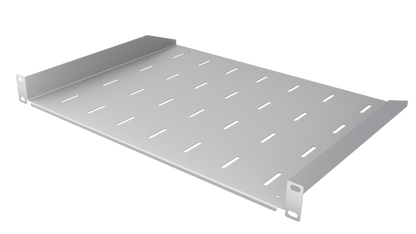

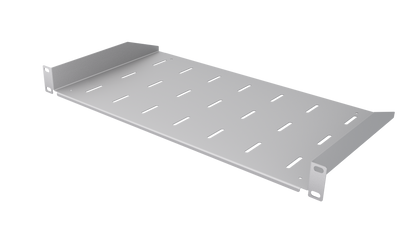

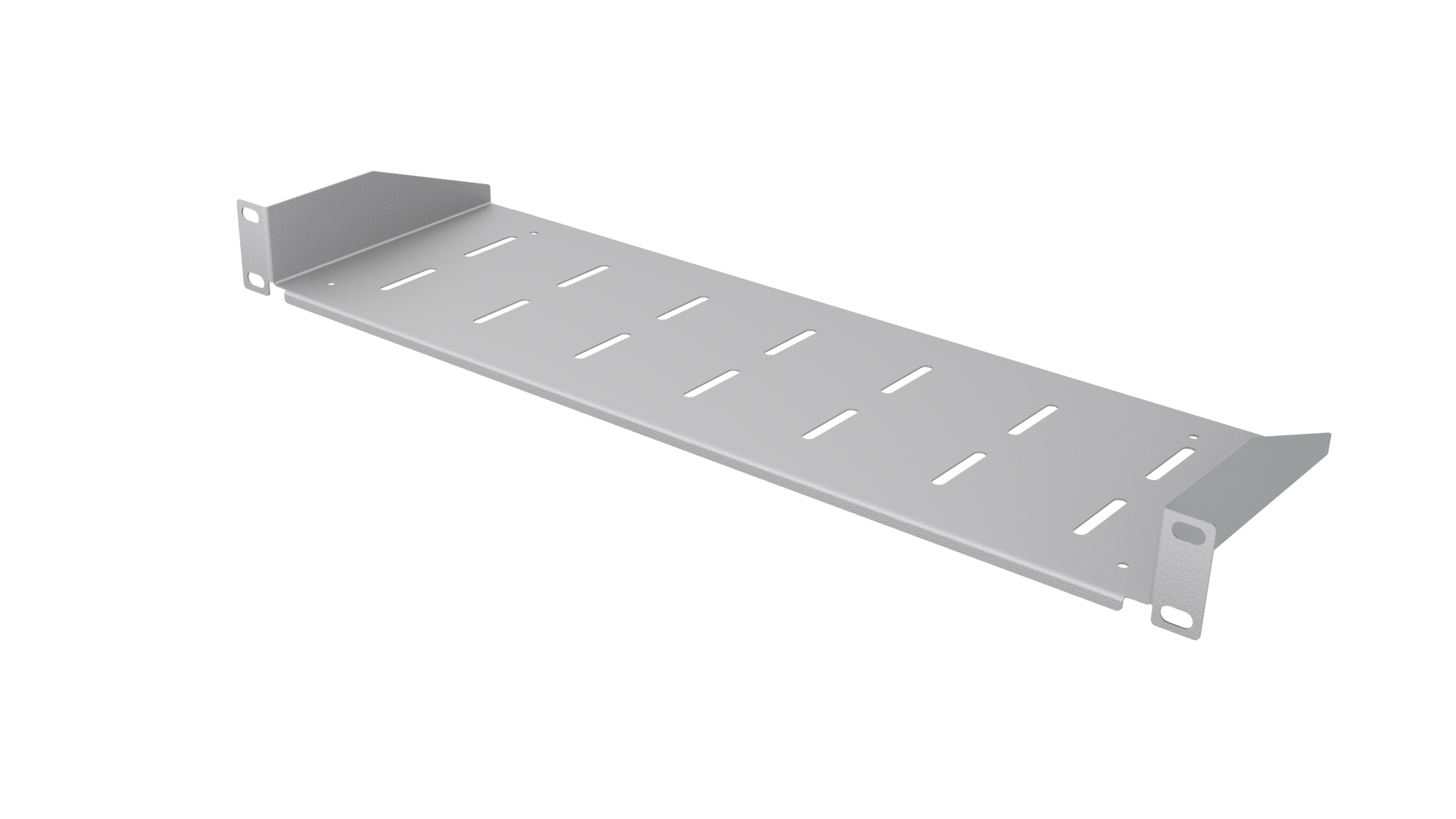

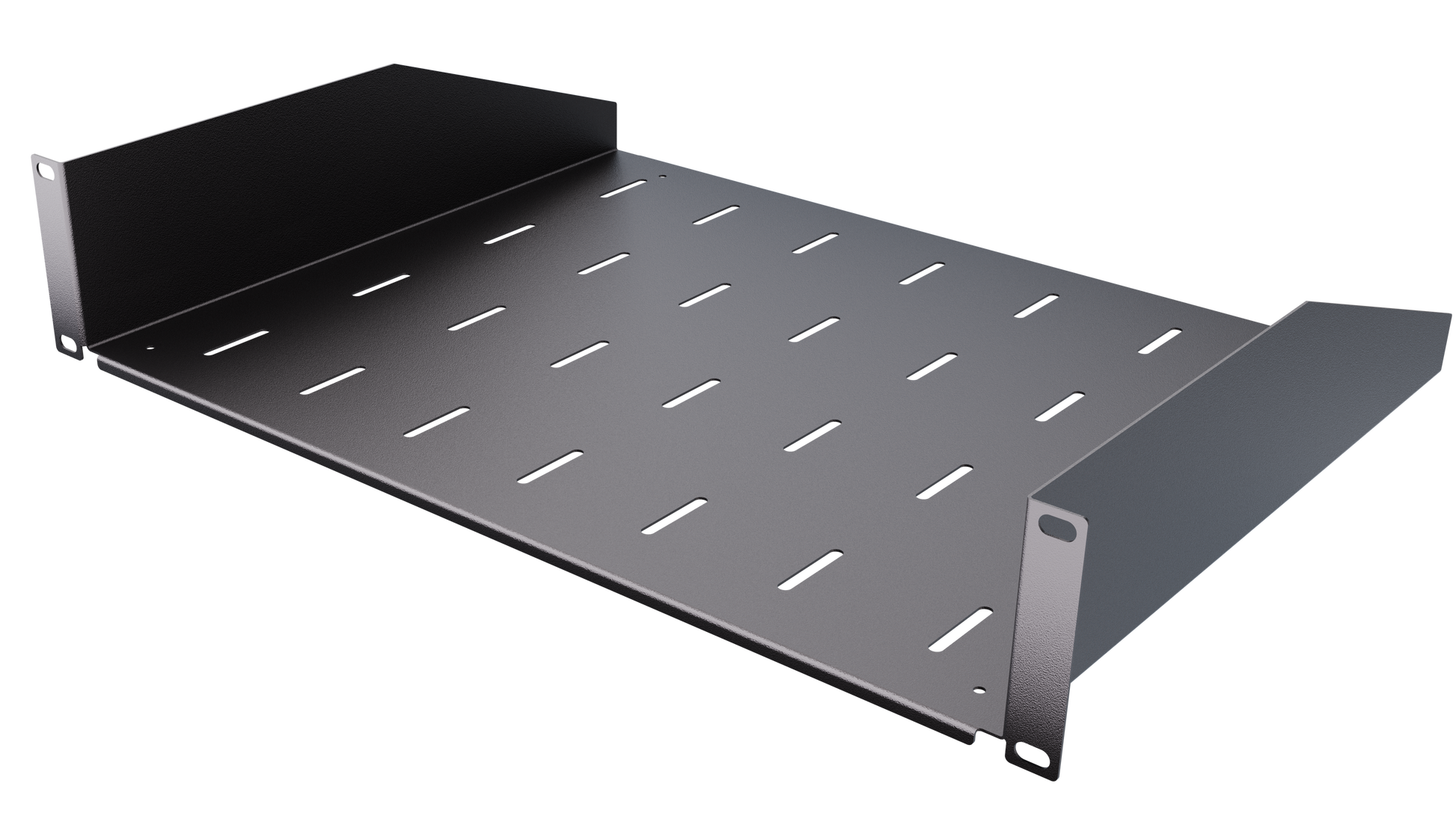

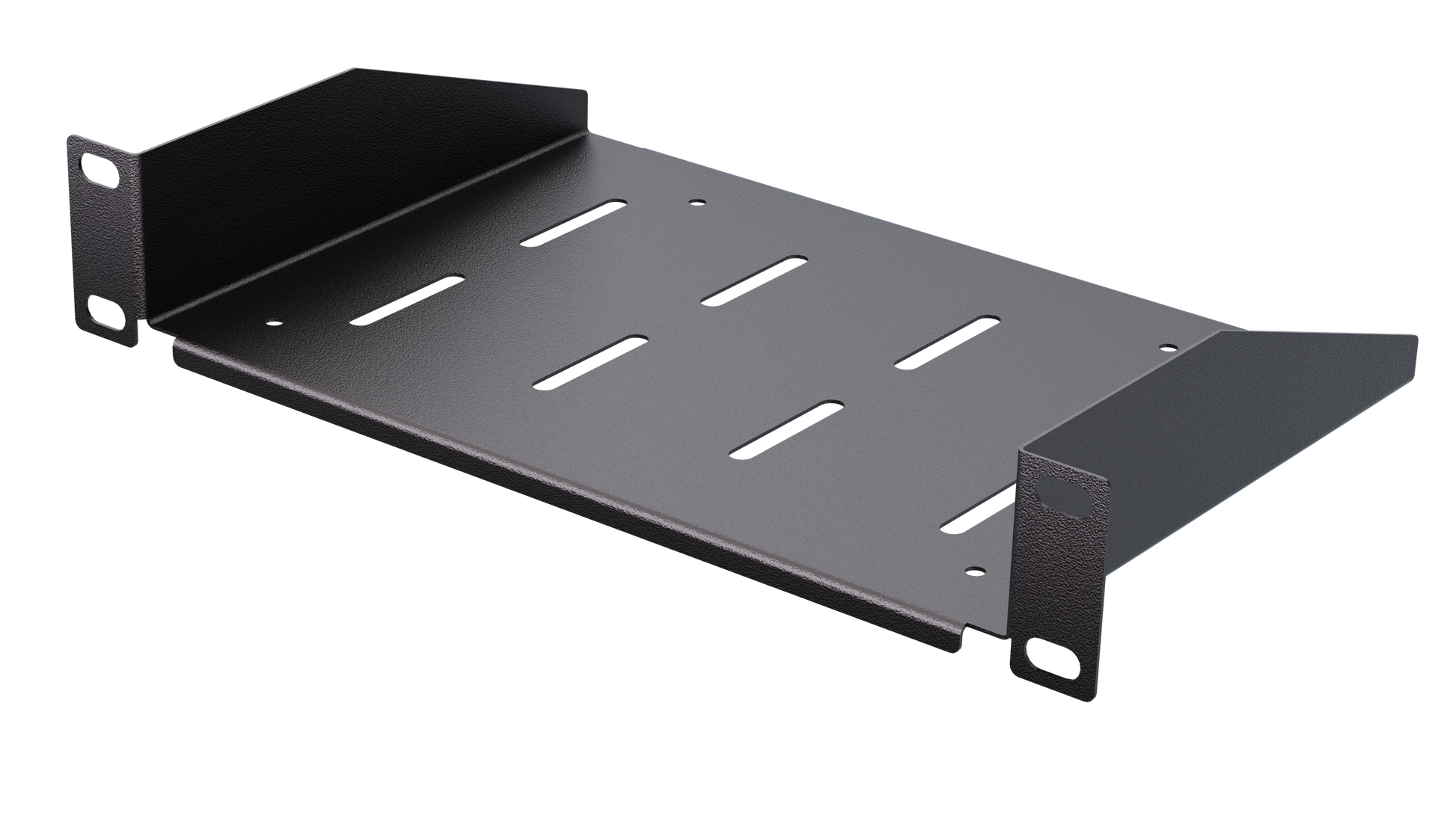

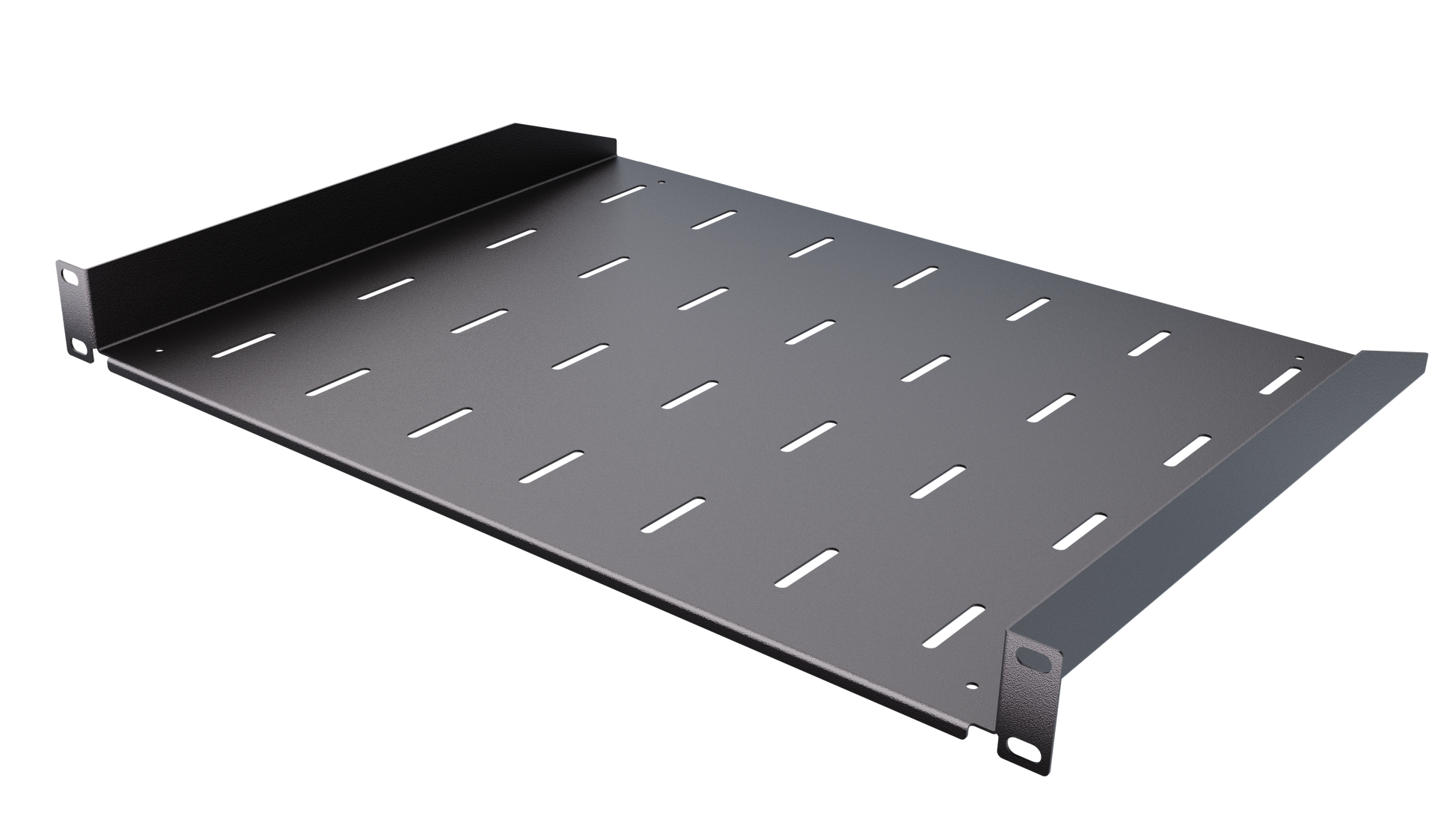

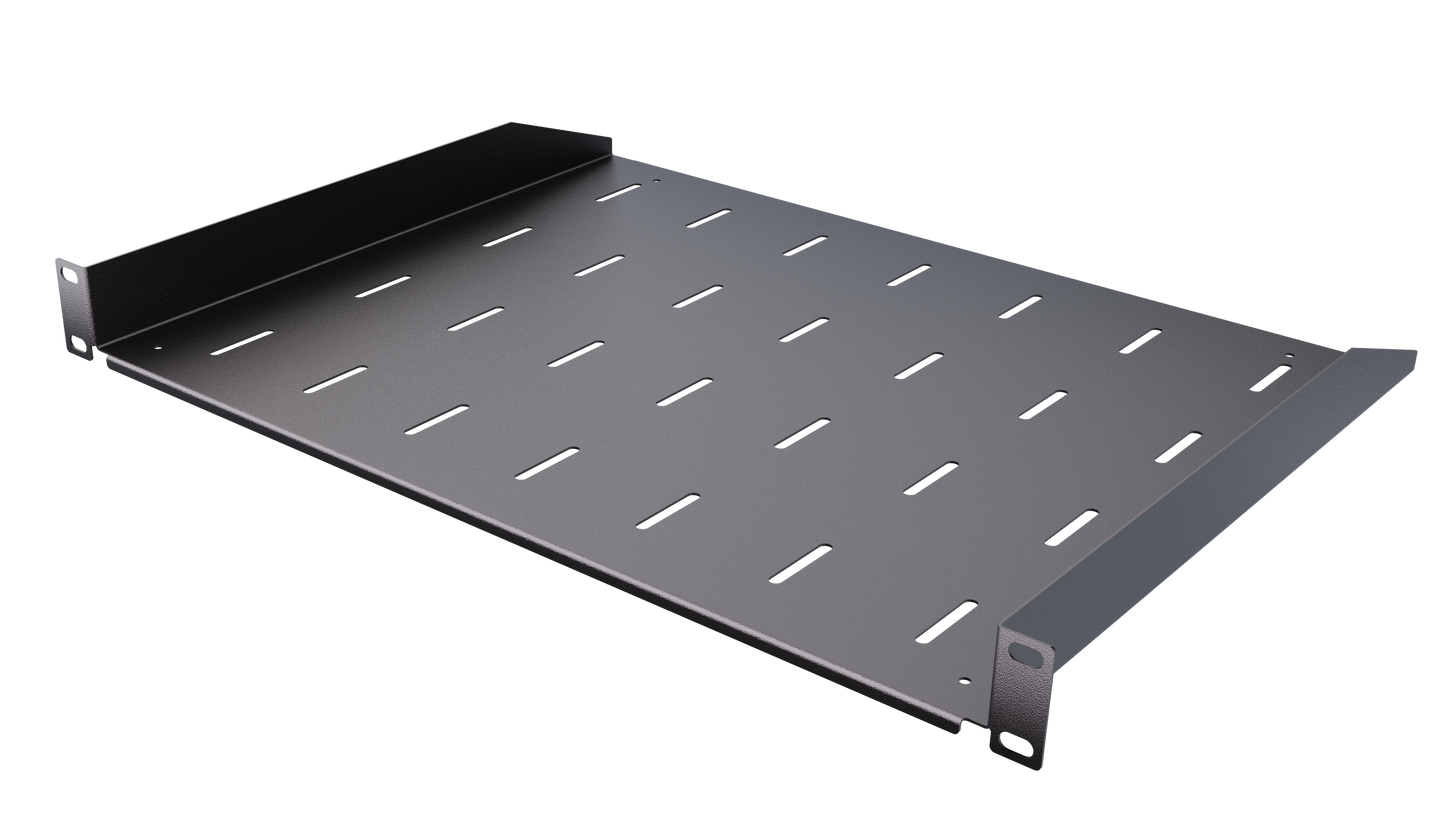

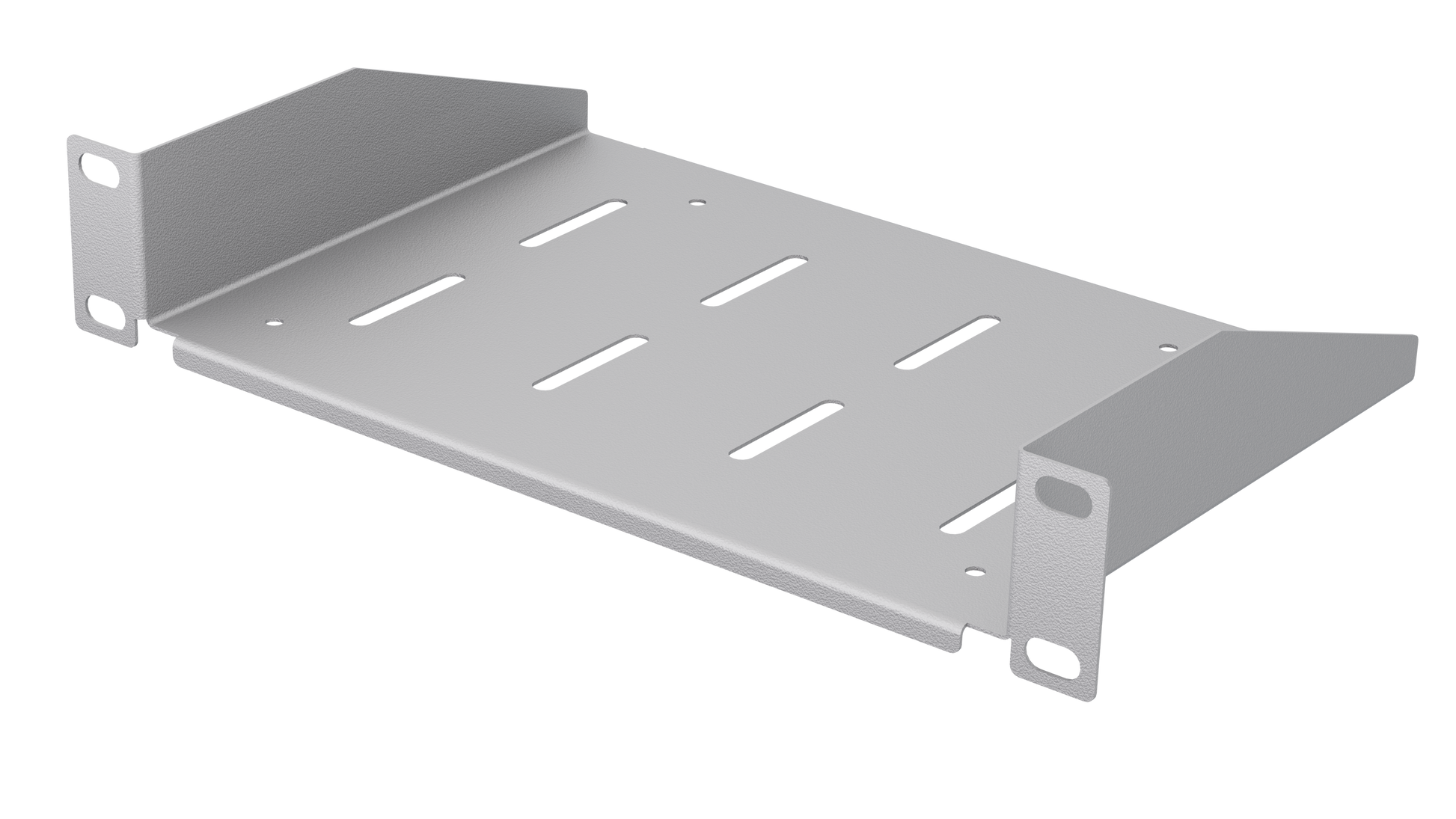

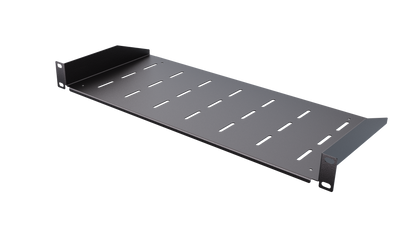

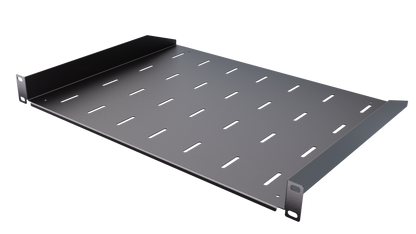

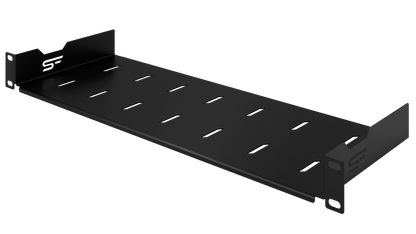

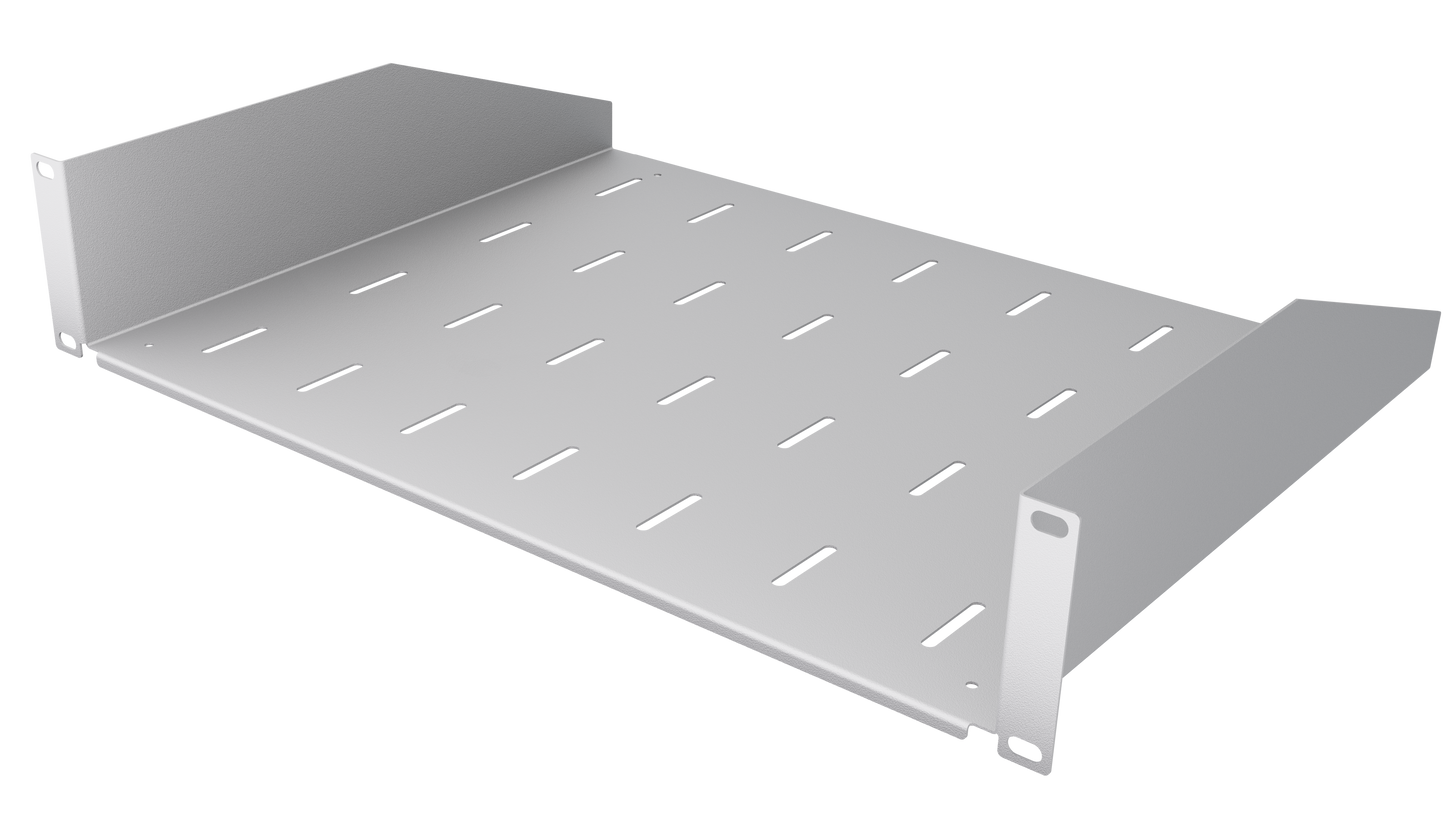

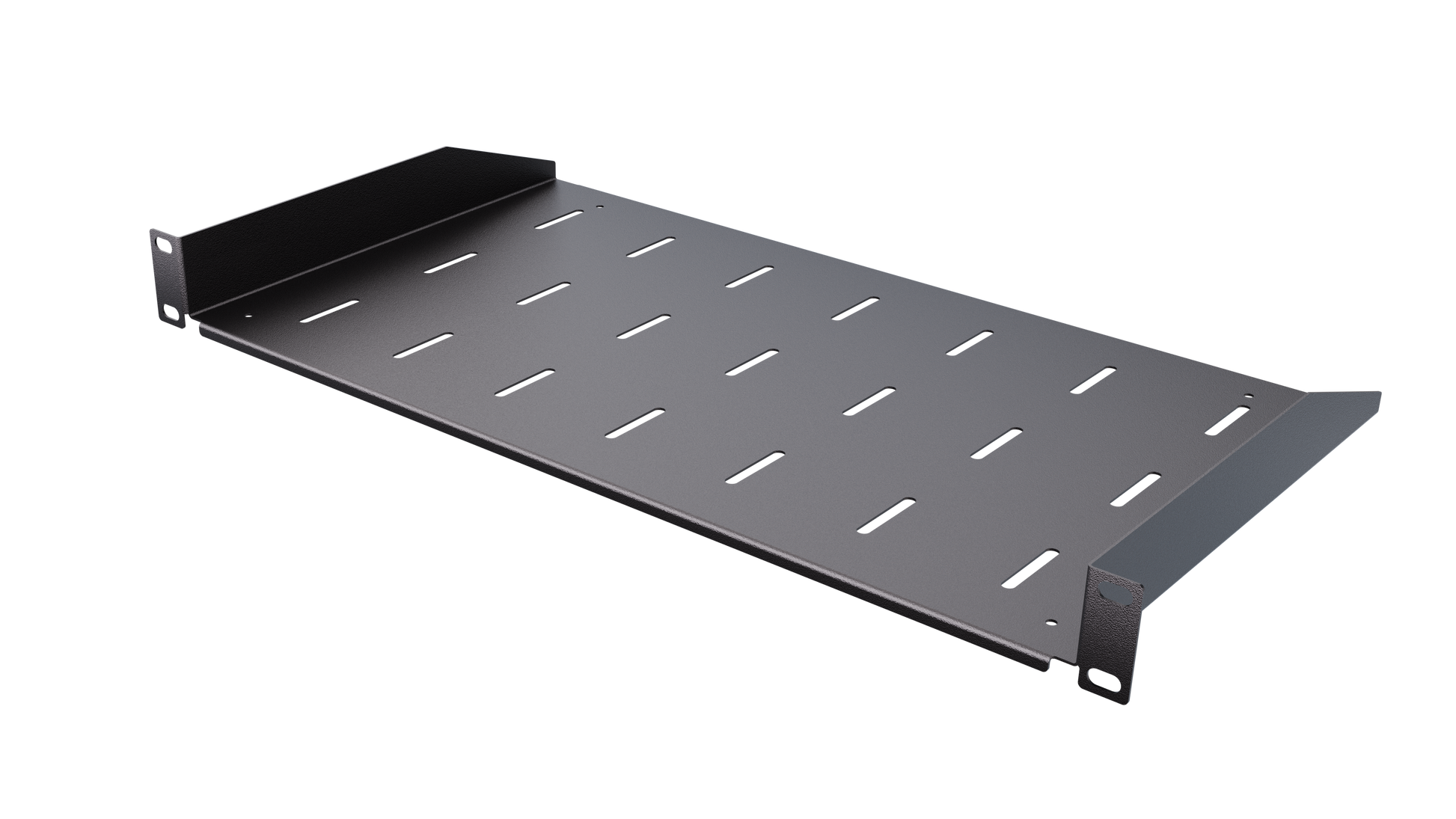

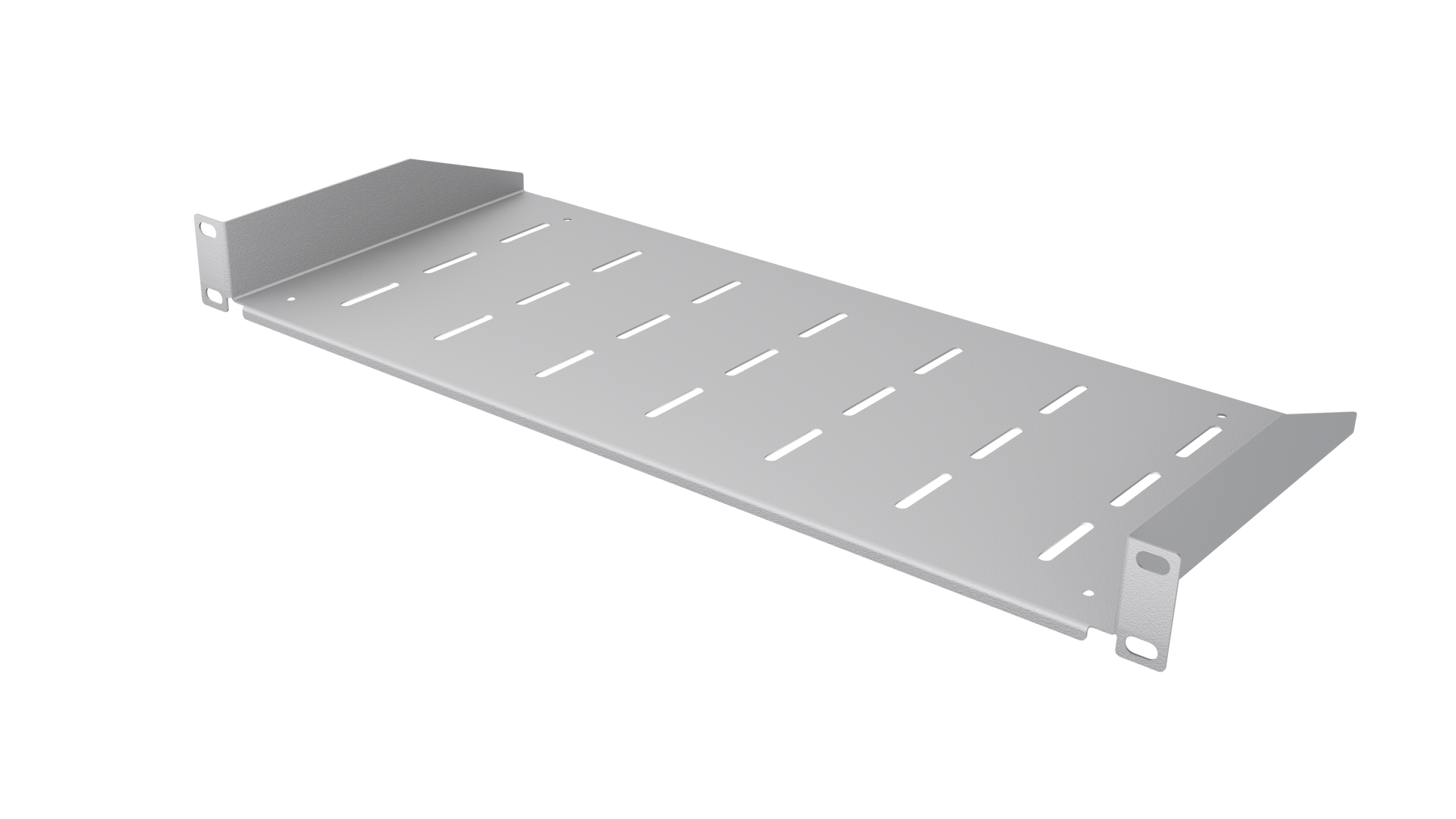

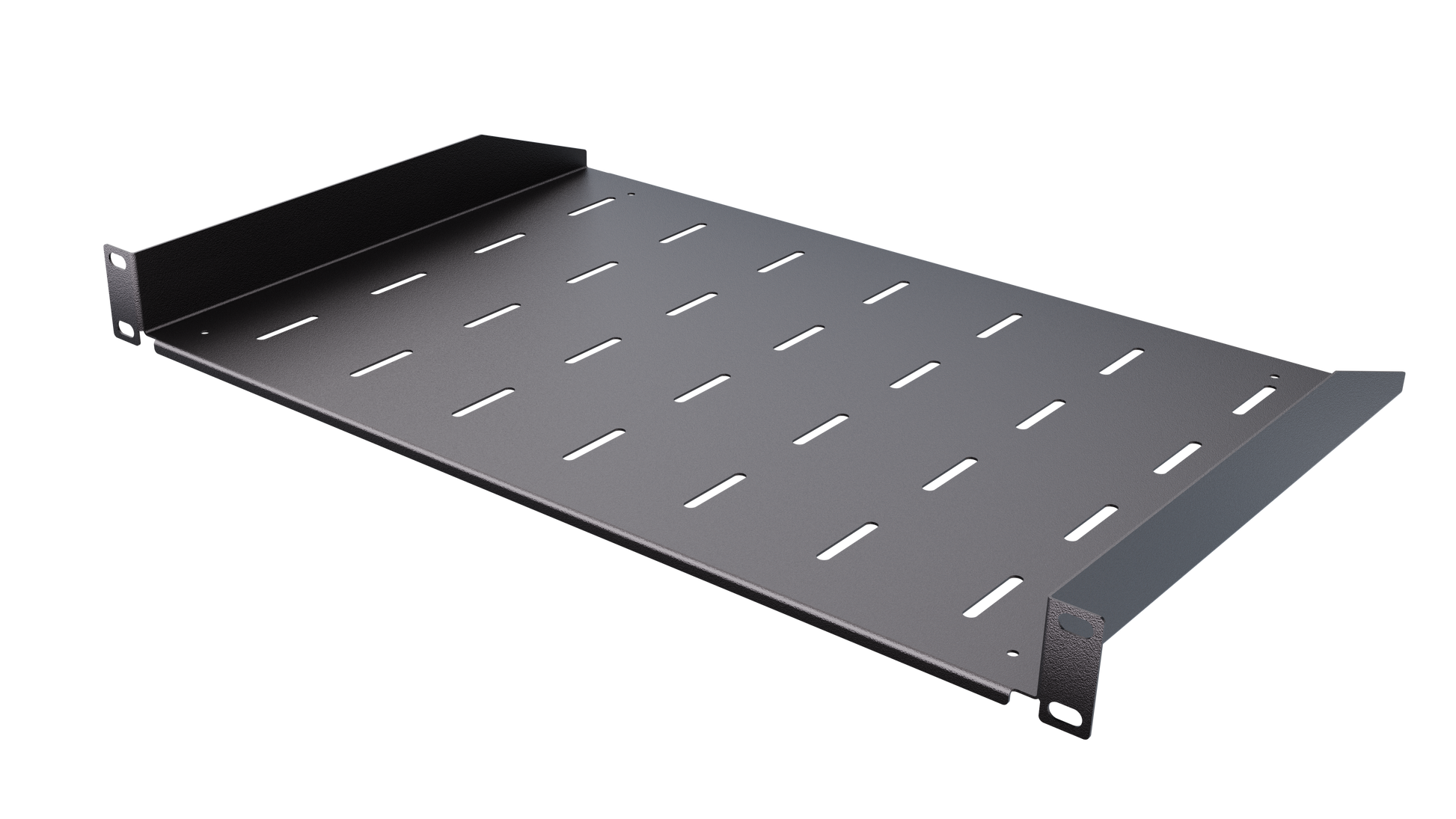

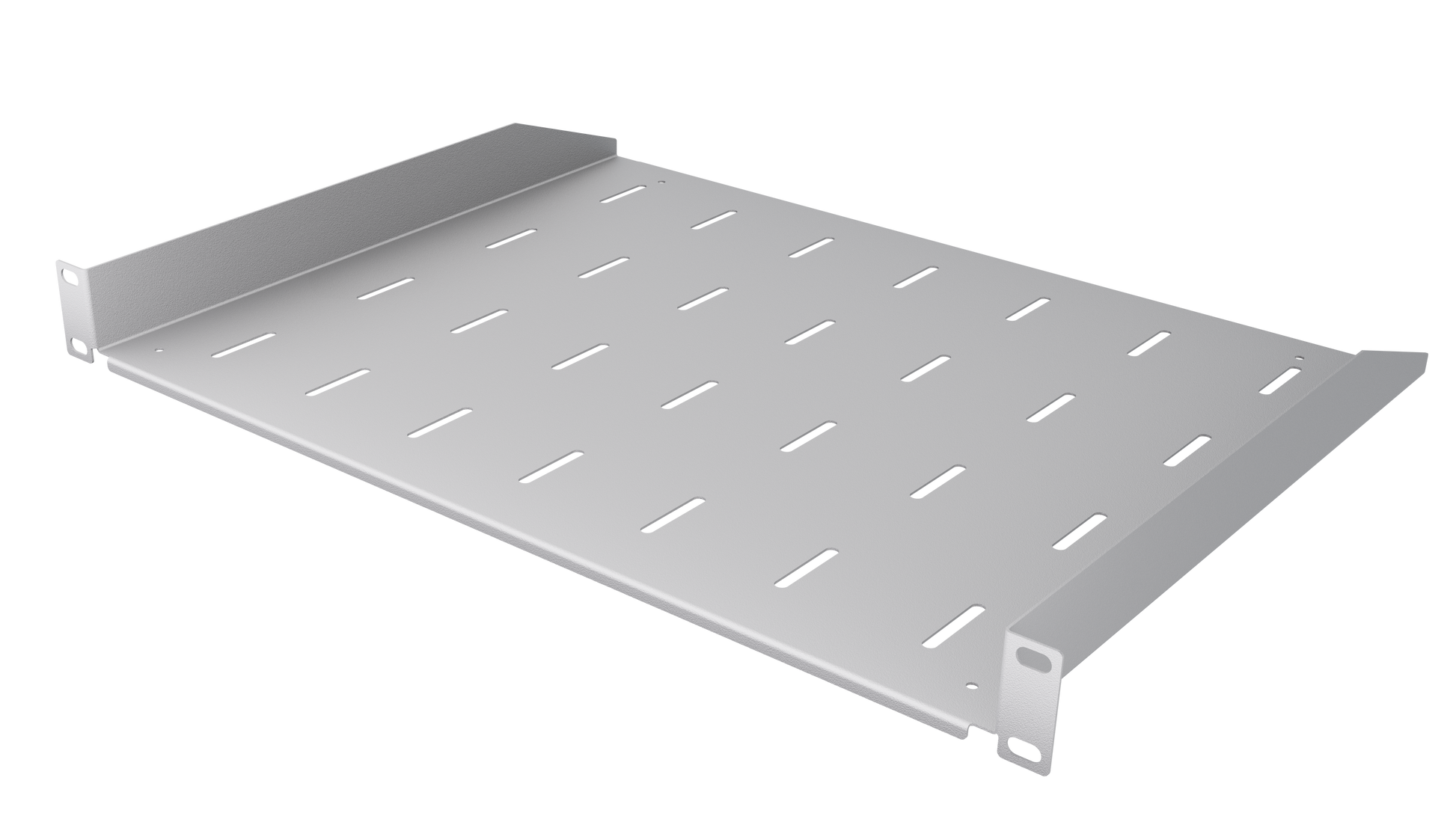

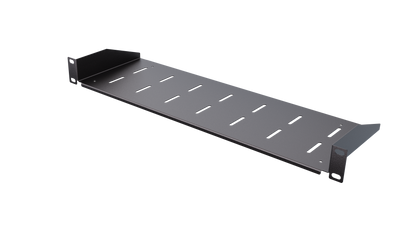

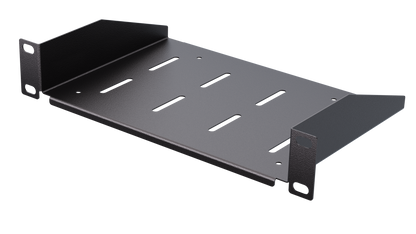

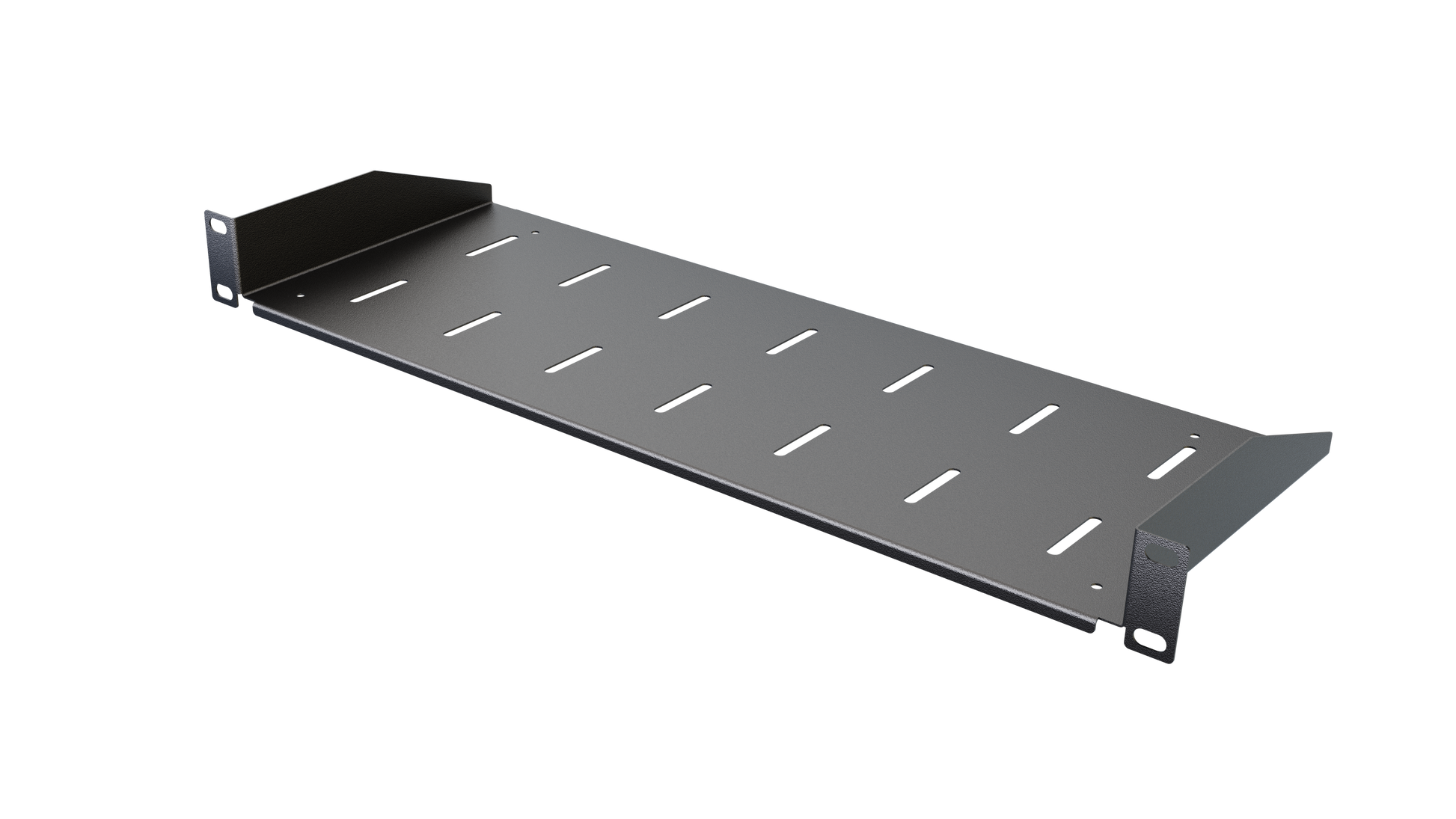

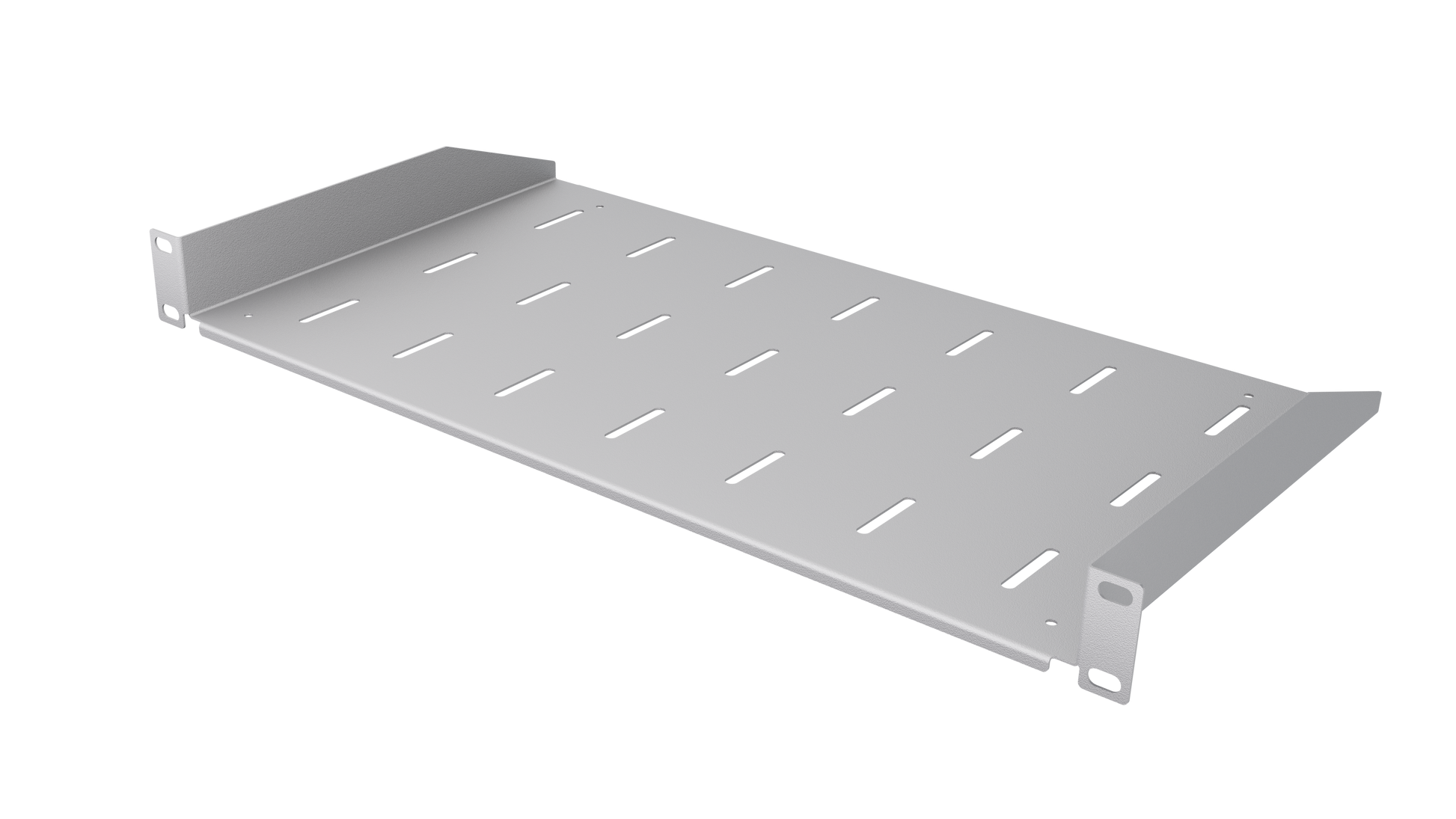

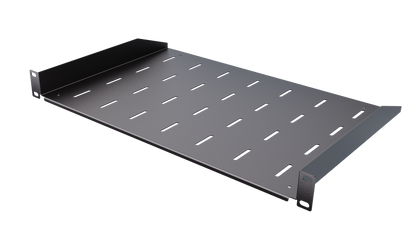

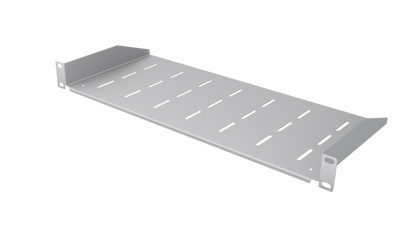

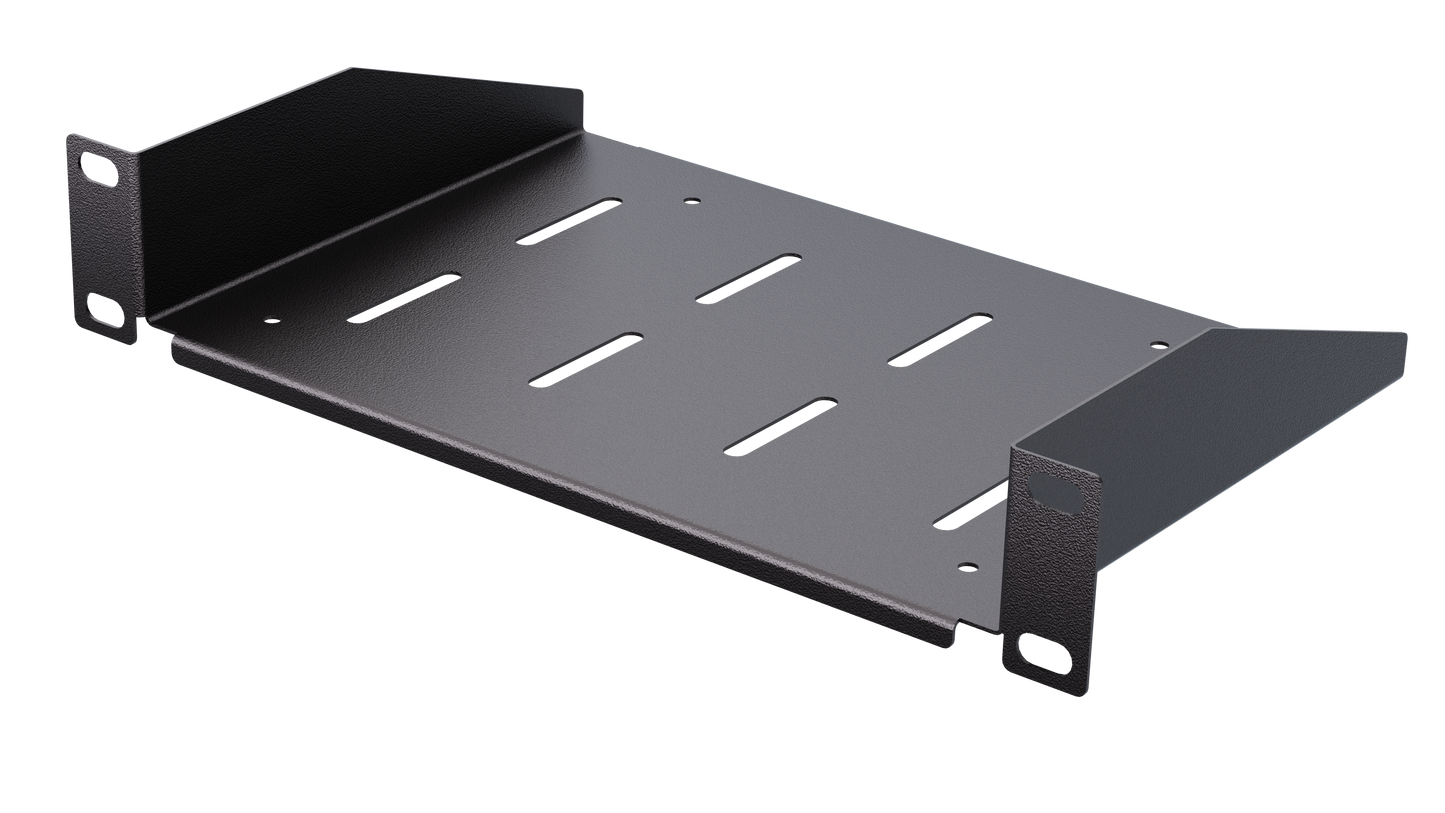

Universal RACK Shelf – Eco / Standard / Professional Versions:

The 1U RACK shelf is an ideal solution for placing devices without mounting brackets in RACK cabinets. Available in 10” and 19” widths with various depth options, this shelf series is designed to meet the needs of both budget-conscious and professional users. Made of high-quality powder-coated steel, it guarantees strength, stability, and long-term reliability for all types of installations.

Product Specifications:

• Width: 10”, 19”

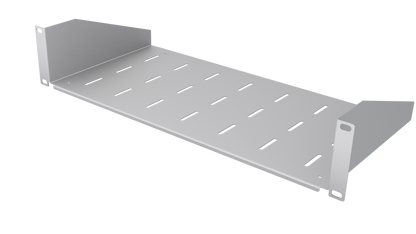

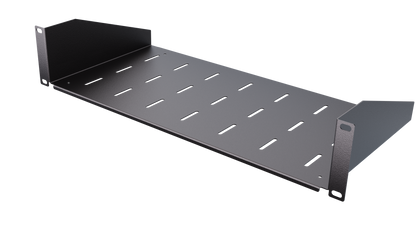

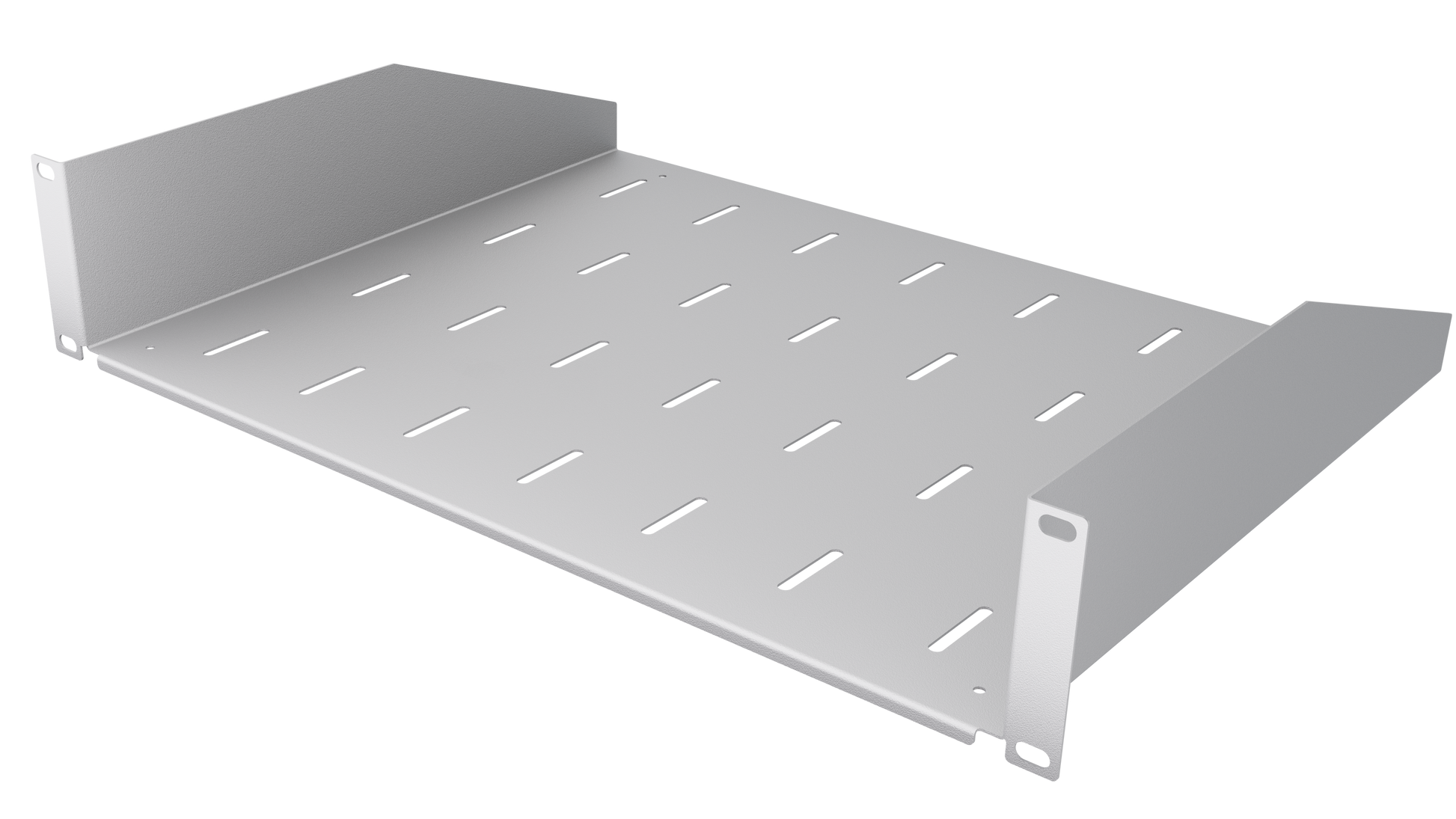

• Height: 1U (2U also available for selected depths)

• Depths Available:

• Eco: 150mm, 170mm, 200mm, 220mm, 250mm, 300mm, 350mm

• Standard: 150mm, 170mm, 200mm, 250mm, 270mm, 300mm, 350mm

• Professional: 200mm, 250mm, 270mm, 300mm, 350mm

• Color: Grey and black / Black and grey

• Material: Powder-coated steel, sheet thickness approx. 1 mm

• Load Capacity:

• Eco & Standard: Up to 25 kg with even weight distribution

• Professional: Up to 15 kg with even weight distribution

Features and Benefits:

• Practical holes

All versions include bottom perforations that allow for easy securing or attaching of devices using cable ties or Velcro straps. These holes also provide efficient ventilation.

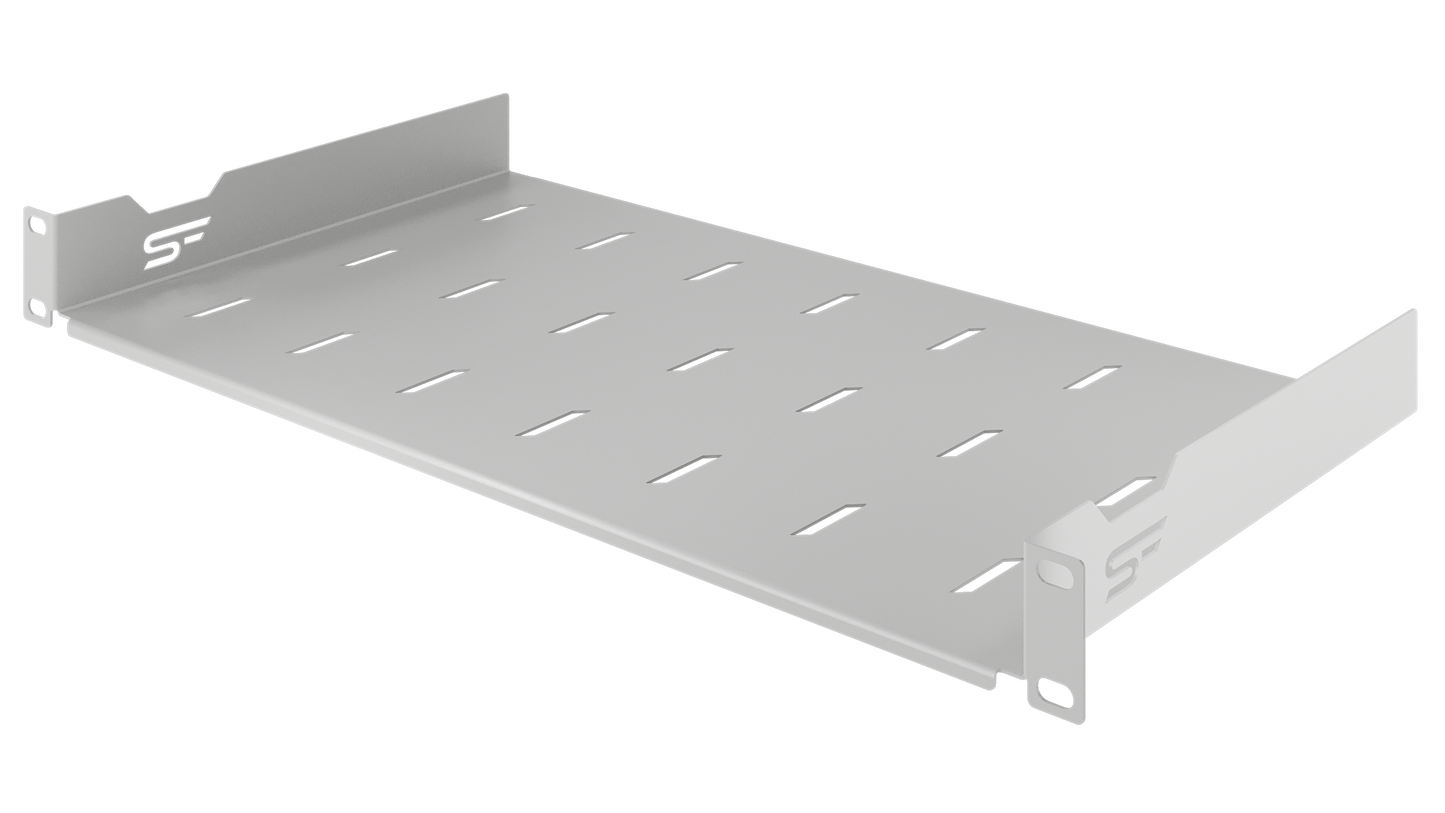

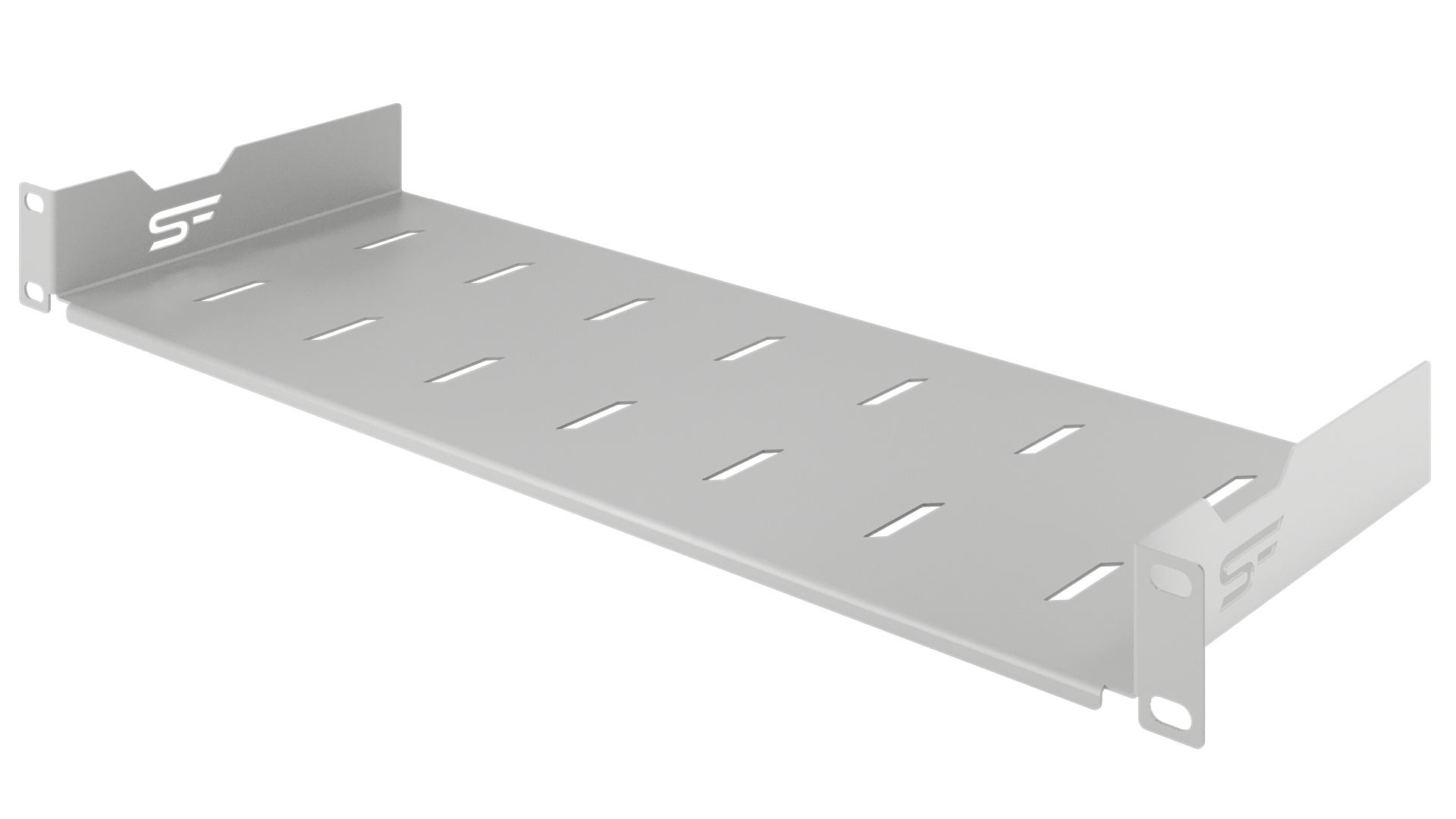

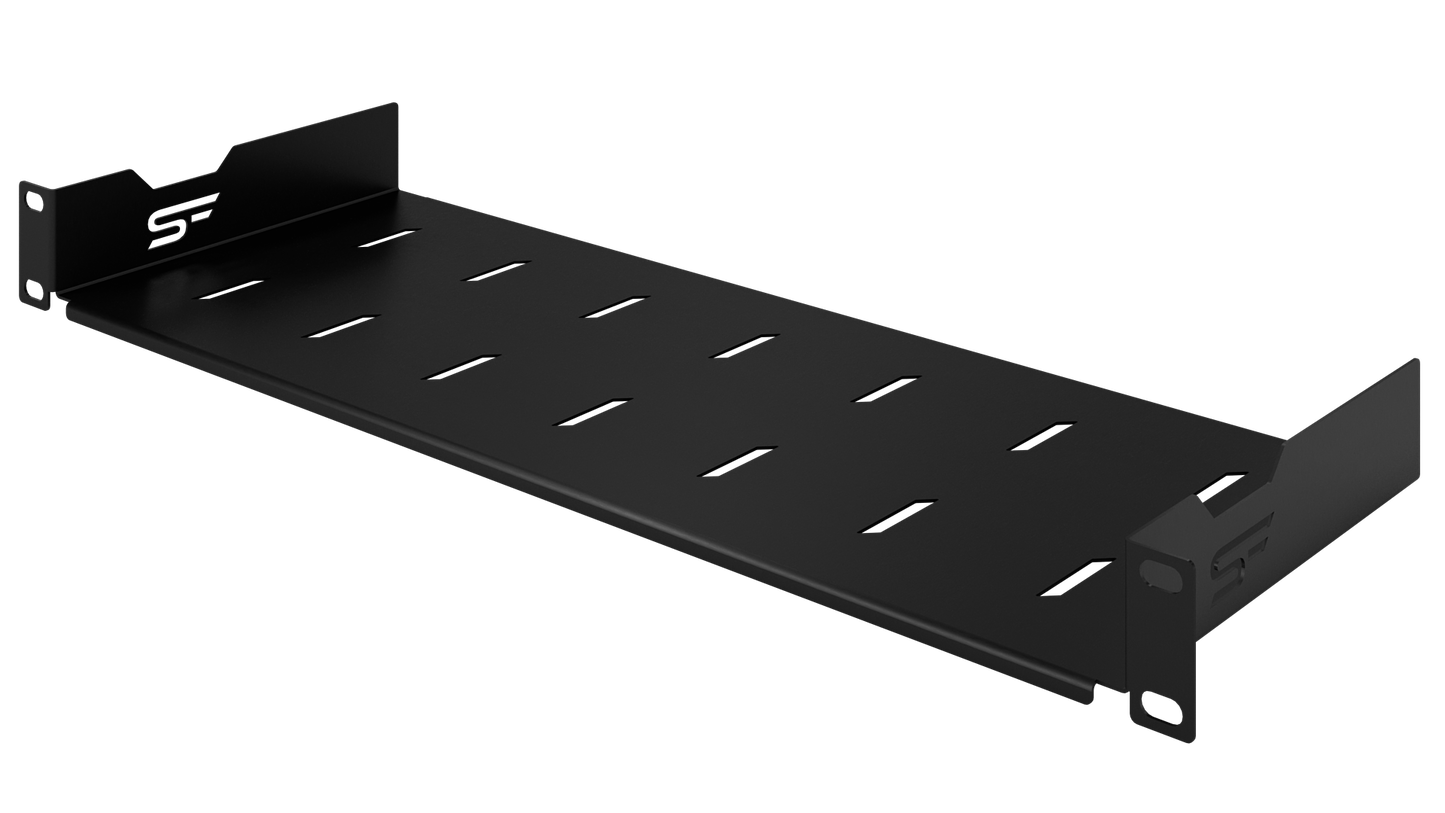

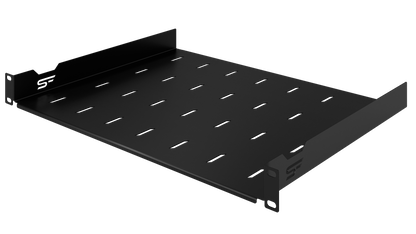

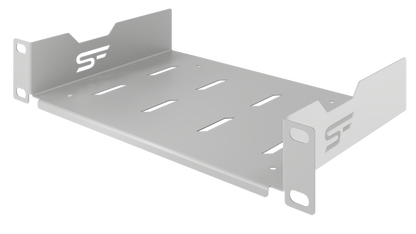

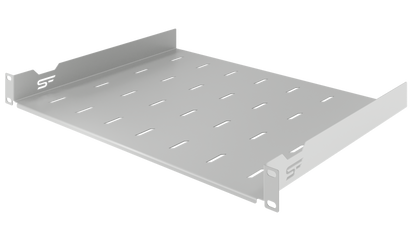

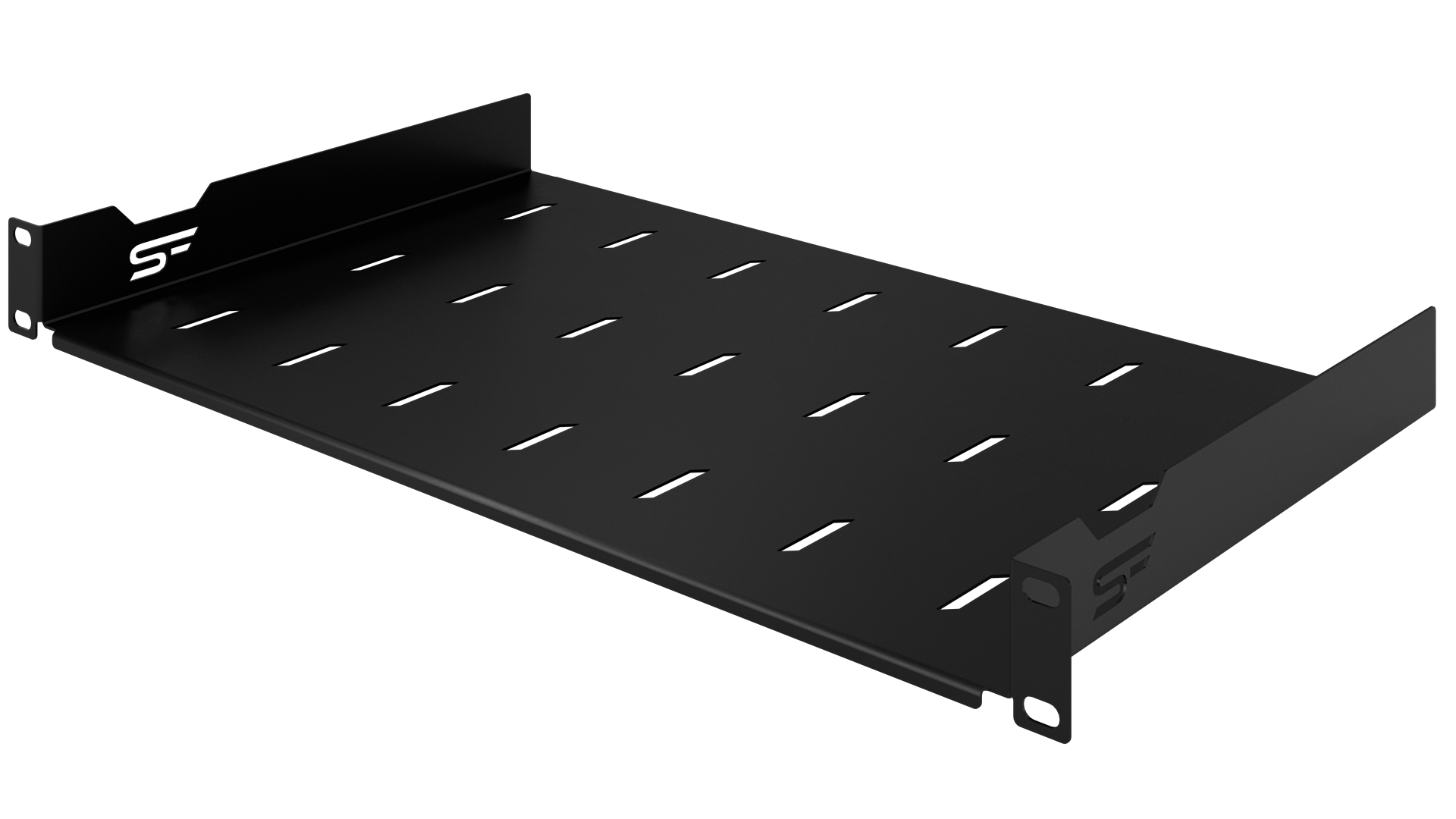

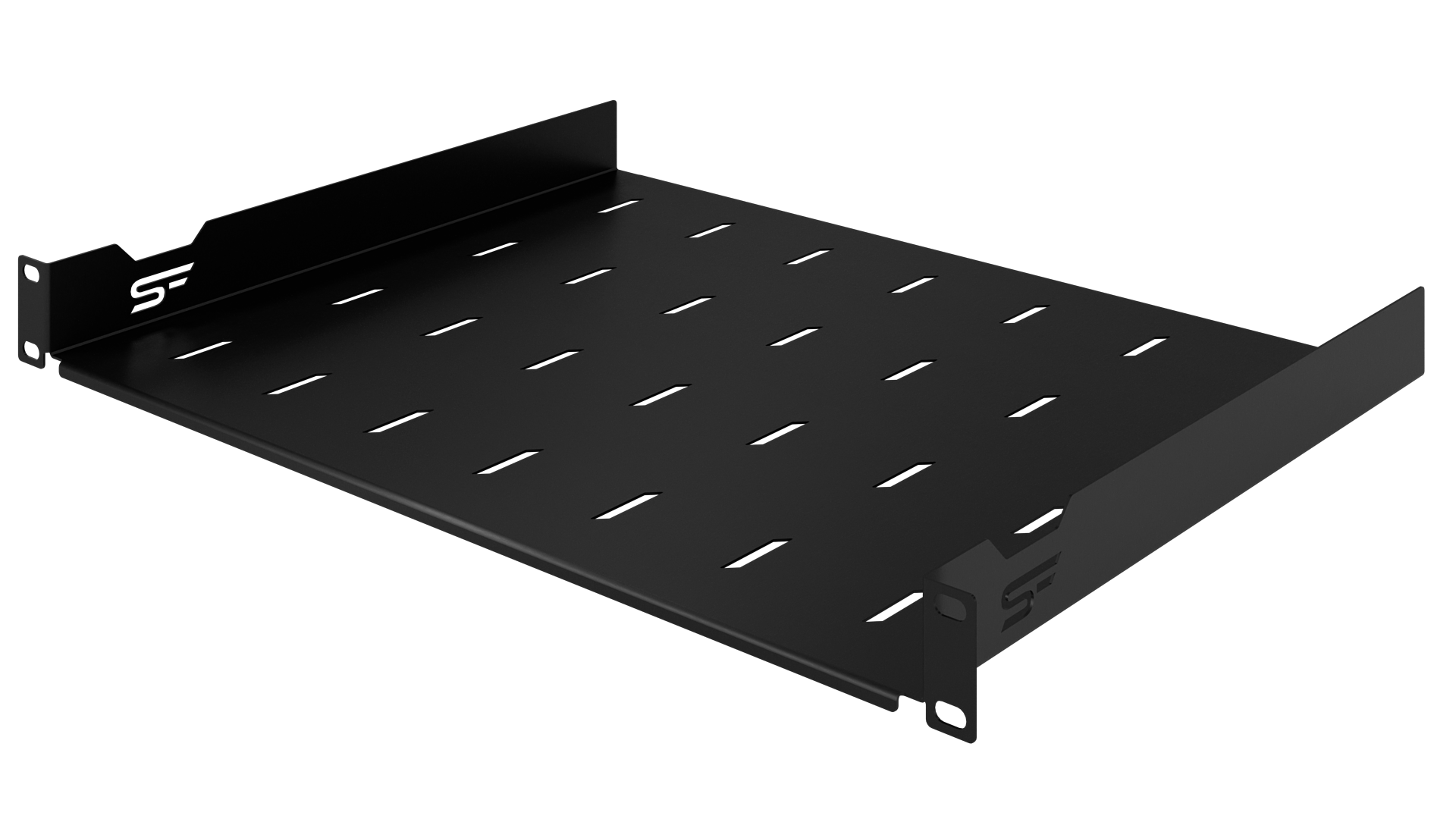

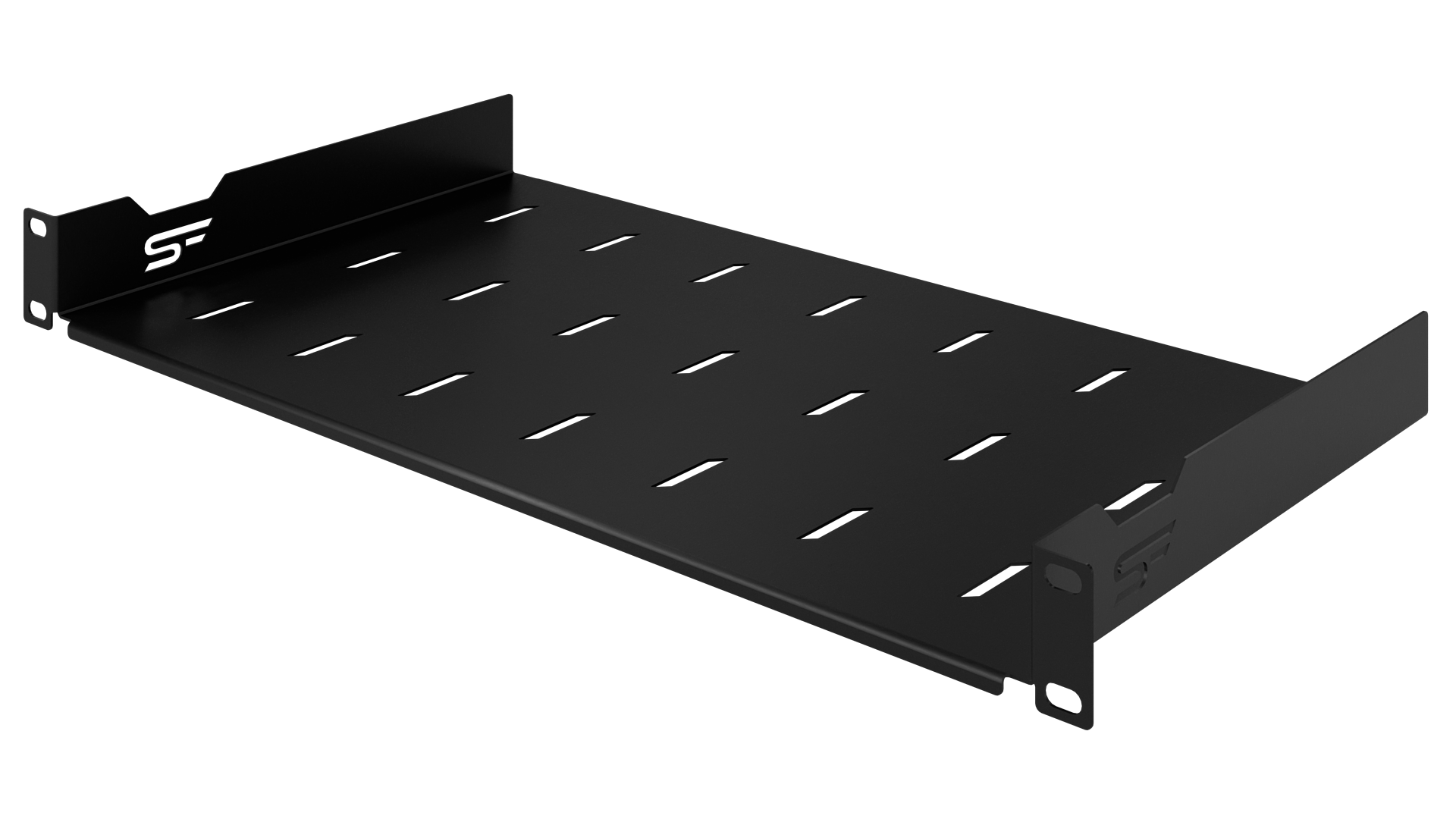

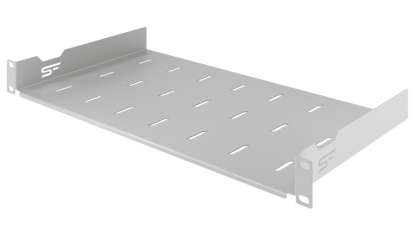

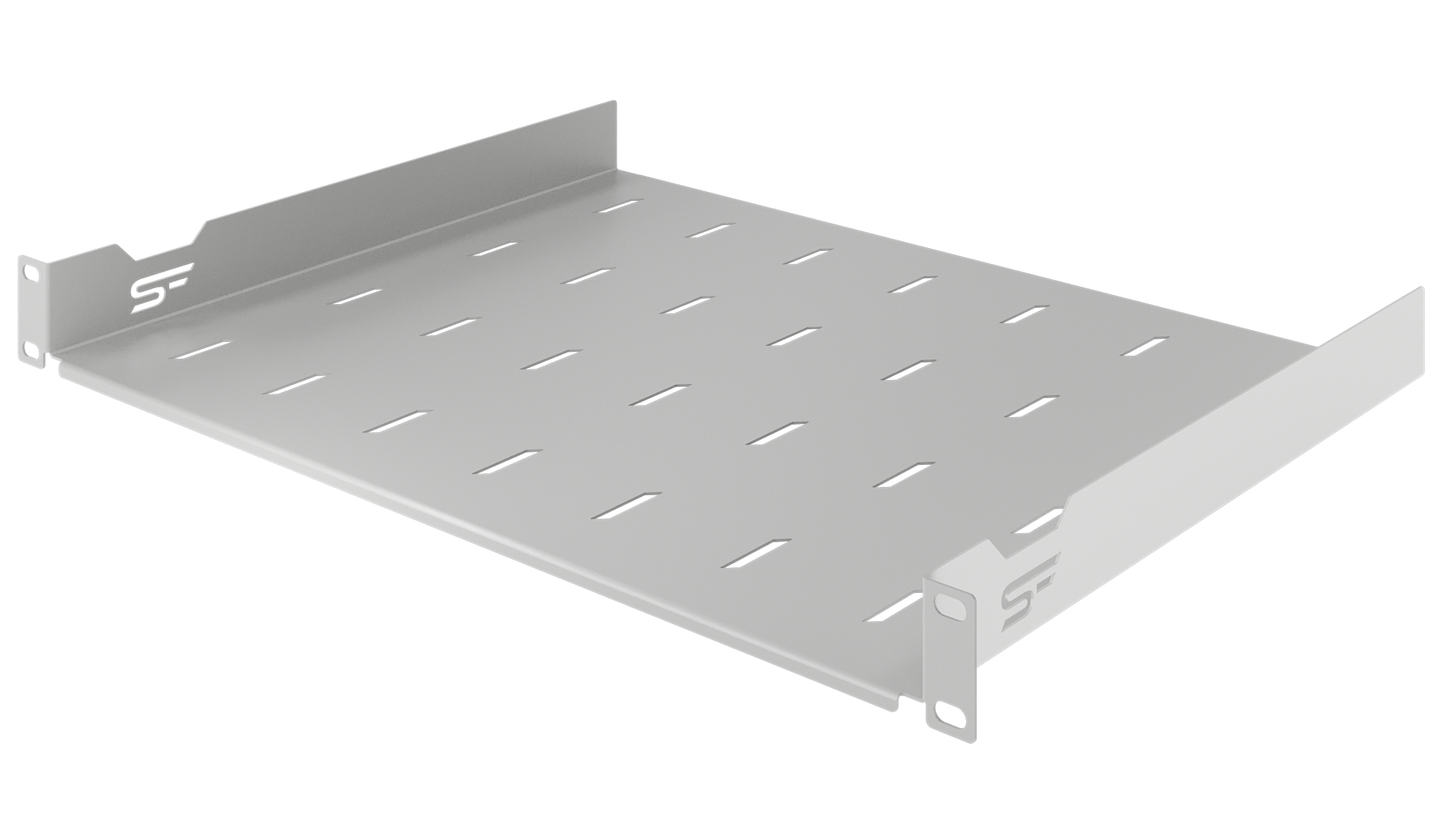

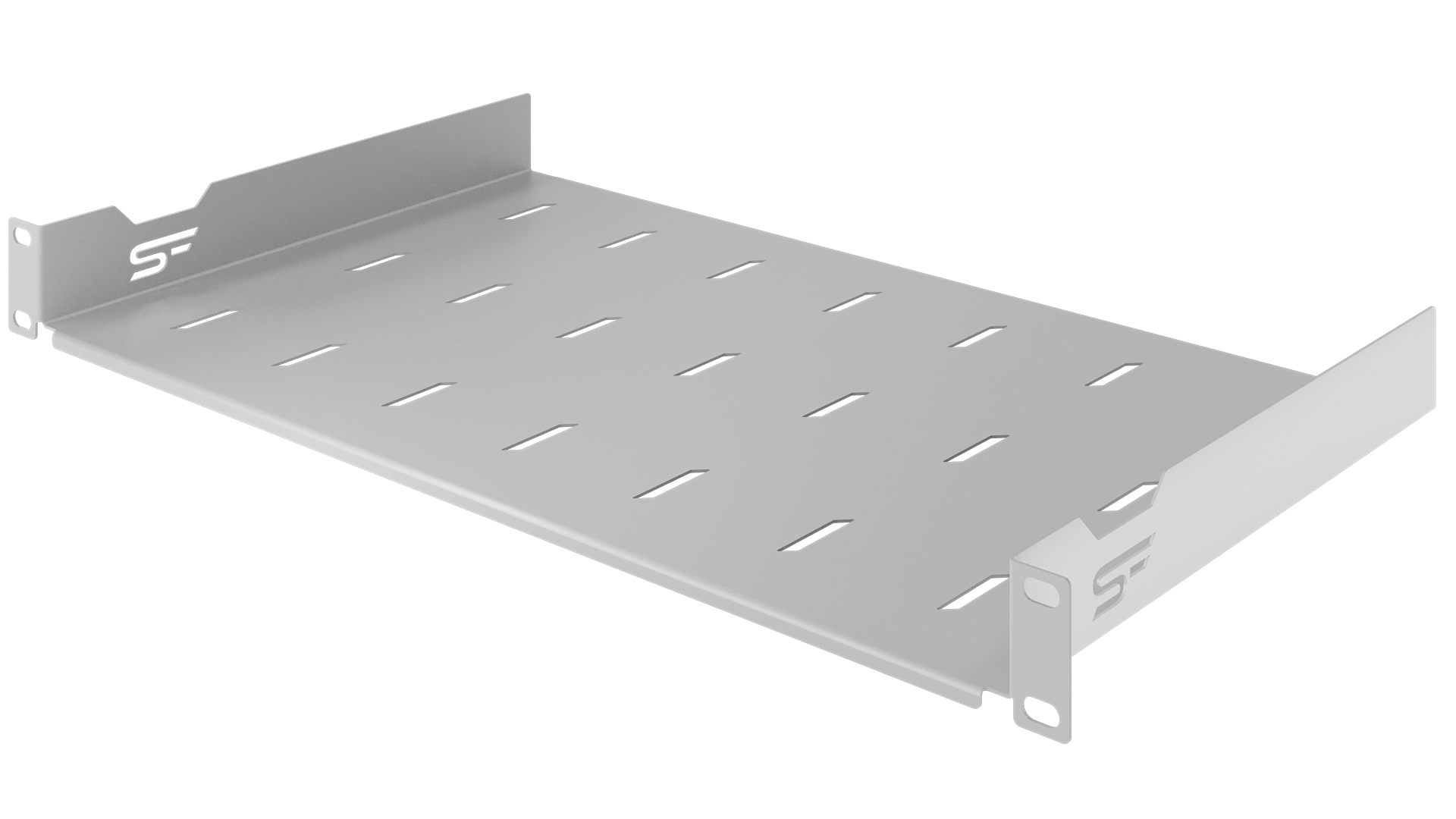

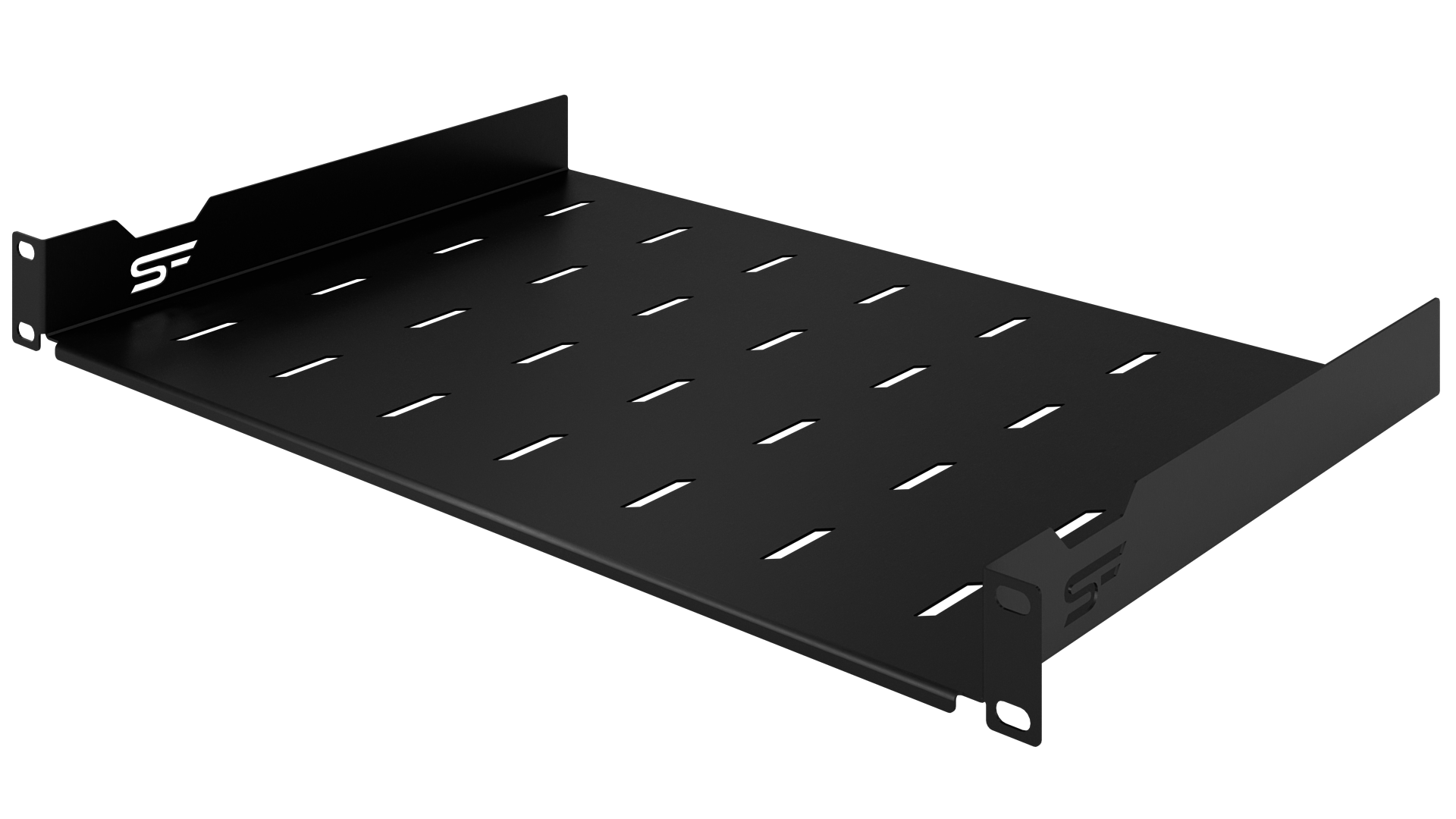

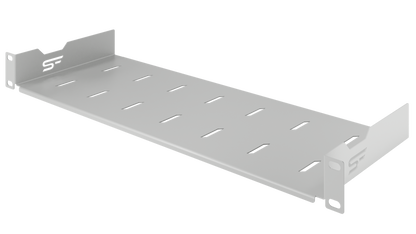

• Elegant cutouts (Standard & Professional)

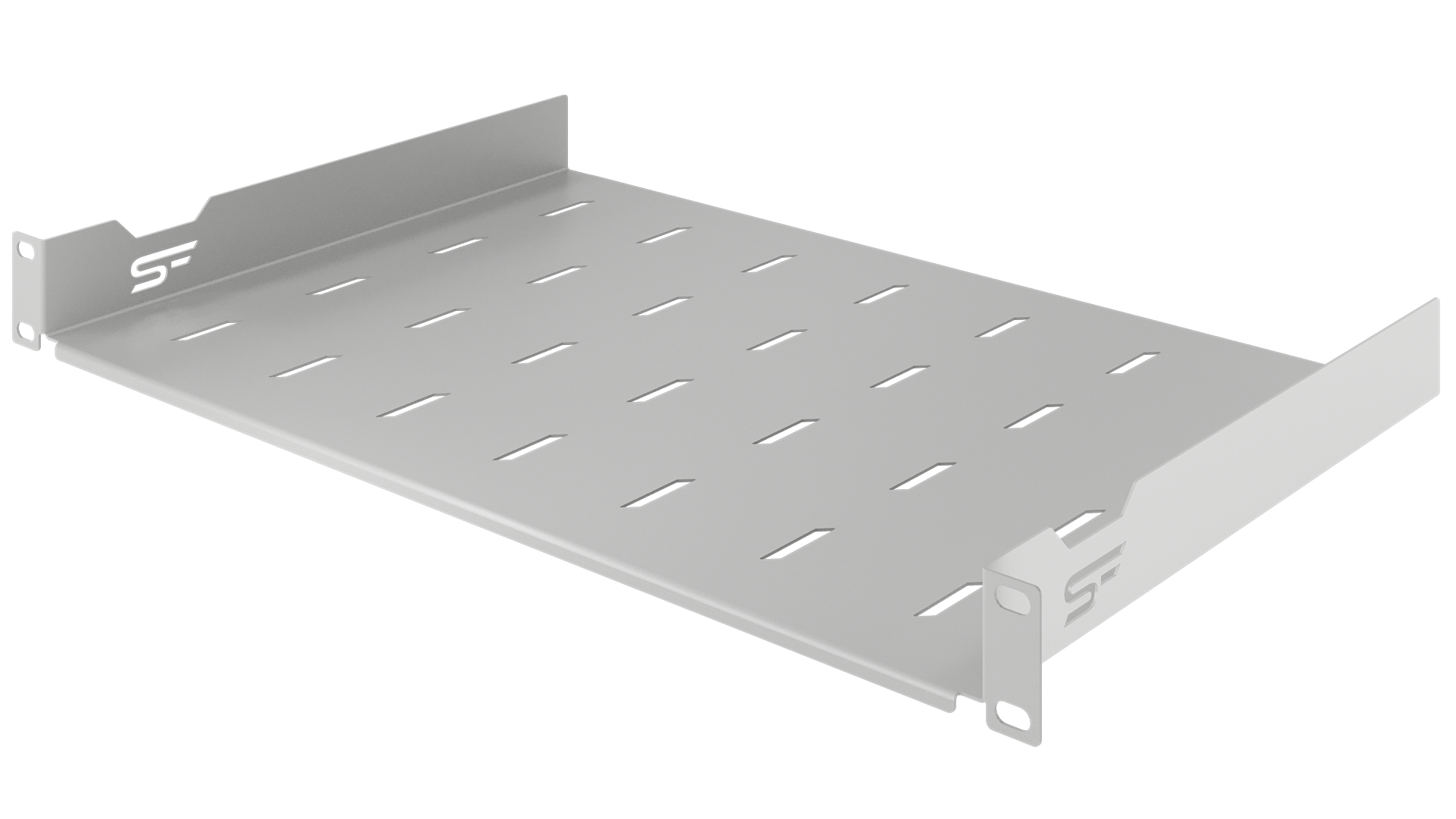

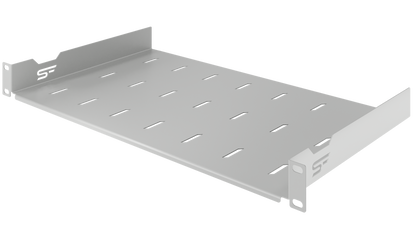

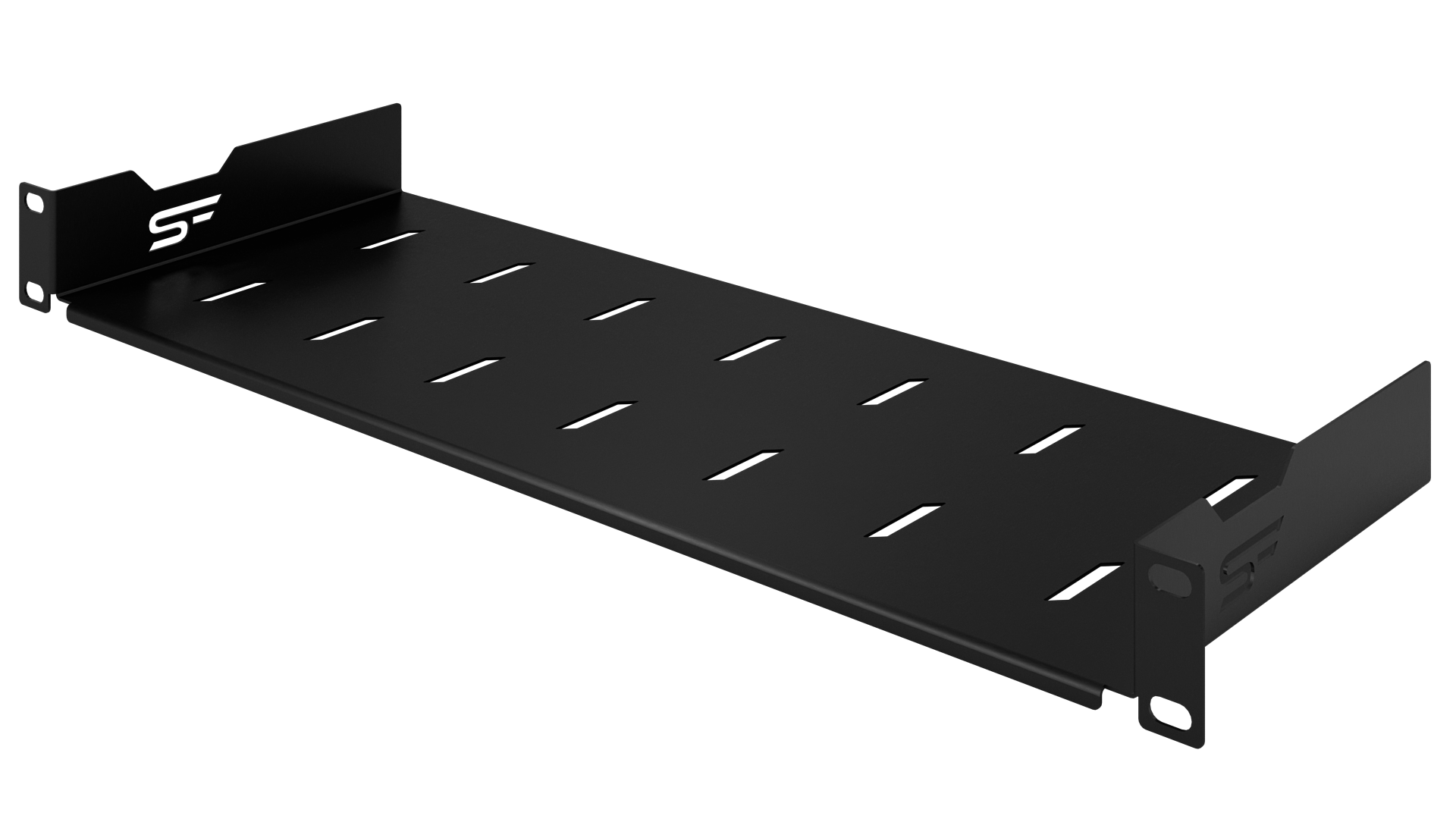

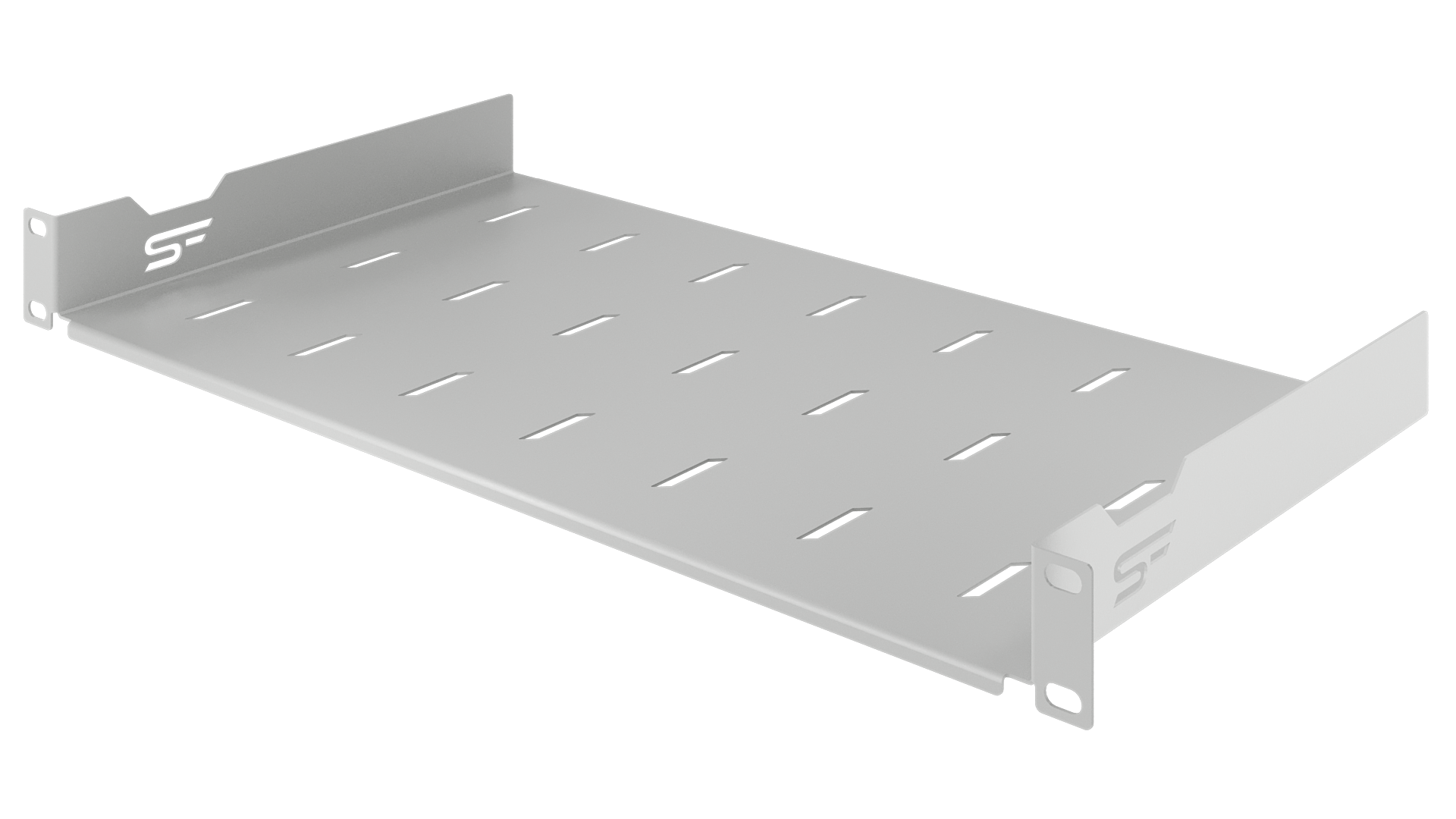

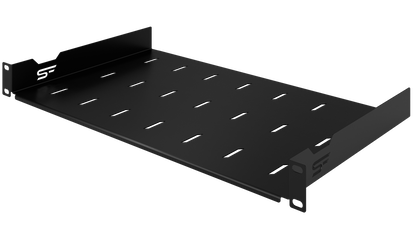

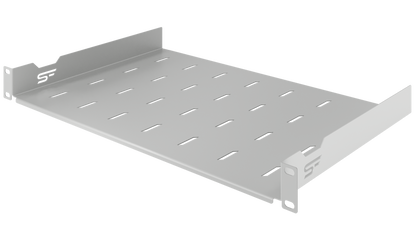

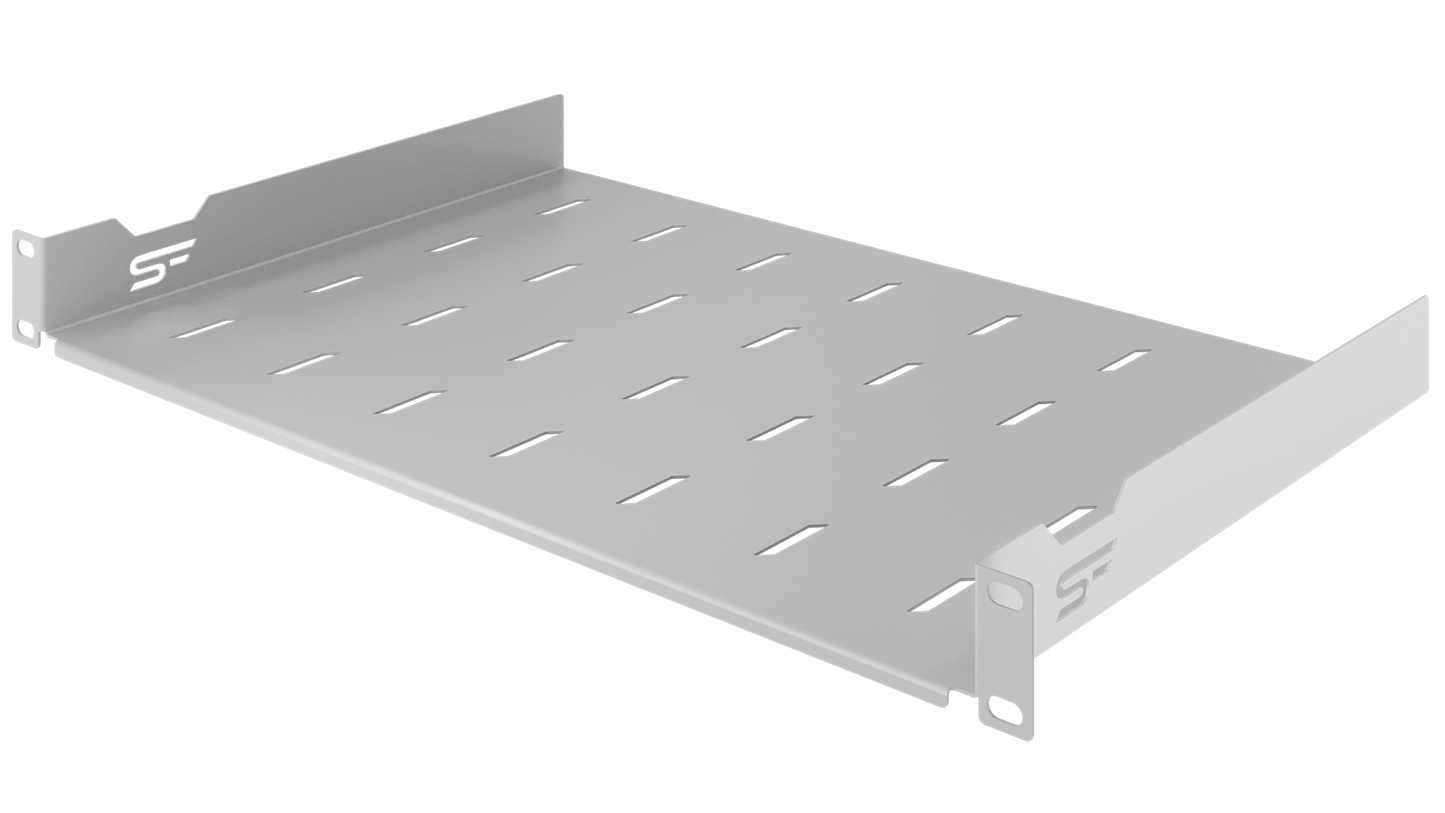

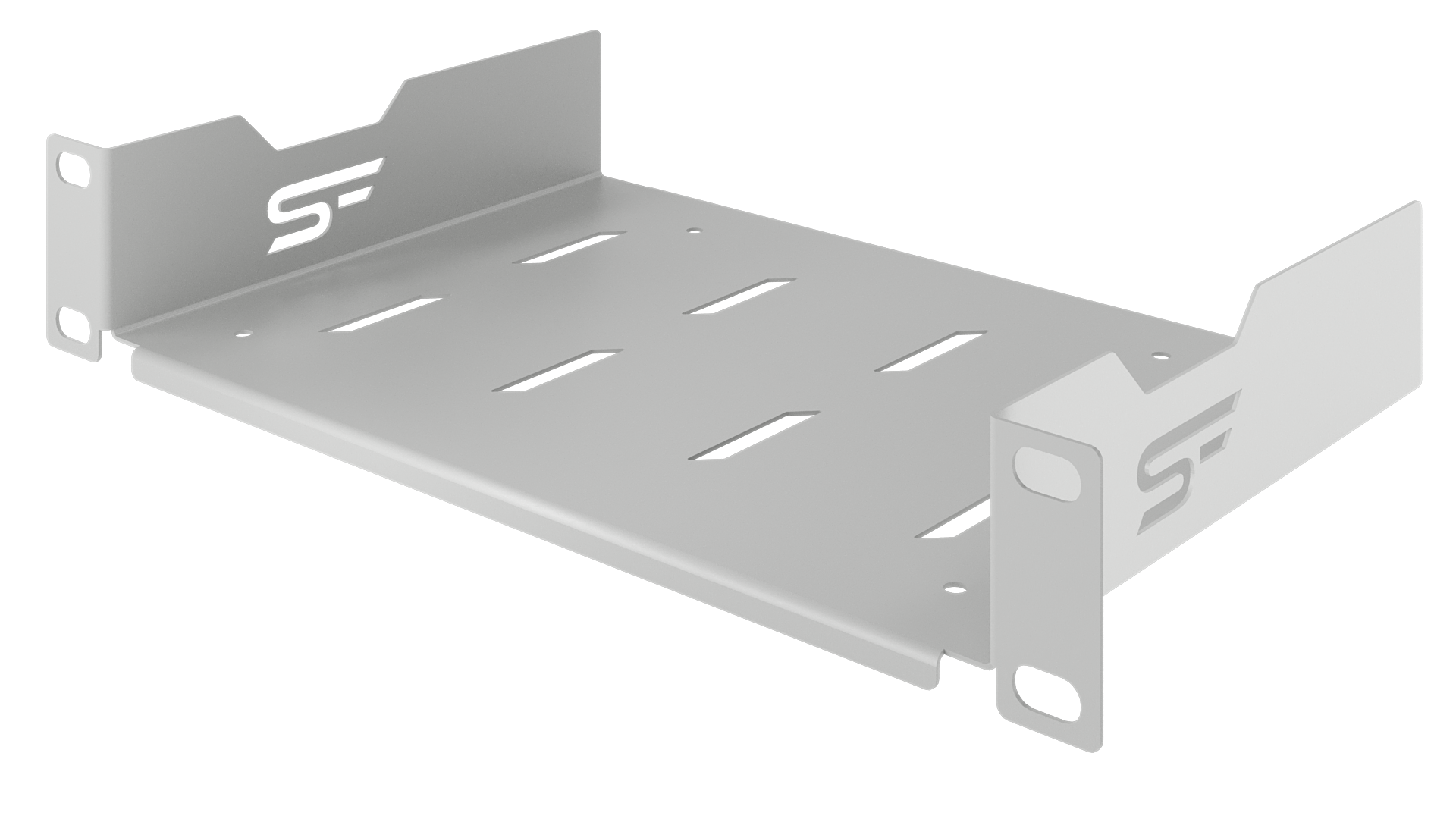

The Standard version features designer cutouts, including the “SF” logo, that enhance visual appeal and airflow. The Professional version incorporates decorative hole patterns that support aesthetics and versatile device mounting.

• Stiffening Bend (Standard)

The downward bent edge increases the rigidity of the shelf for added support and strength.

• Pre-holding system (Professional)

Enables a one-person installation by temporarily holding the shelf in place on the rails before final attachment with screws.

• Versatile Mounting (Standard)

Can be mounted upside down for increased flexibility and installation options.

• FREE mounting kit

• Eco & Standard: Four M6 screws with cages and washers

• Professional: Two M6 screws with cages and washers

• Safe delivery and solid product packaging

Each shelf is carefully packed in a strong, three-layer cardboard box to prevent damage during transport. We cooperate with a trusted courier company to ensure timely and secure delivery.

Application:

The 1U universal shelf fits all wall-mounted and floor-standing cabinets, as well as all types of 19” frames, making it a versatile solution for a wide range of RACK cabinet configurations. It is designed for indoor use and supports installations in networking, server, AV, telecom, and industrial environments.

Version Breakdown:

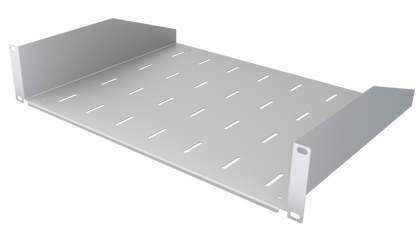

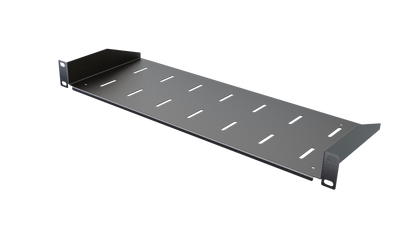

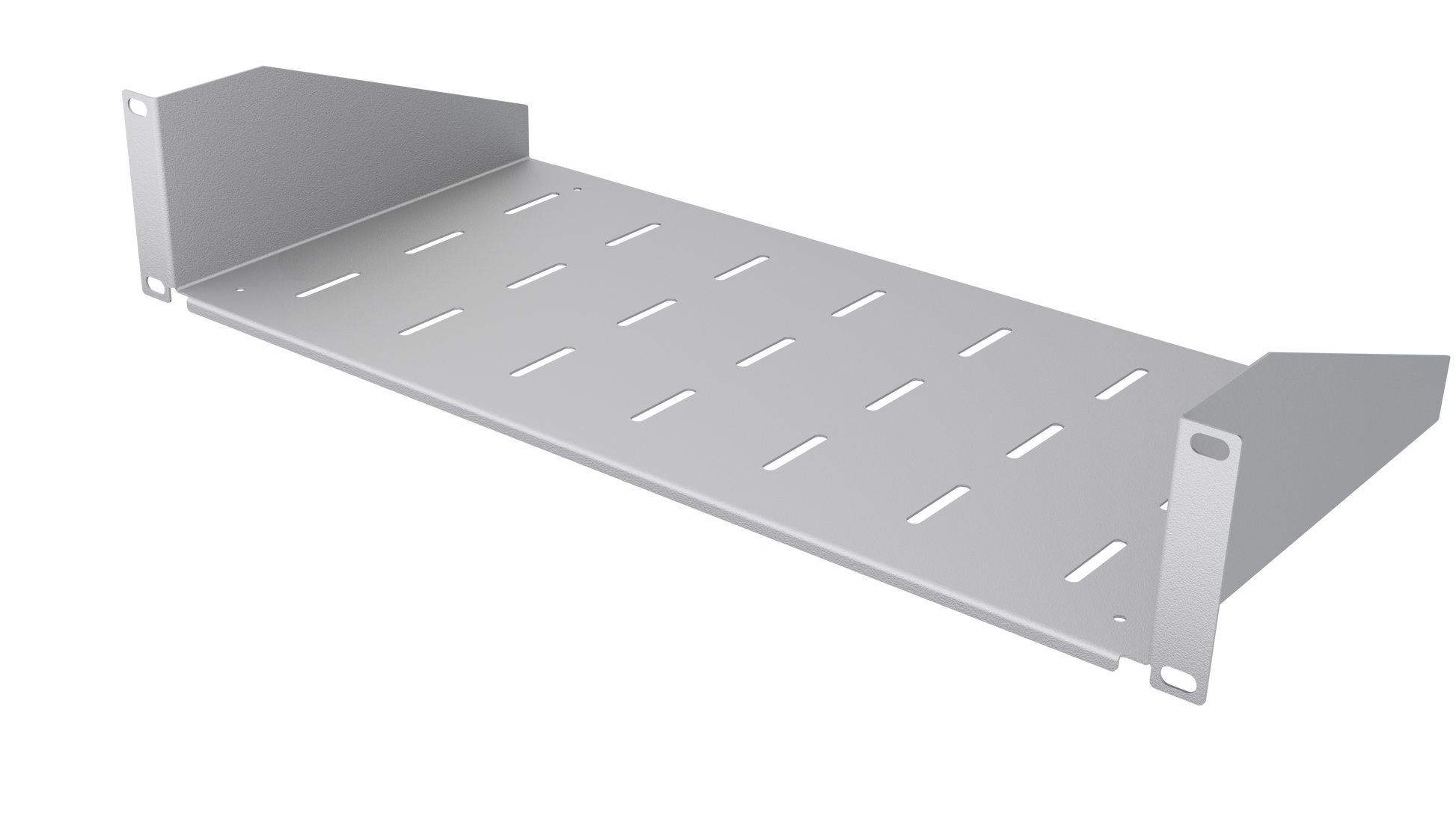

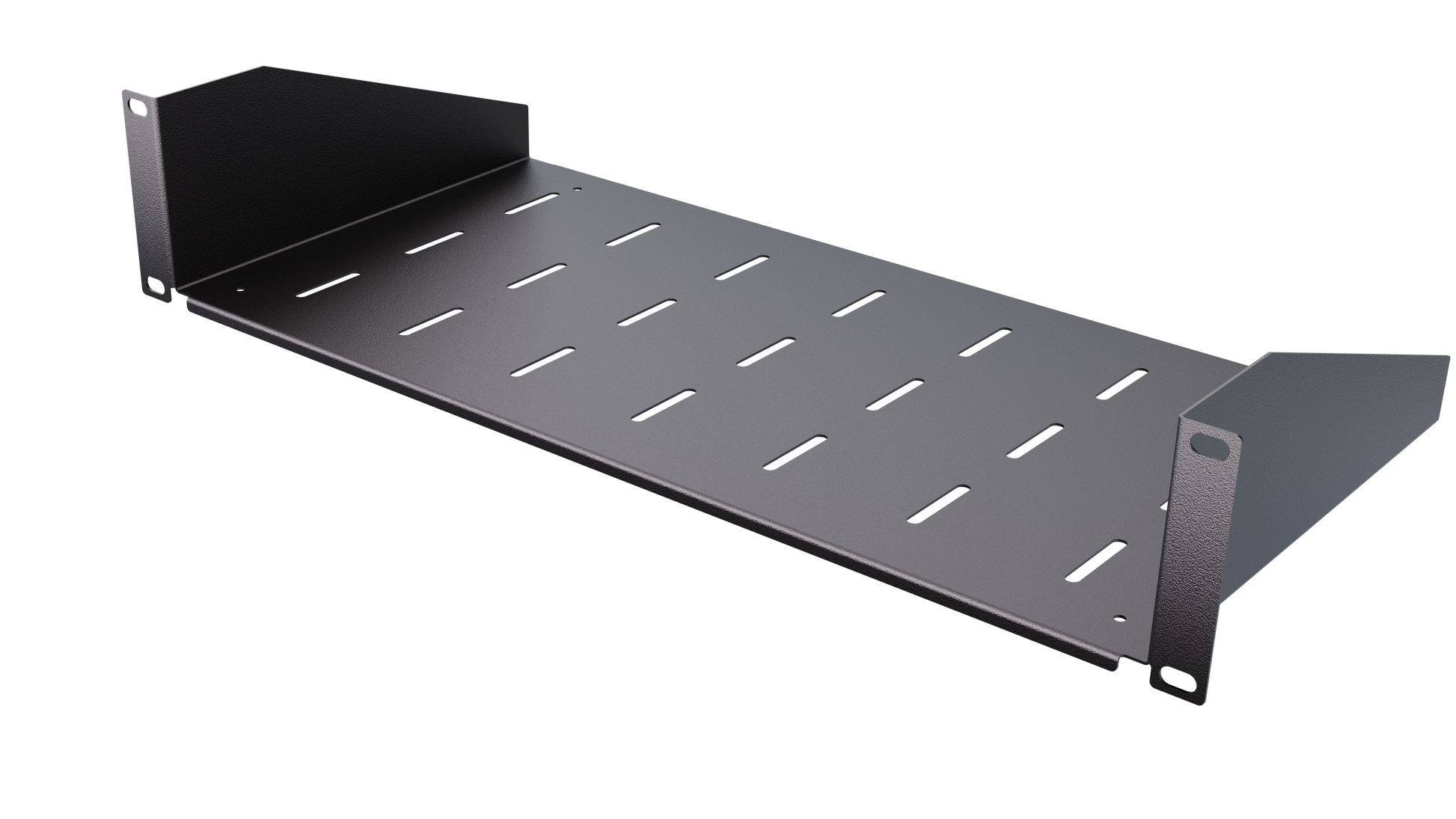

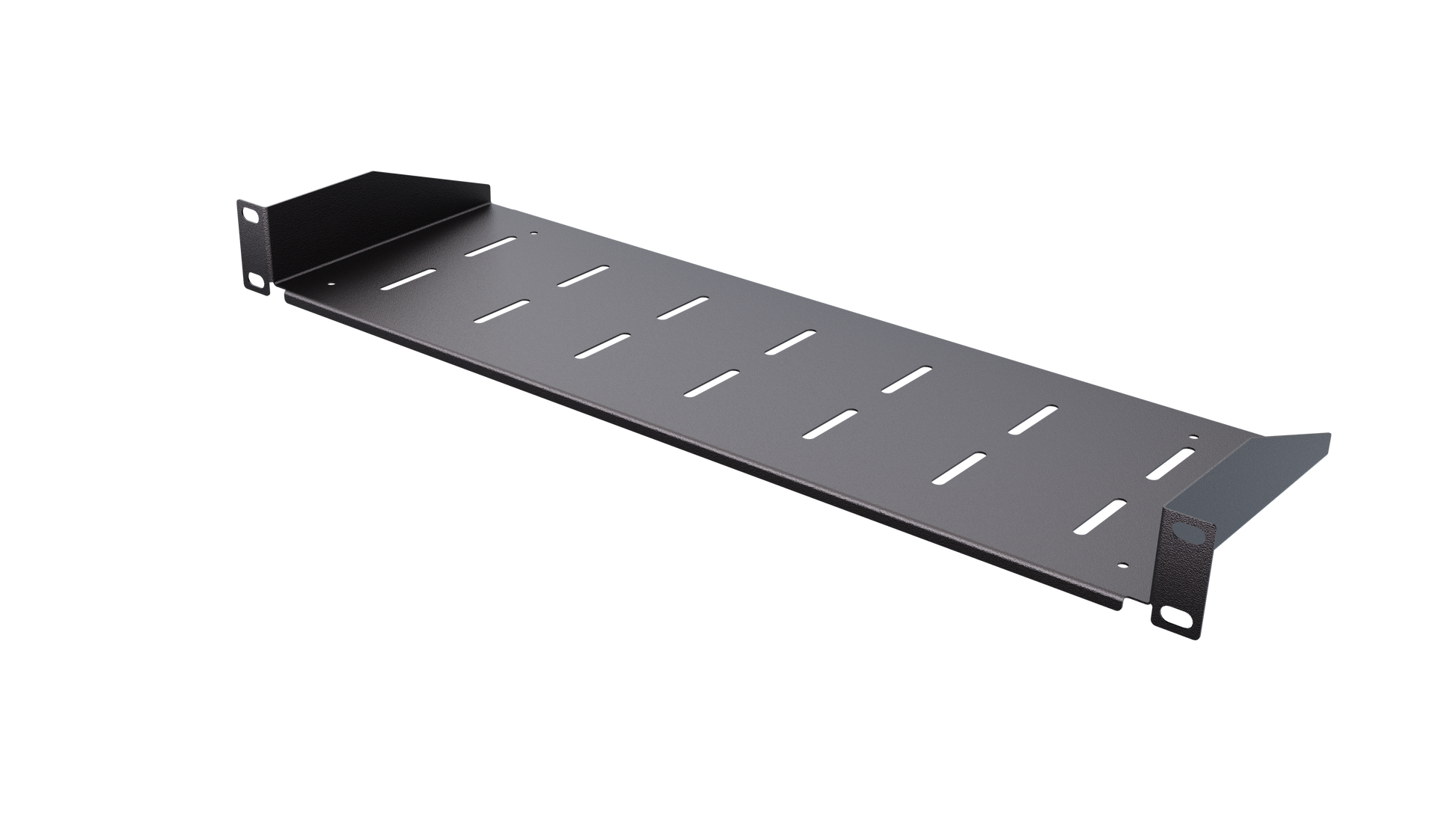

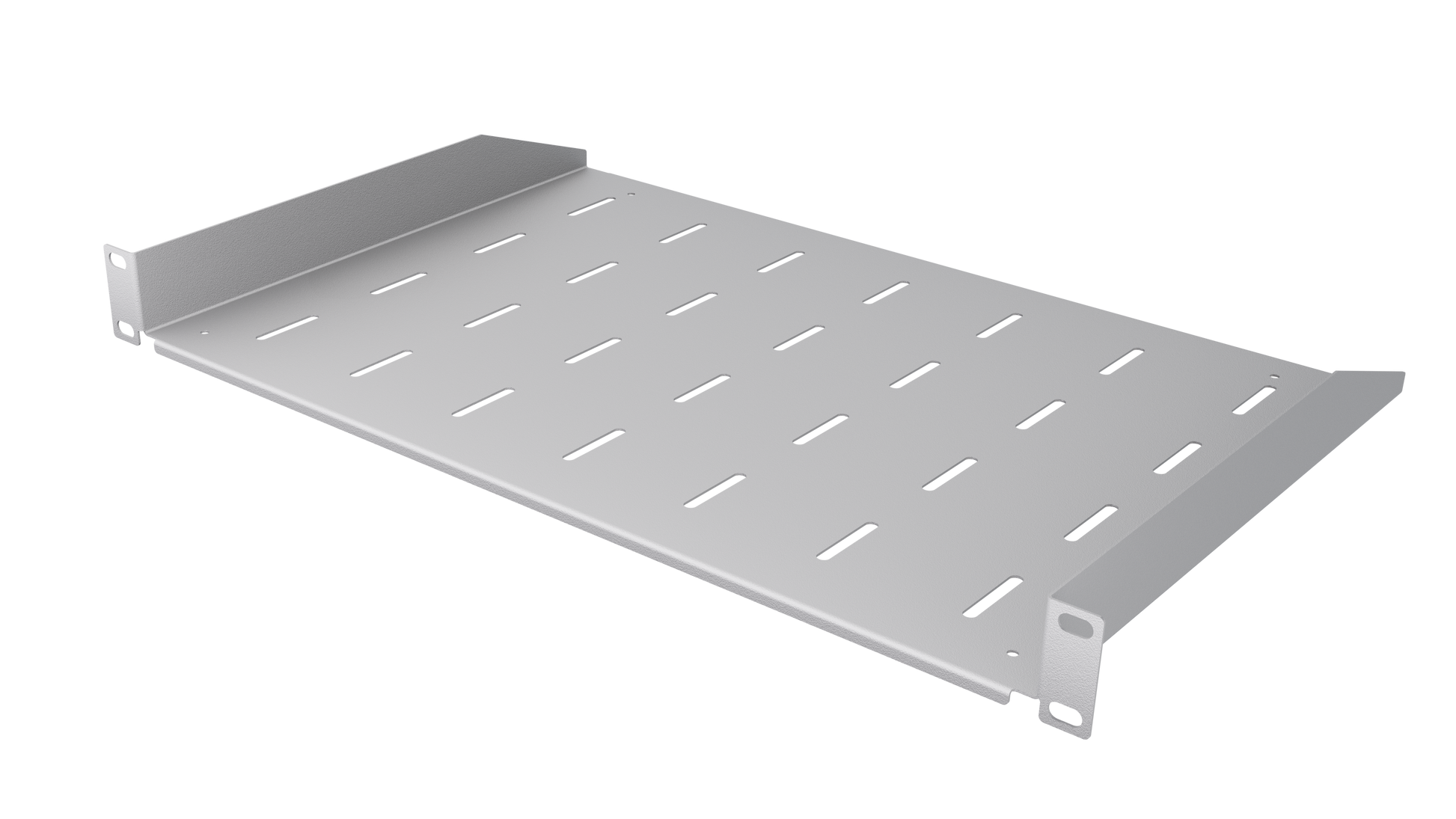

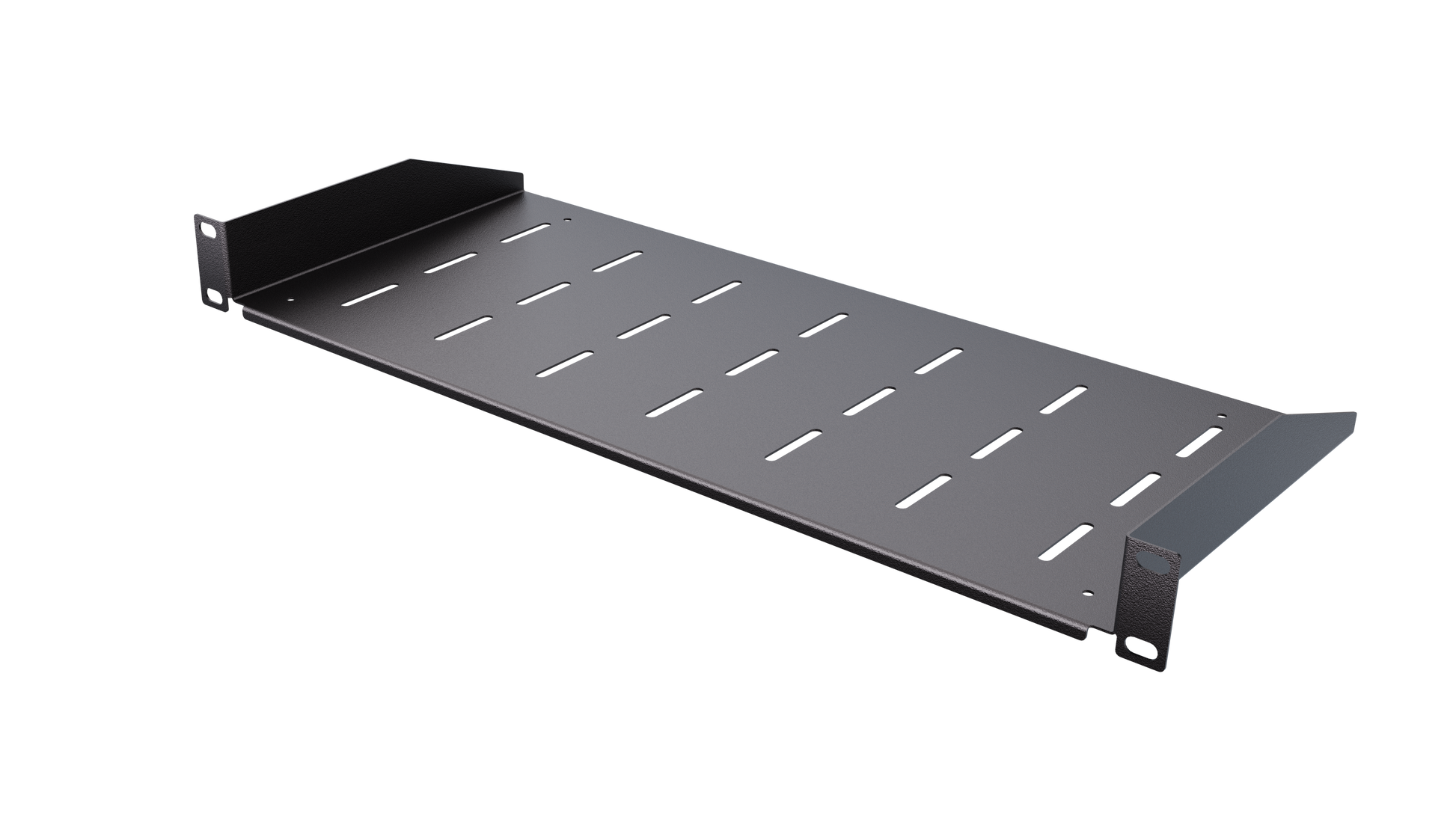

• Economy Version (Eco)

A budget-friendly option with essential features and solid construction. Offers excellent value for users seeking reliable yet affordable RACK accessories.

• Standard Version

Combines durability with a refined design. Ideal for users who want enhanced aesthetics, rigidity, and mounting flexibility at a great price-performance ratio.

• Professional Version

Tailored for advanced and demanding setups. Features pre-hold installation, elegant design, and optimised functionality—perfect for professional environments where both form and function matter.
