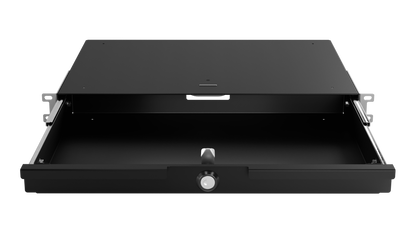

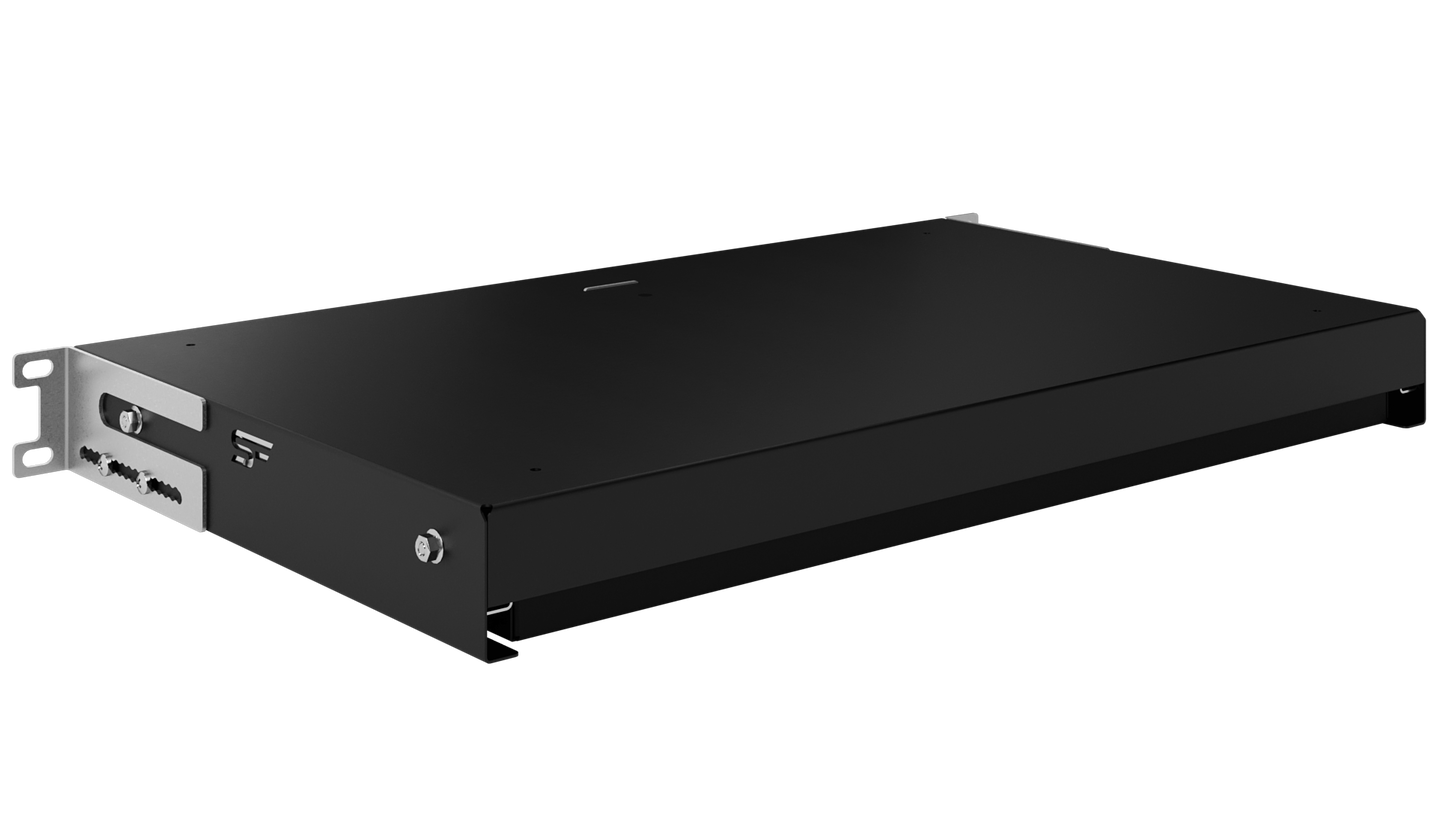

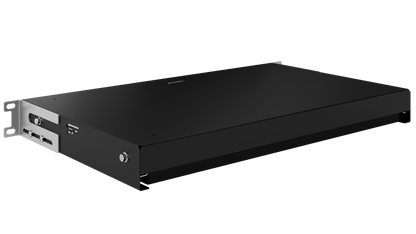

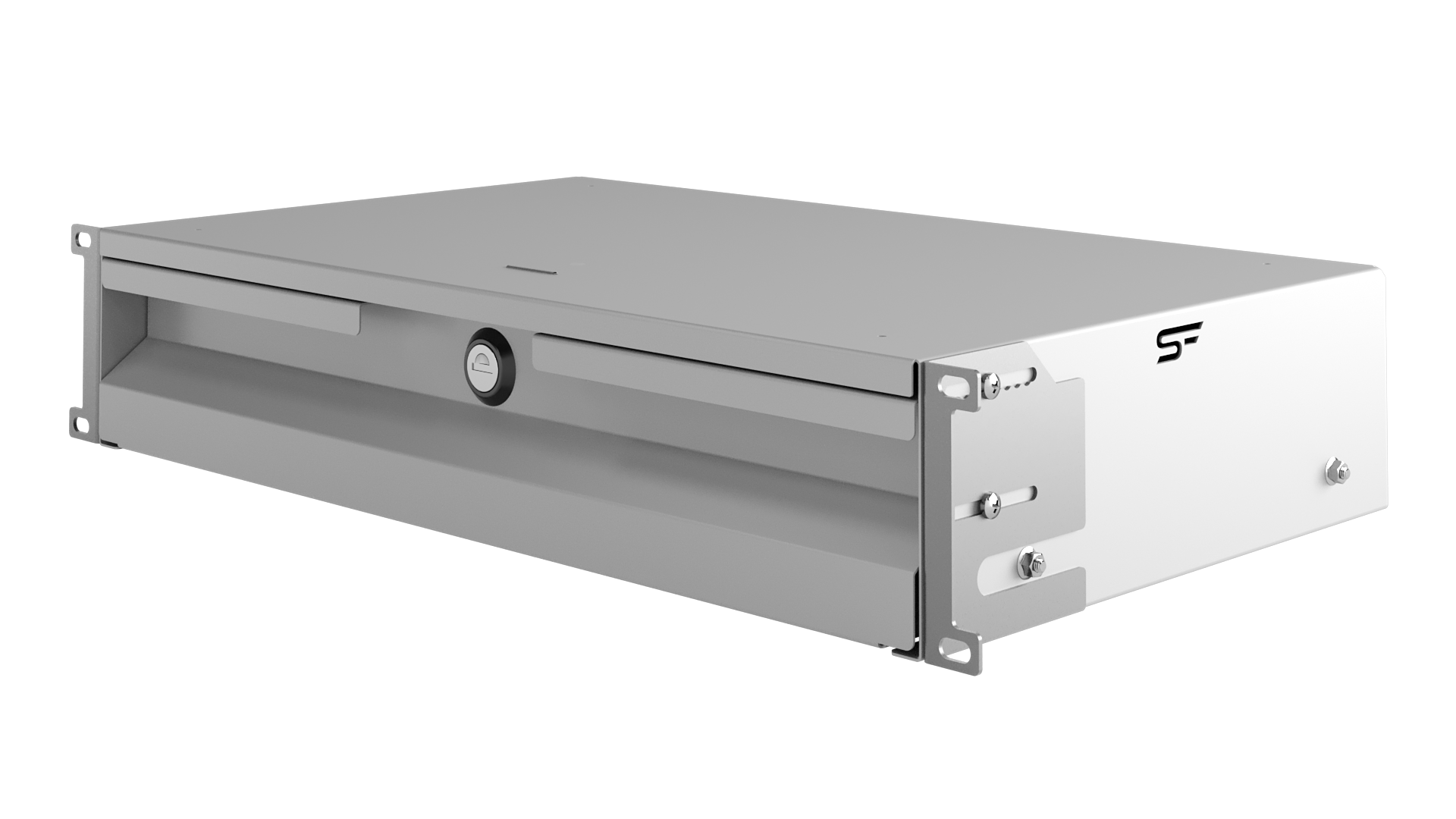

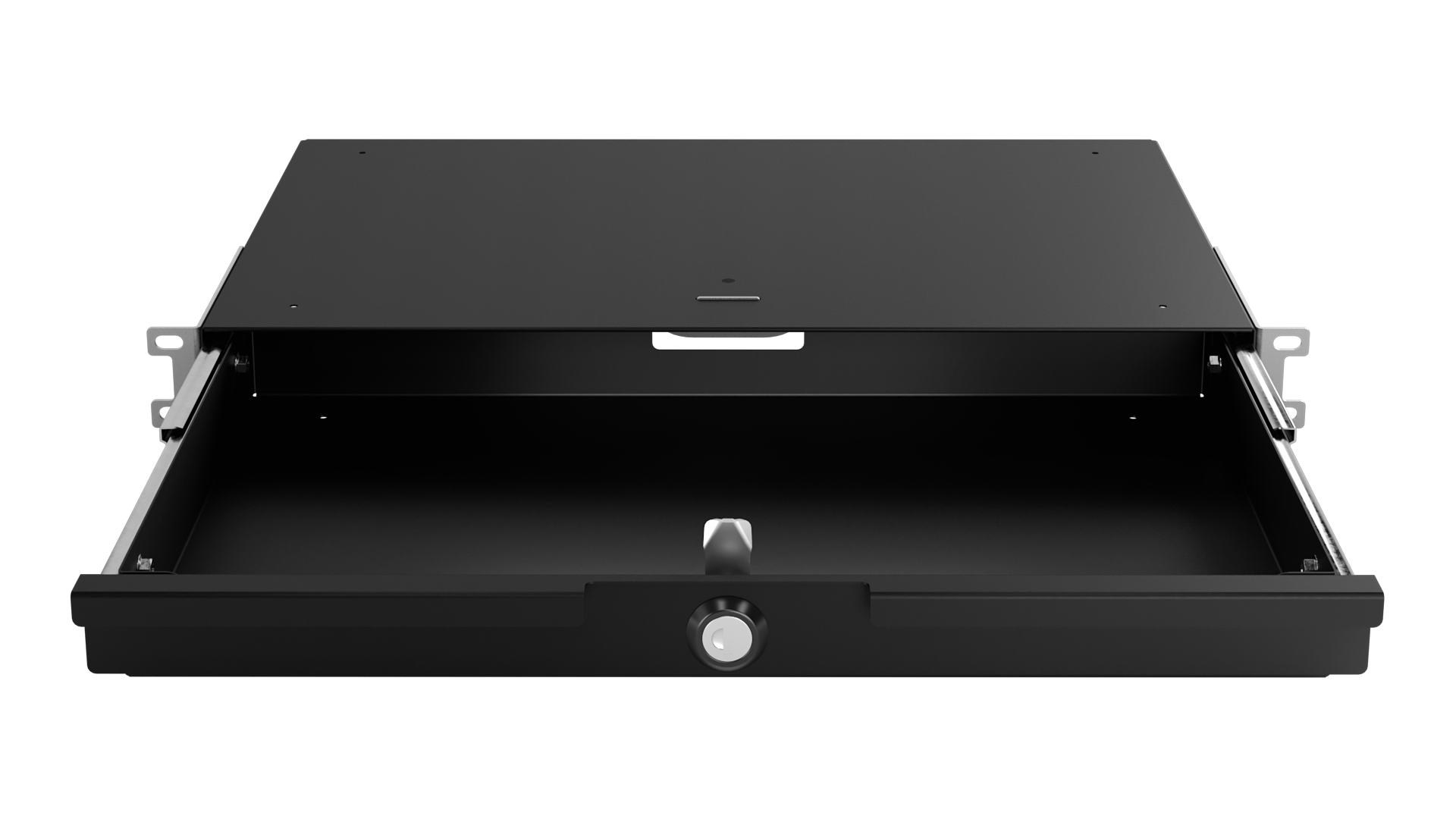

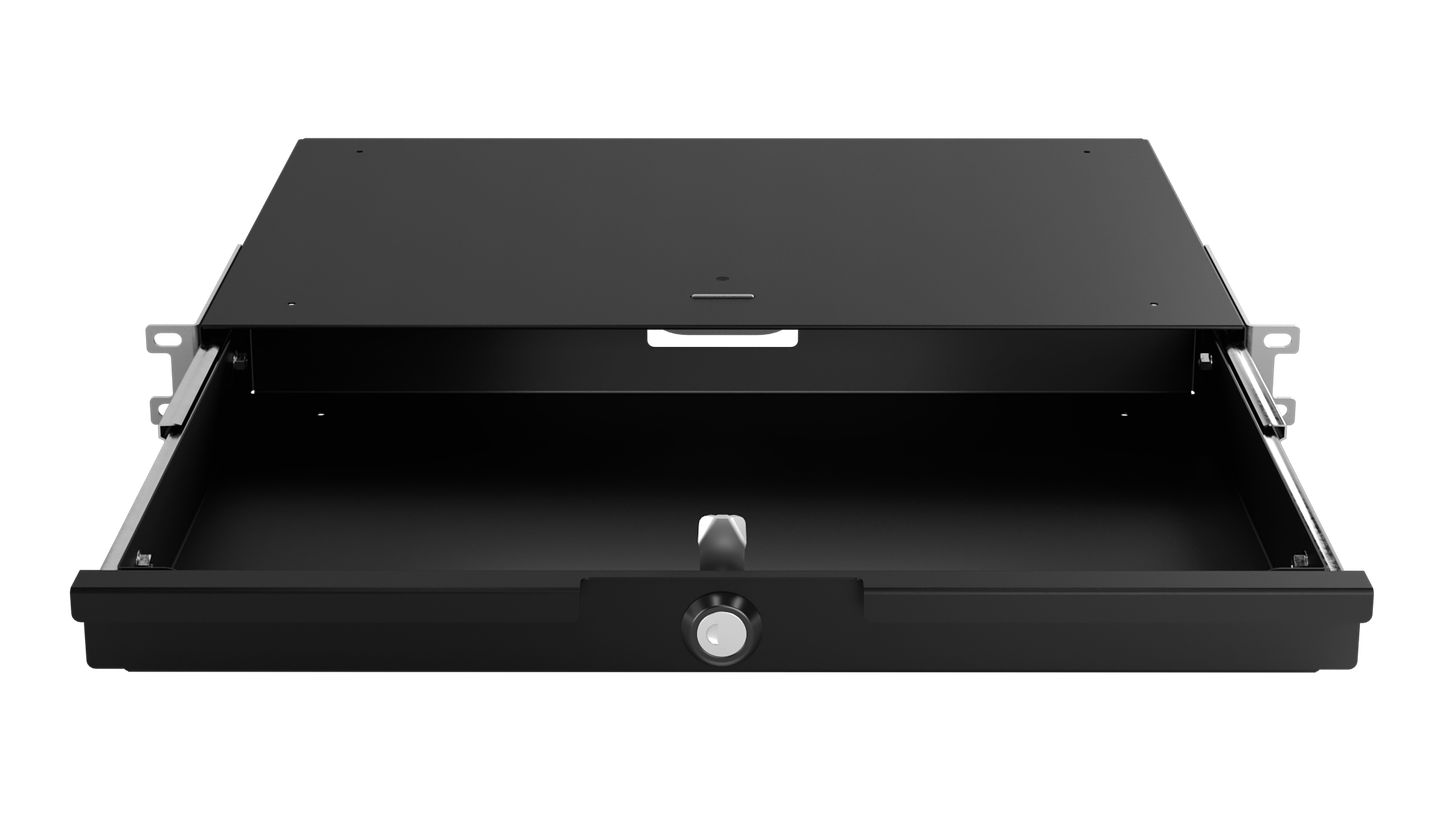

Stalflex 19" Rack Mount Drawer are a new generation product, designed for maximum functionality, security and convenience. Ideally suited to cabinets and all types of 19" rack frames, it offers optimum organisation for storing the variety of connectors, plugs, tools and documentation you need to keep close at hand at all times.

Made from high quality sheet steel approximately 1 mm thick and RACK handles made from thick 1.5 mm galvanised sheet metal, the 19" RACK drawer features exceptional durability and strength, ensuring long-lasting use in demanding environments.

With its robust, reinforced lock with two keys, the drawer provides a high level of security, protecting the items stored inside from unauthorised access. The reinforced lock handle further protects against accidental opening, enhancing the safety of use.

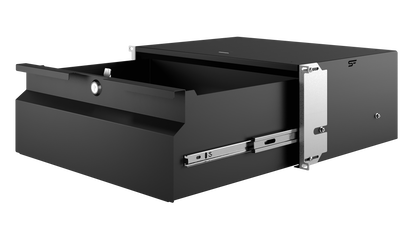

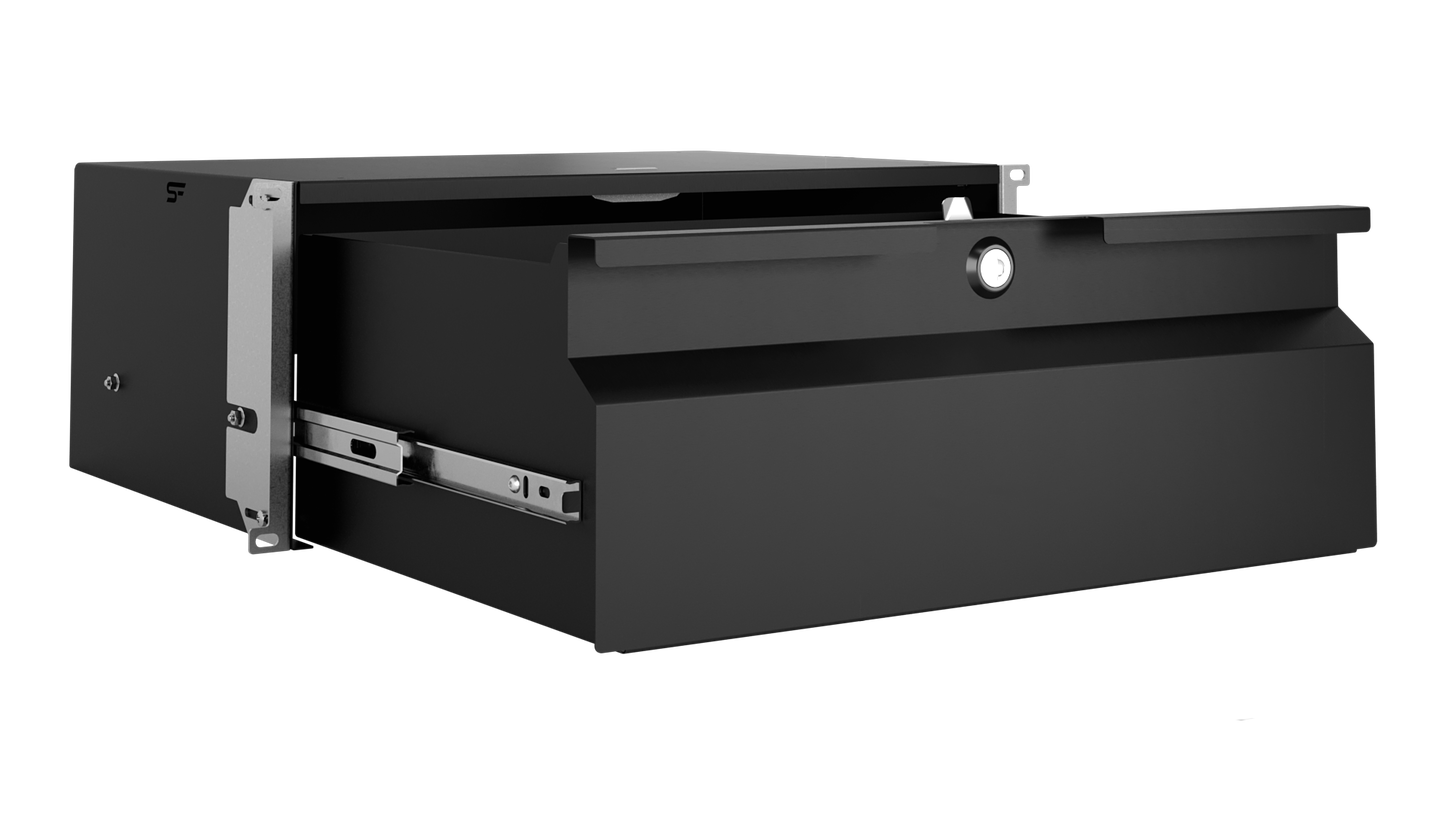

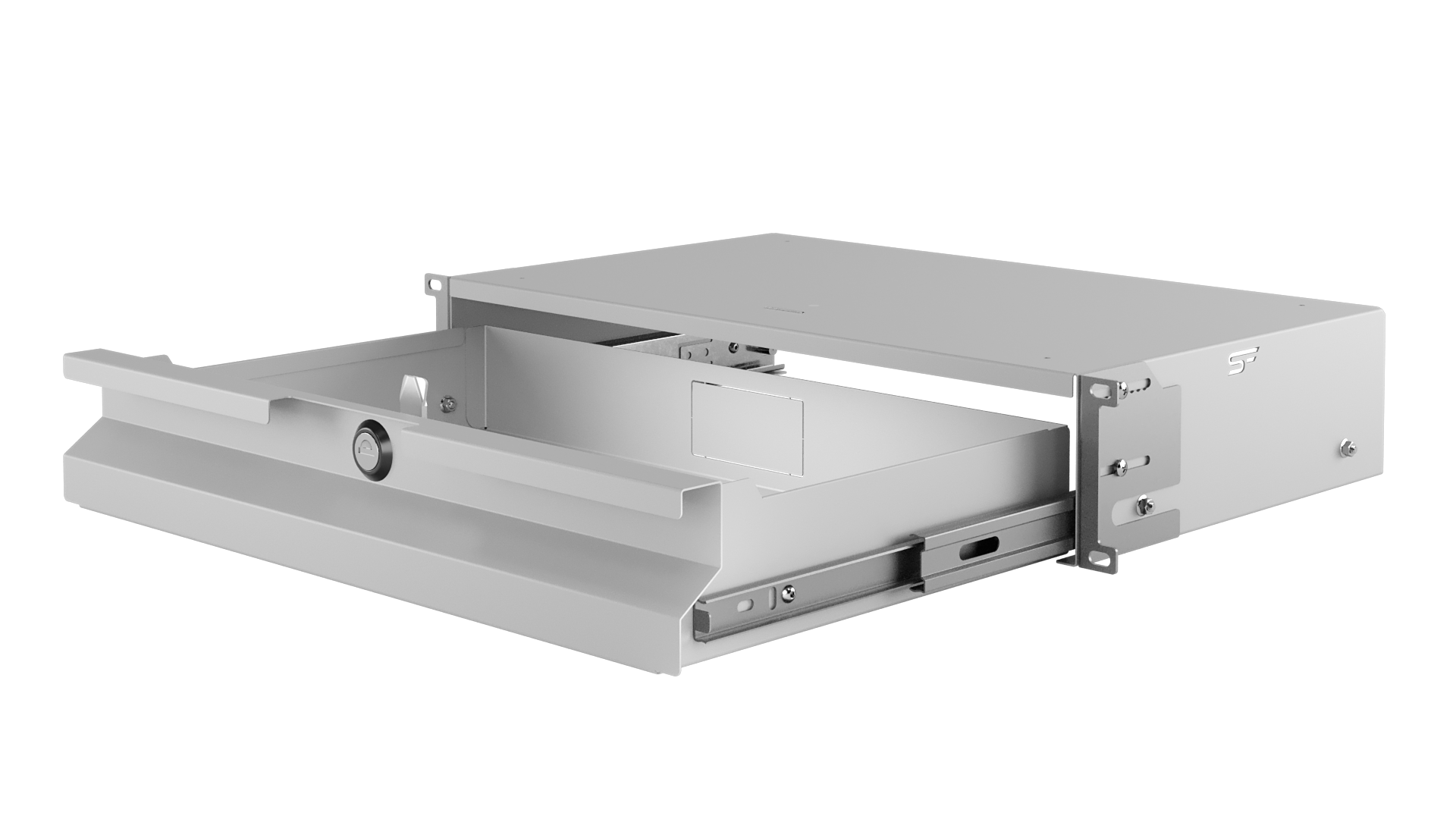

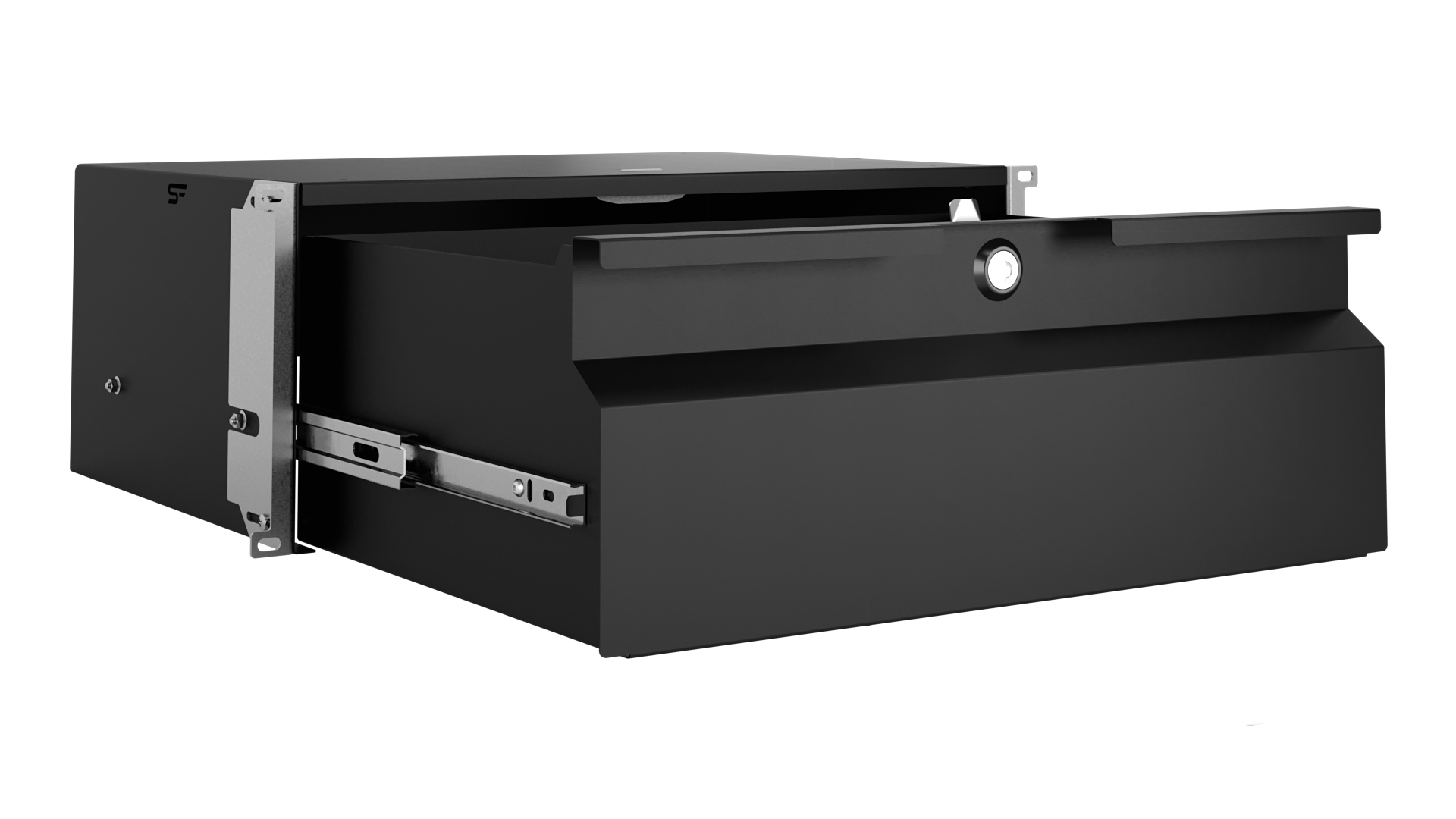

The 19" RACK drawer is equipped with an advanced ball-bearing slide system, which ensures that the drawer slides out smoothly and effortlessly, making it significantly easier to access the items stored inside.

It is worth noting the unique packaging of the product - a dedicated box made of thick cardboard, which guarantees maximum protection for the drawer during transport.

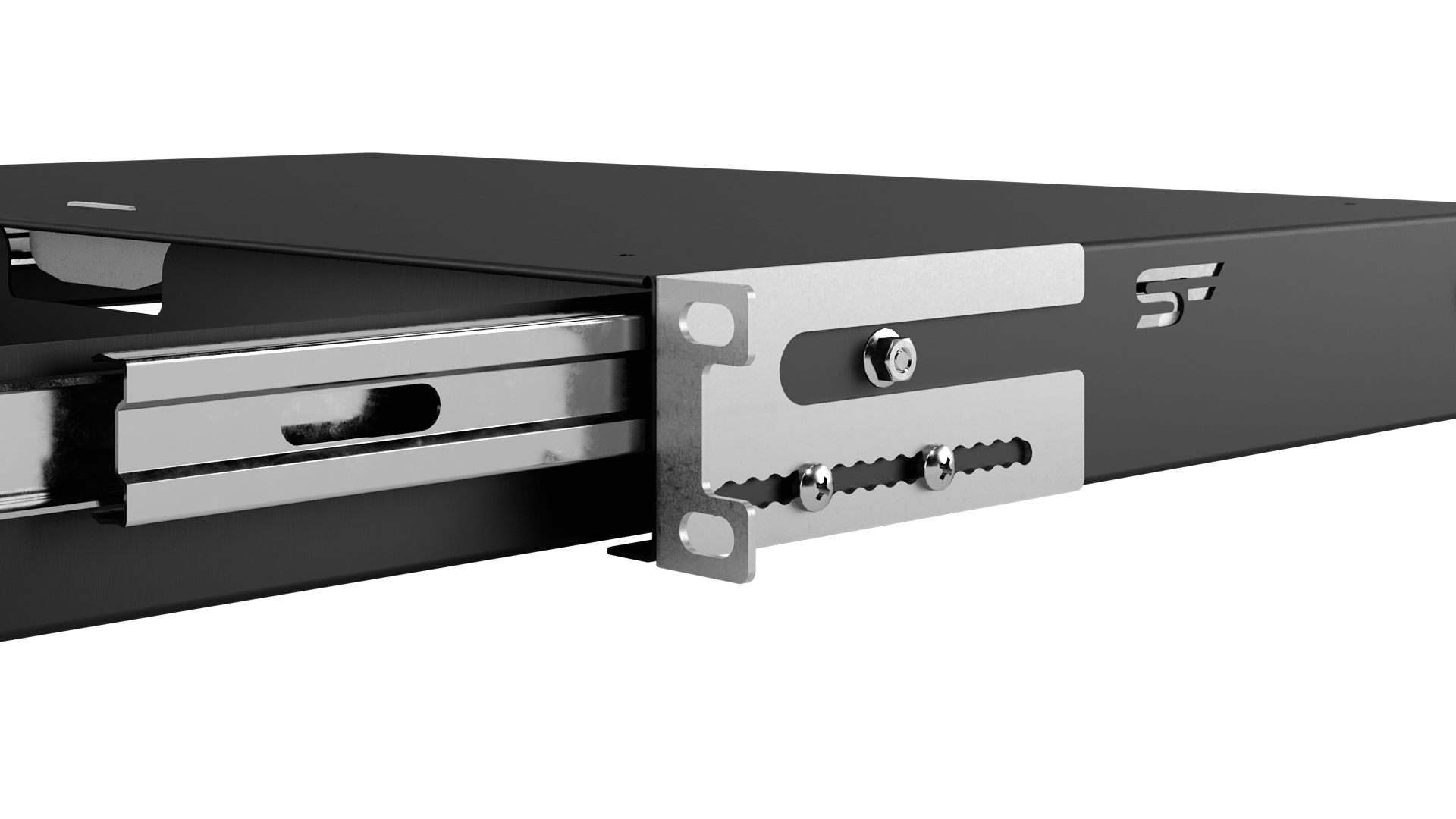

Adjustable RACK brackets allow the drawer to be pushed in by 40mm or out by 20mm relative to the RACK rail mount, allowing for flexibility to suit the cabinet configuration.

Main Product Features:

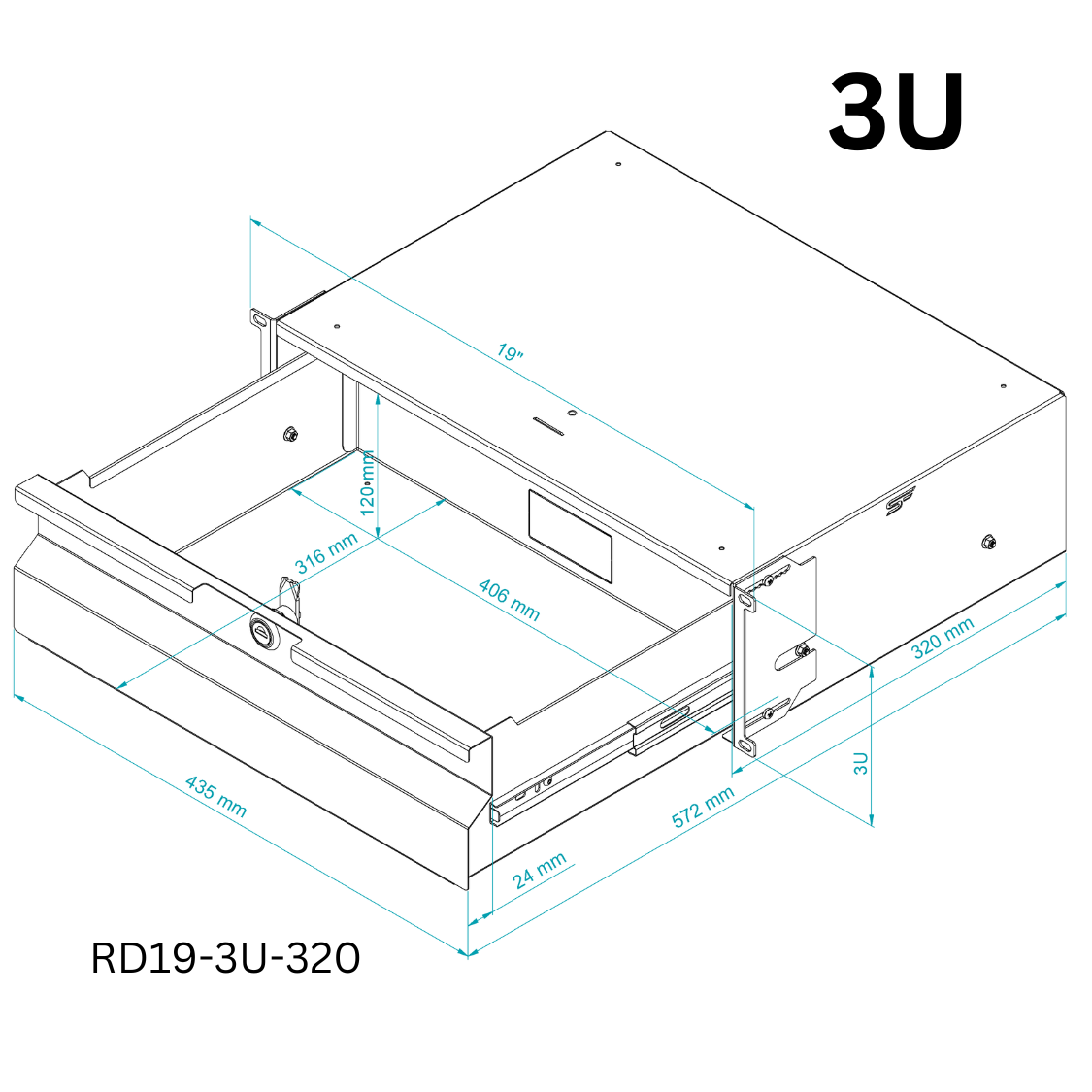

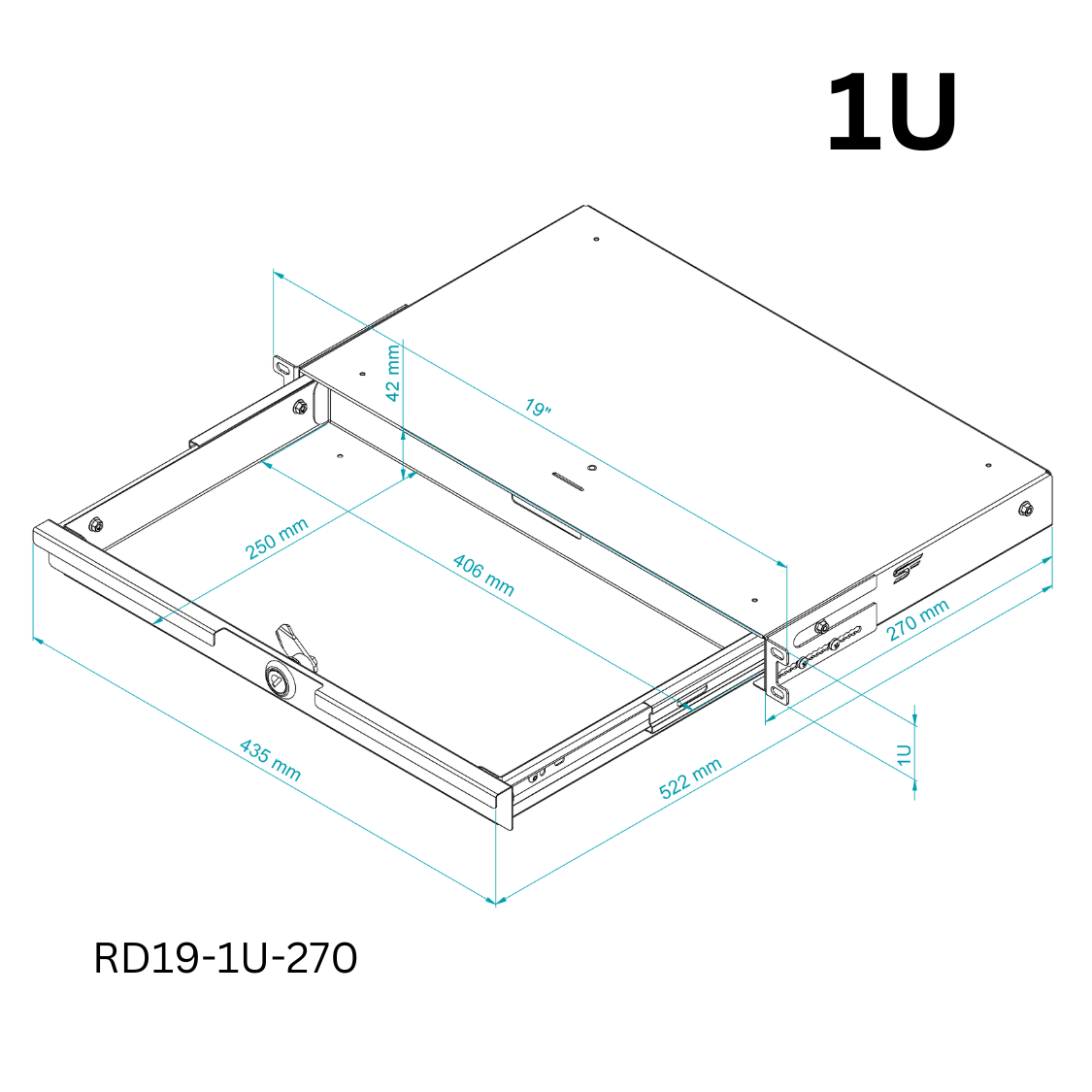

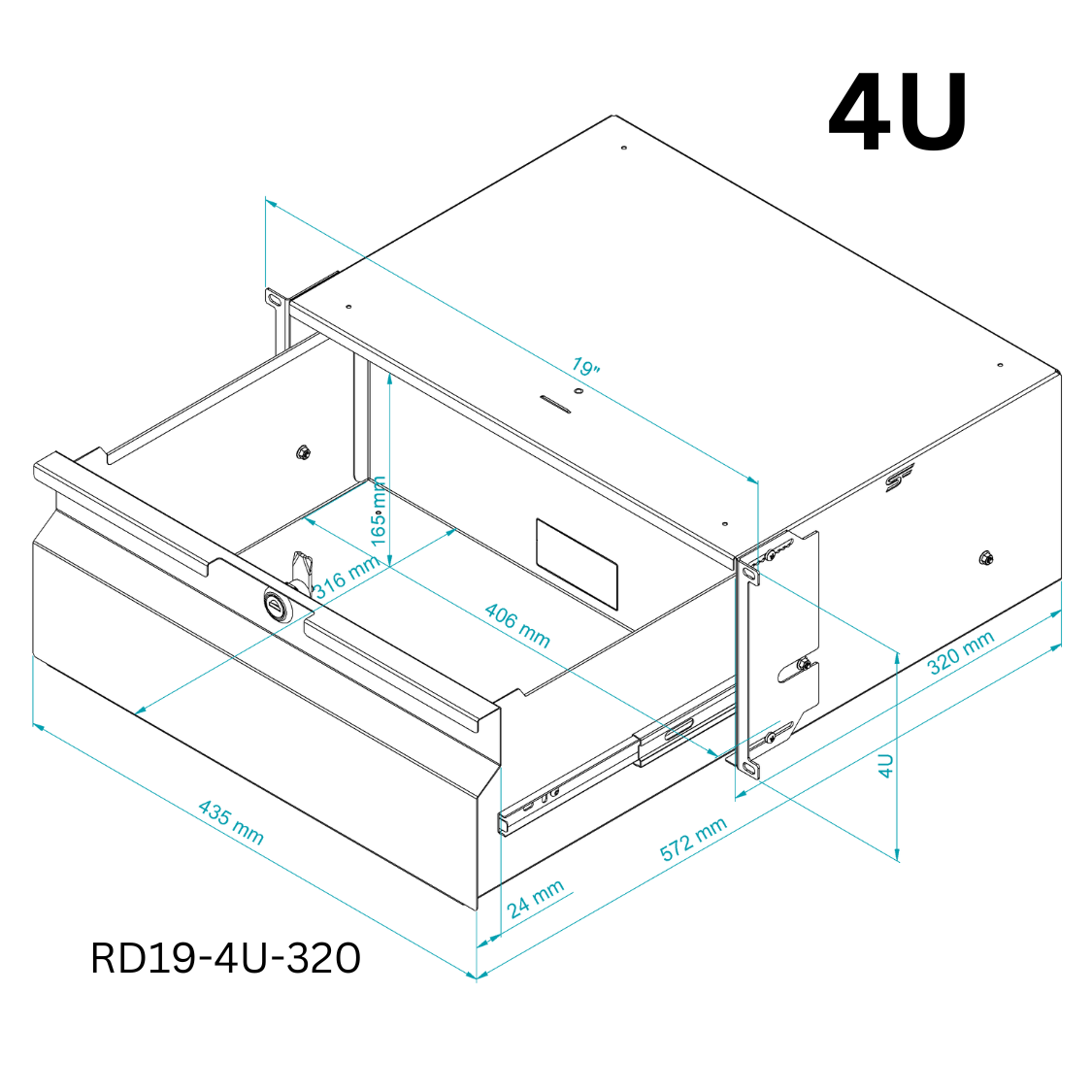

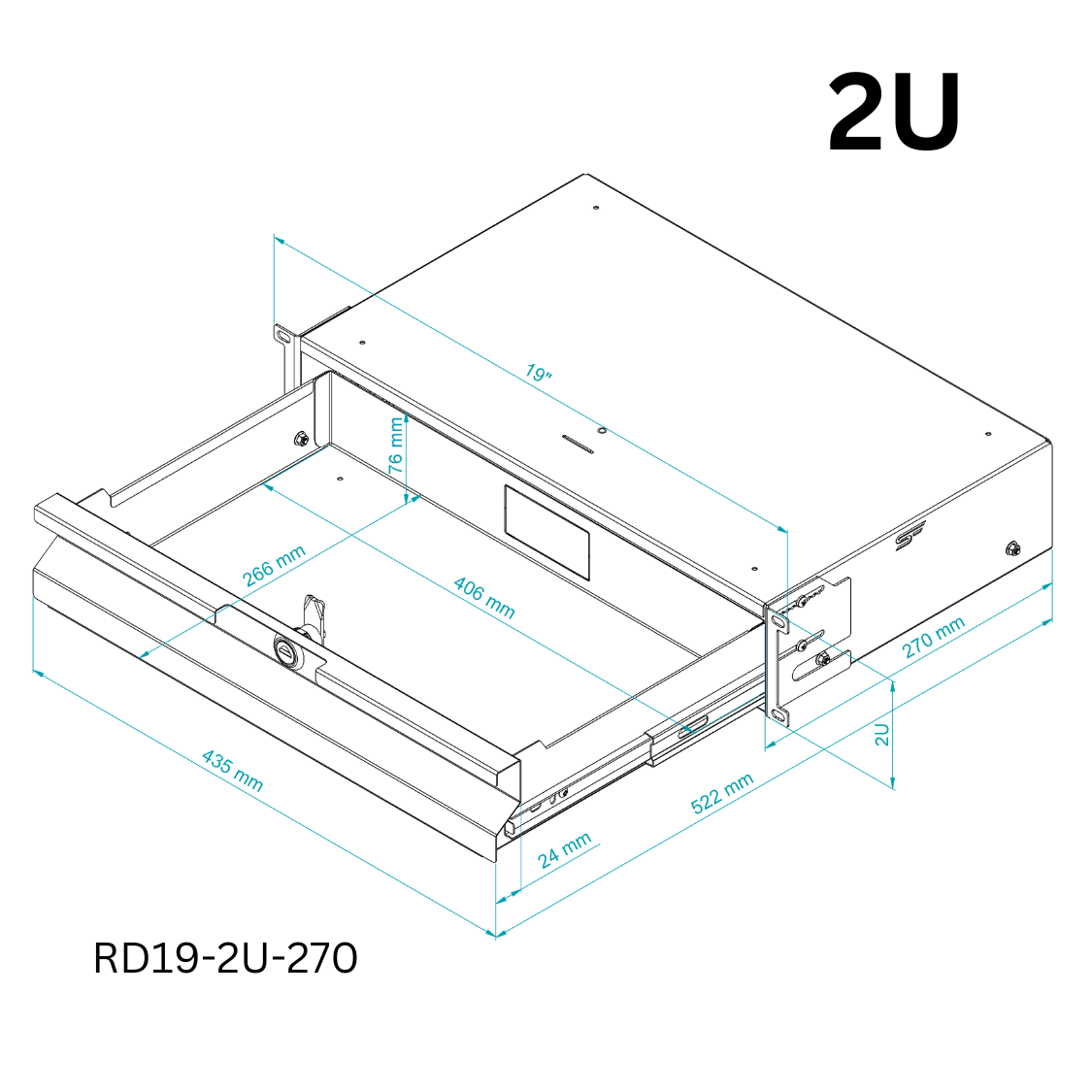

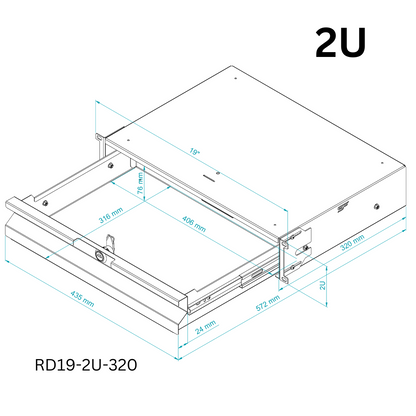

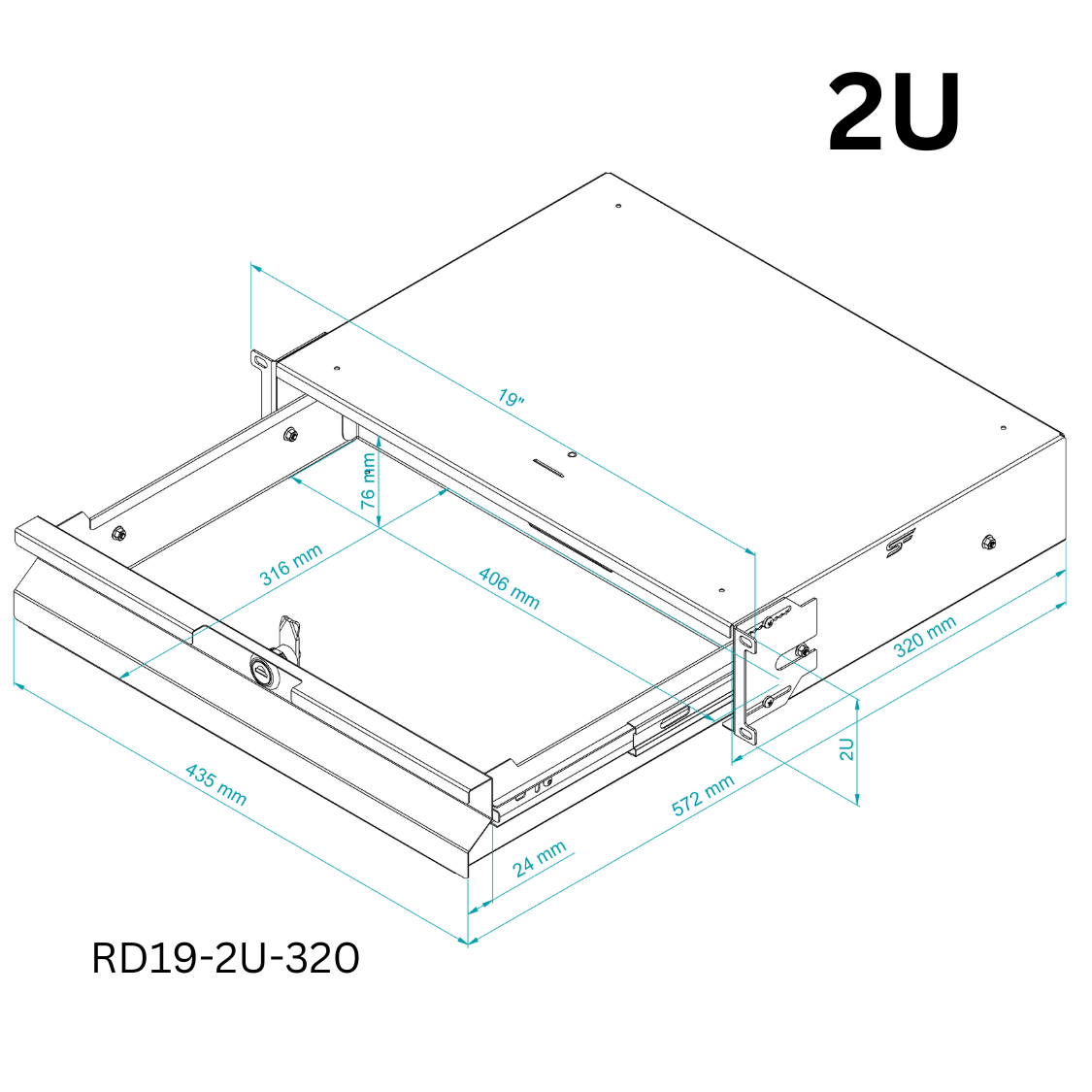

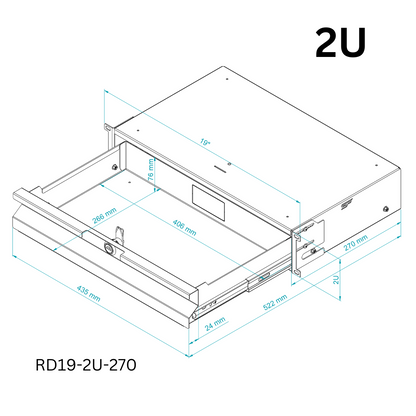

Dimensions:

• Width: 19"

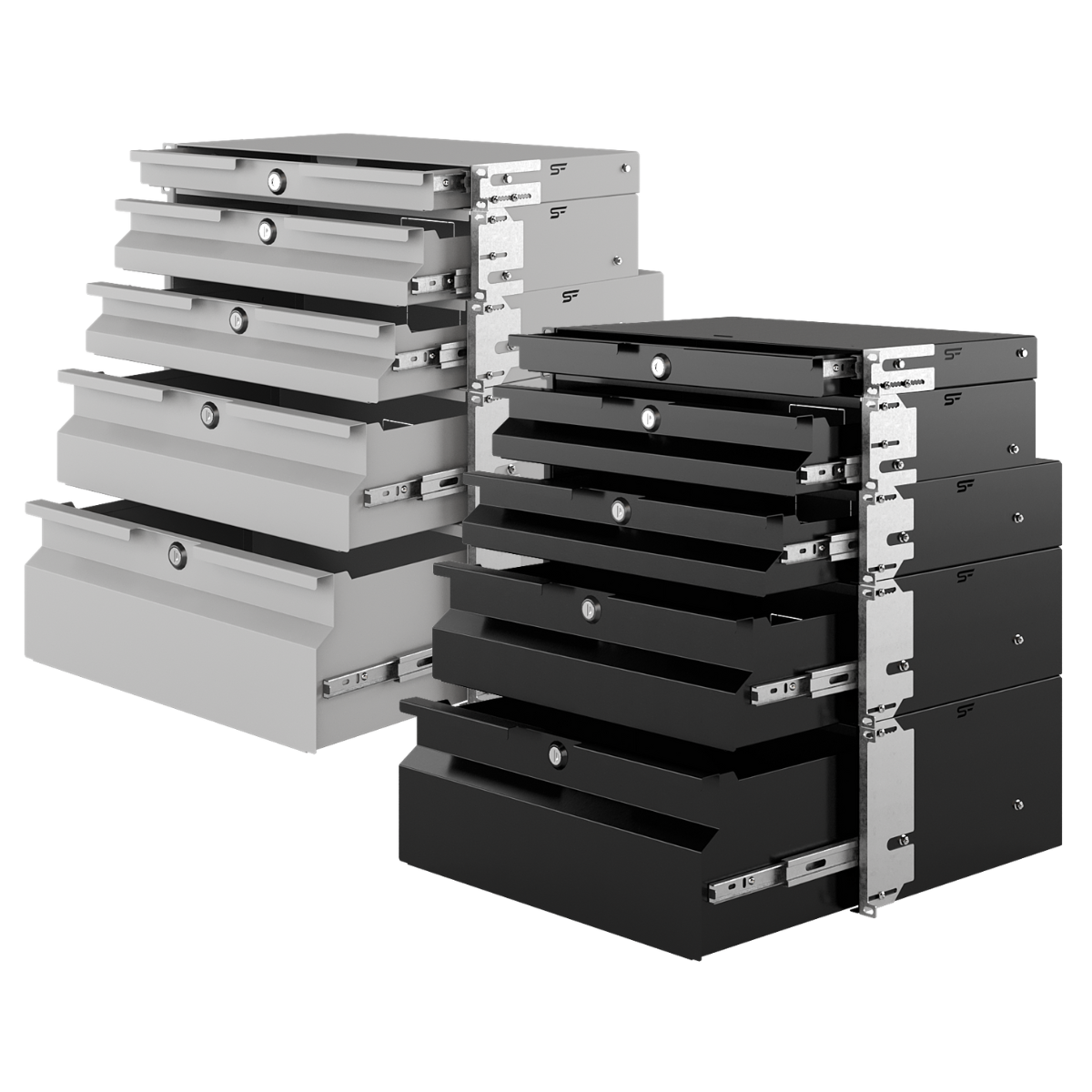

• Height: 1U 2U 3U 4U
• Depth: 270mm & 320mm

Lock:

• Solid, reinforced lock with two keys, providing a high level of security

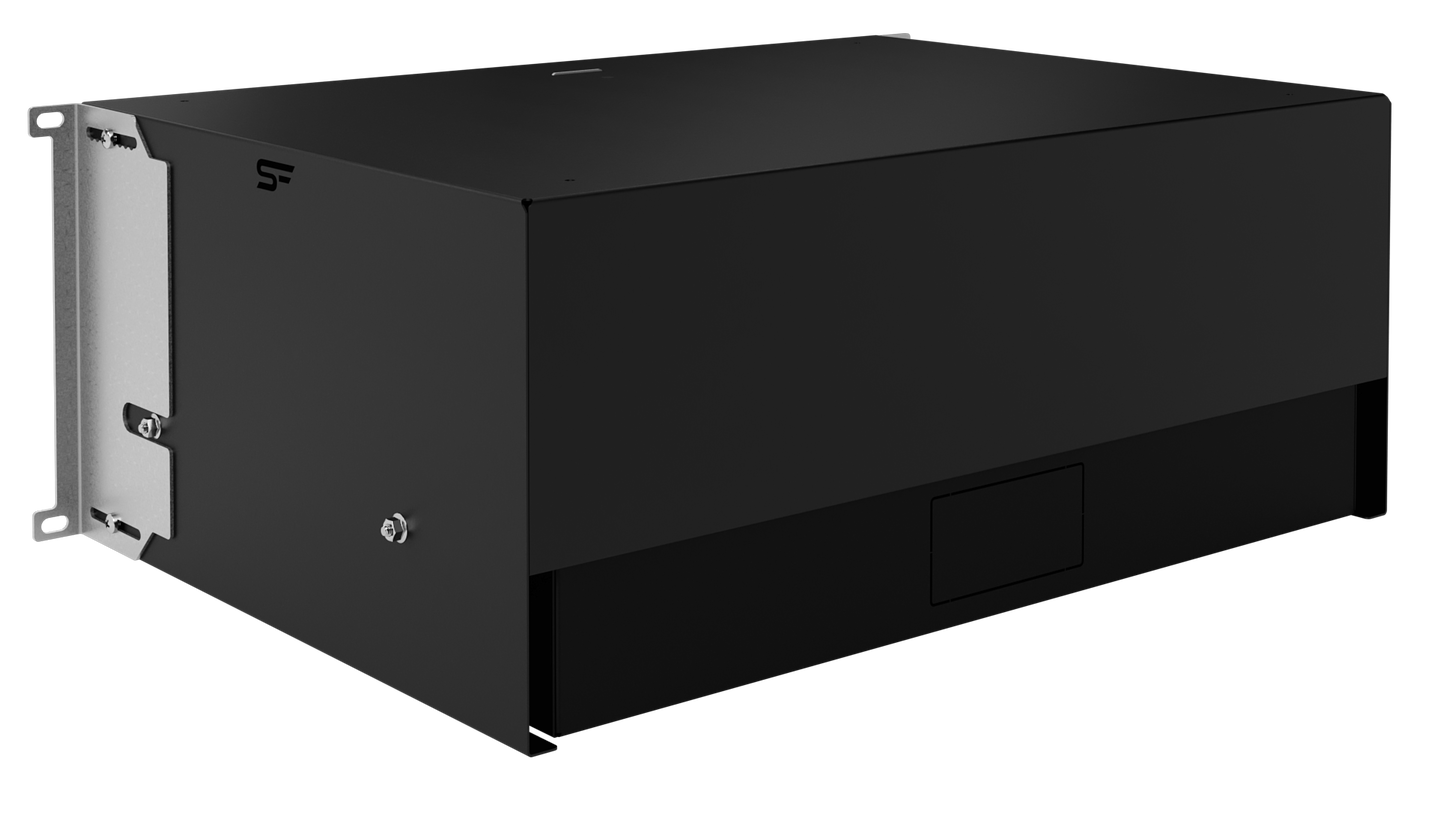

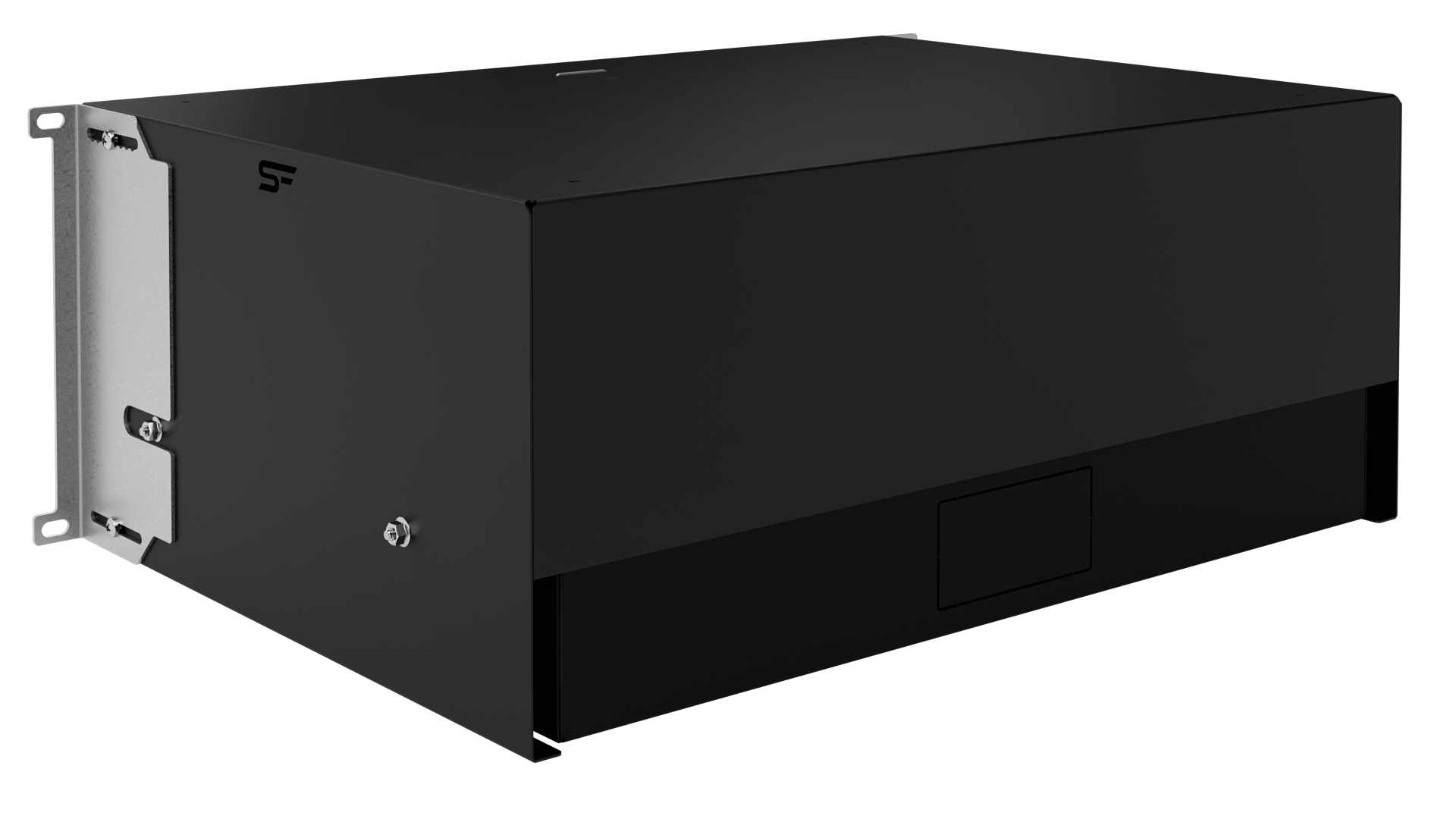

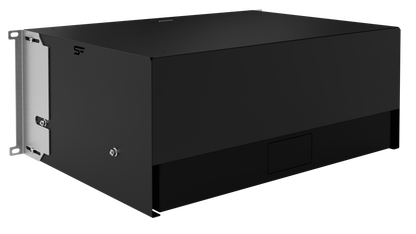

Break-in cable grommets:

• There are break-in cable grommets in the back of the drawer, so we can easily bring various types of installation into the drawer

Packing:

• Dedicated box made of five-layer cardboard for maximum protection during transport

Locking handle:

• Reinforced lock handle to prevent the drawer from being opened by tugging hard

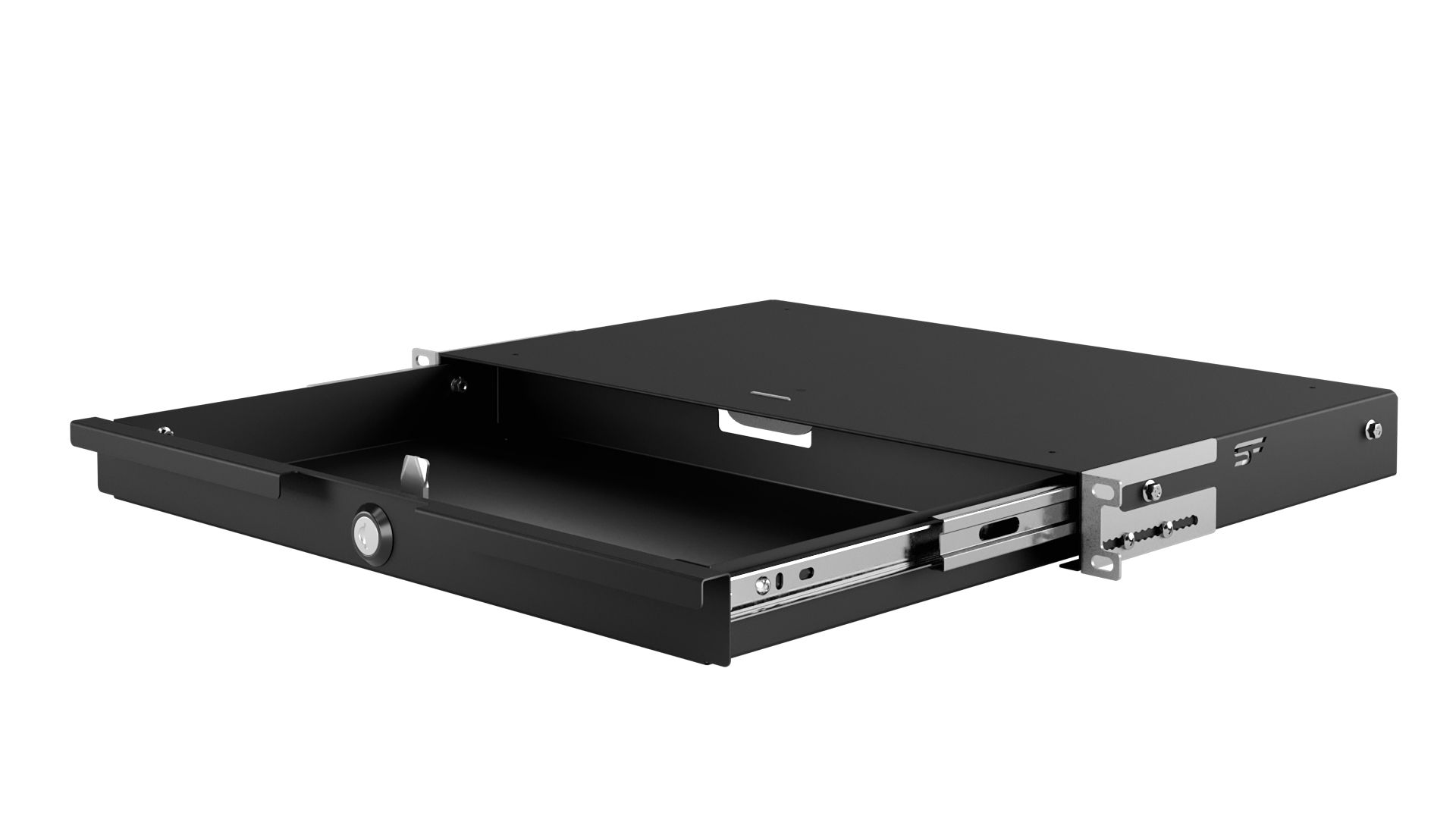

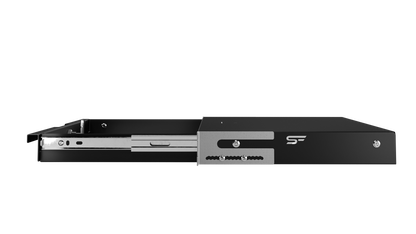

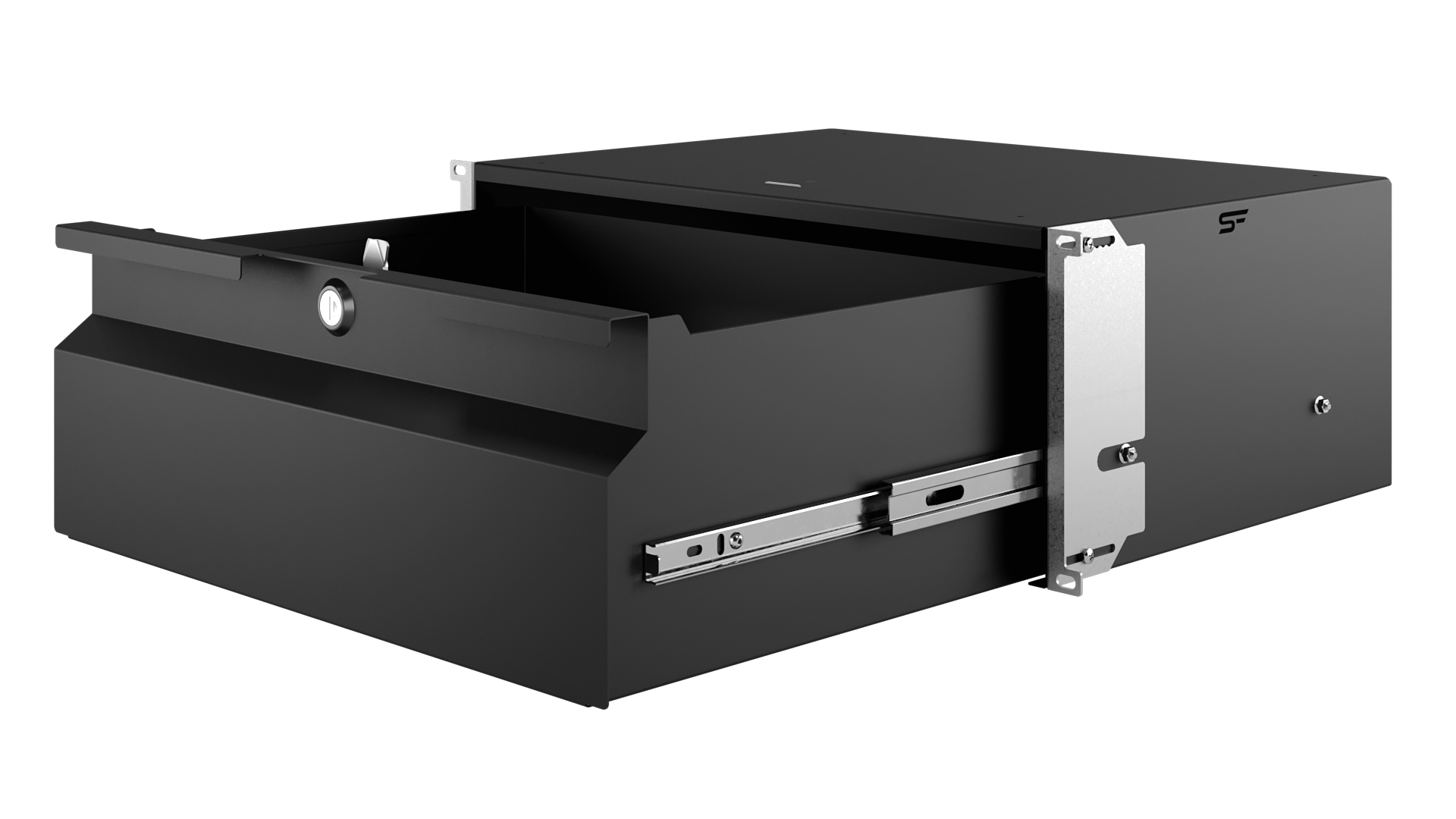

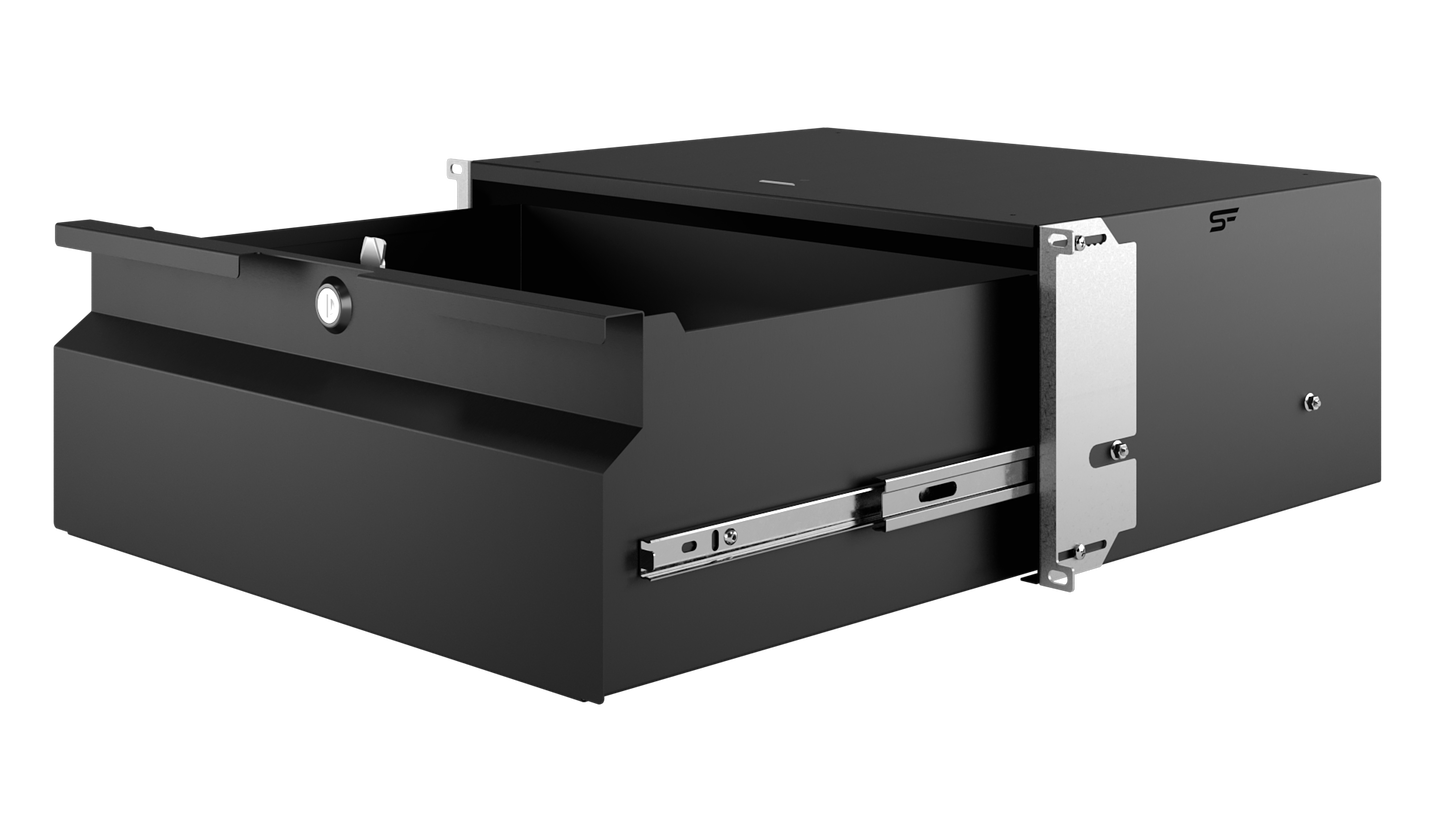

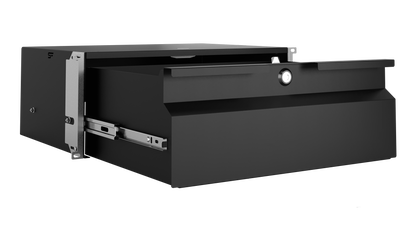

Ball slides:

• Smooth and effortless drawer extension with advanced ball slide system

U size:

• Standard U-size, which, when mounted correctly, eliminates the possibility of collision with other equipment in the cabinet (fits perfectly in the standard U)

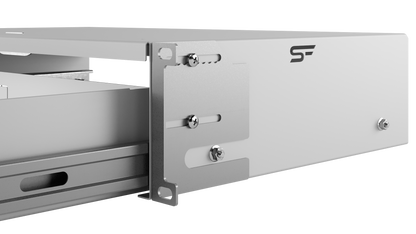

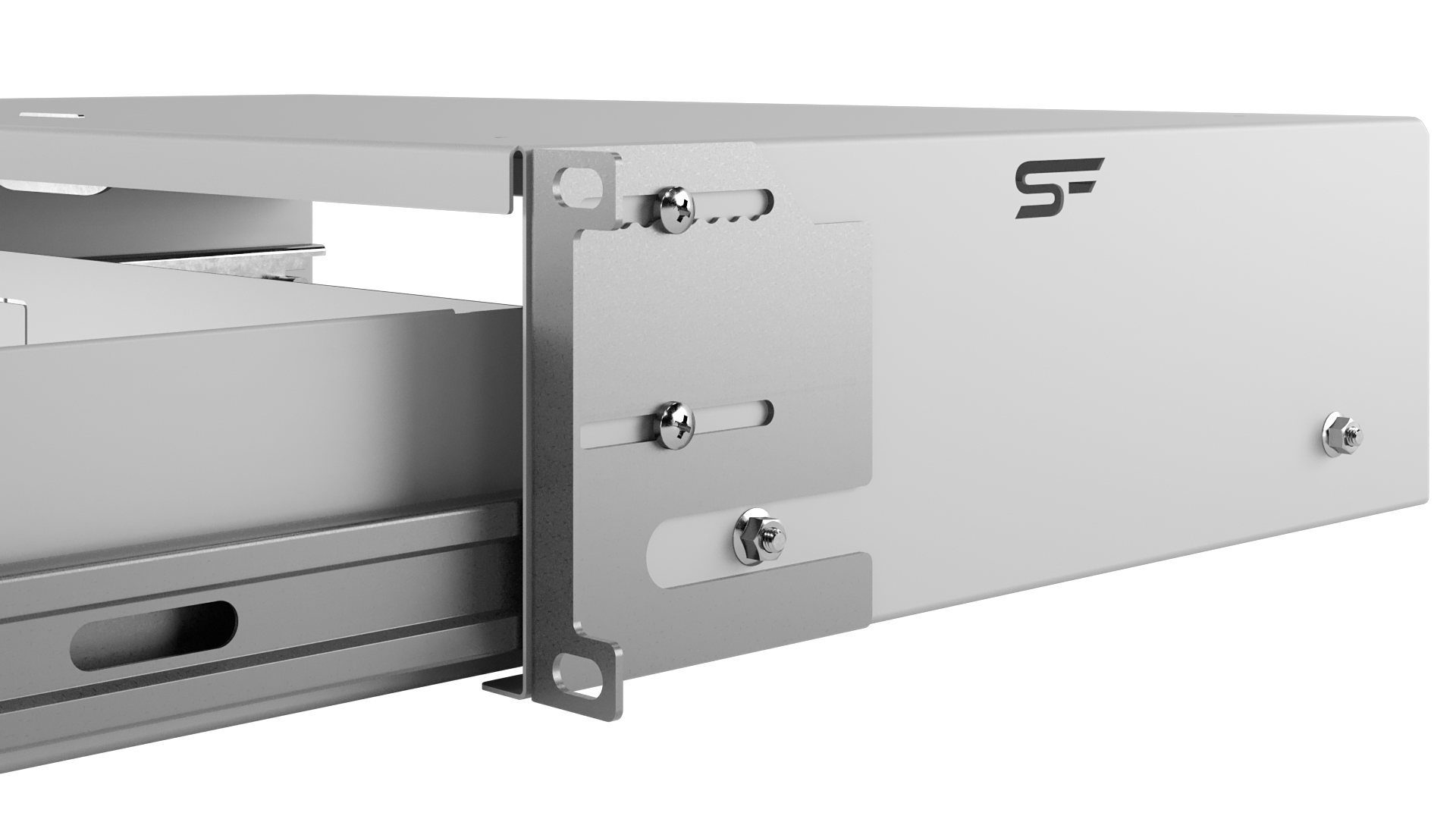

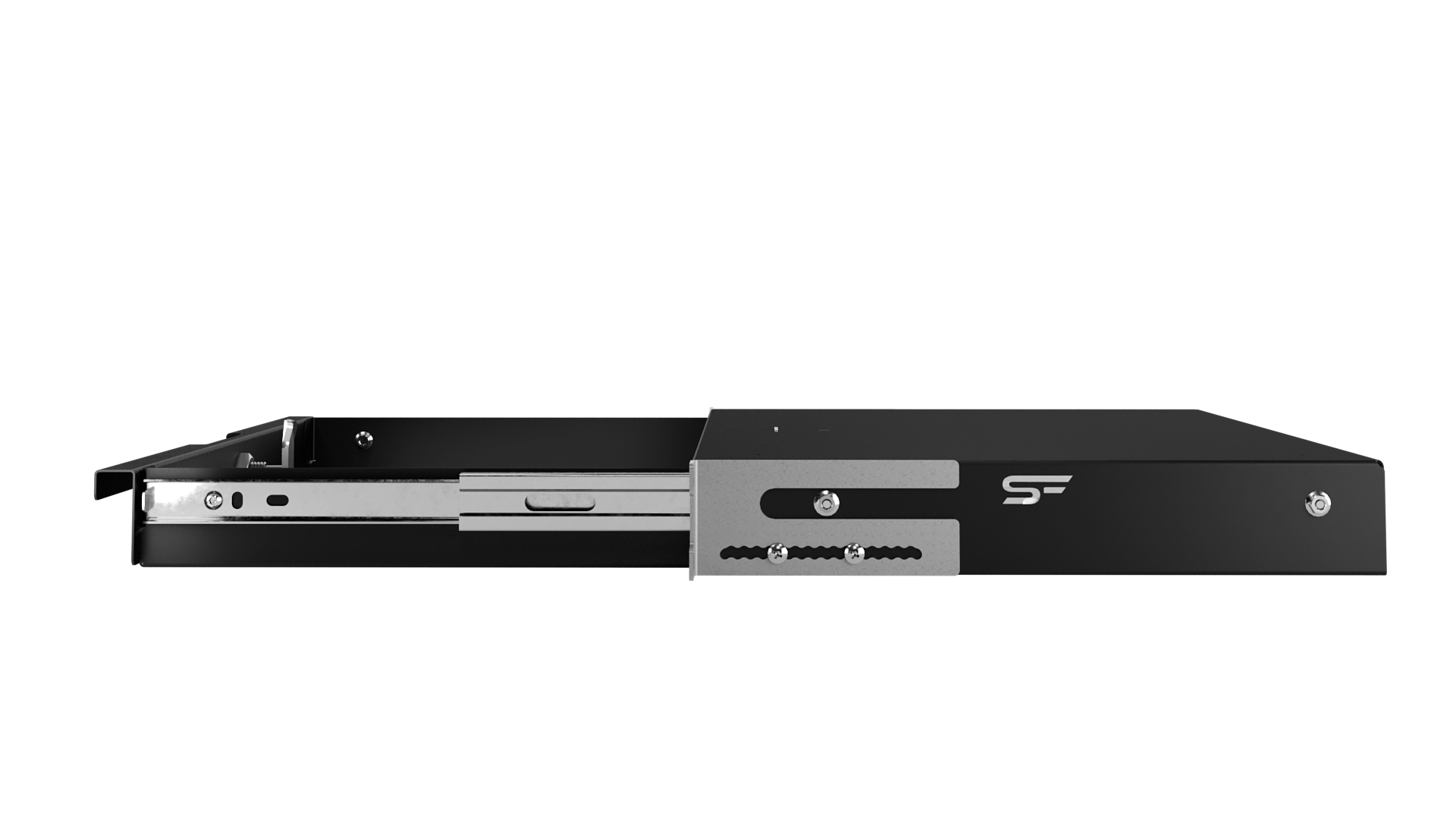

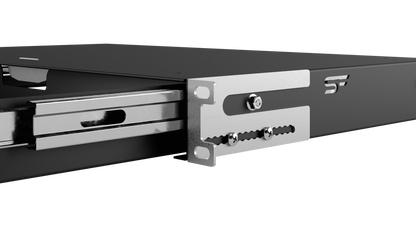

Rack mounting brackets:

• Made of 1.5mm thick galvanised sheet metal
• Adjustable brackets allow the drawer to be pushed in by 40mm or out by 20mm relative to the RACK rail mount

Technical specification:

• Material: Cold-rolled sheet metal approx. 1 mm , handles galvanised steel sheet 1.5 mm thick

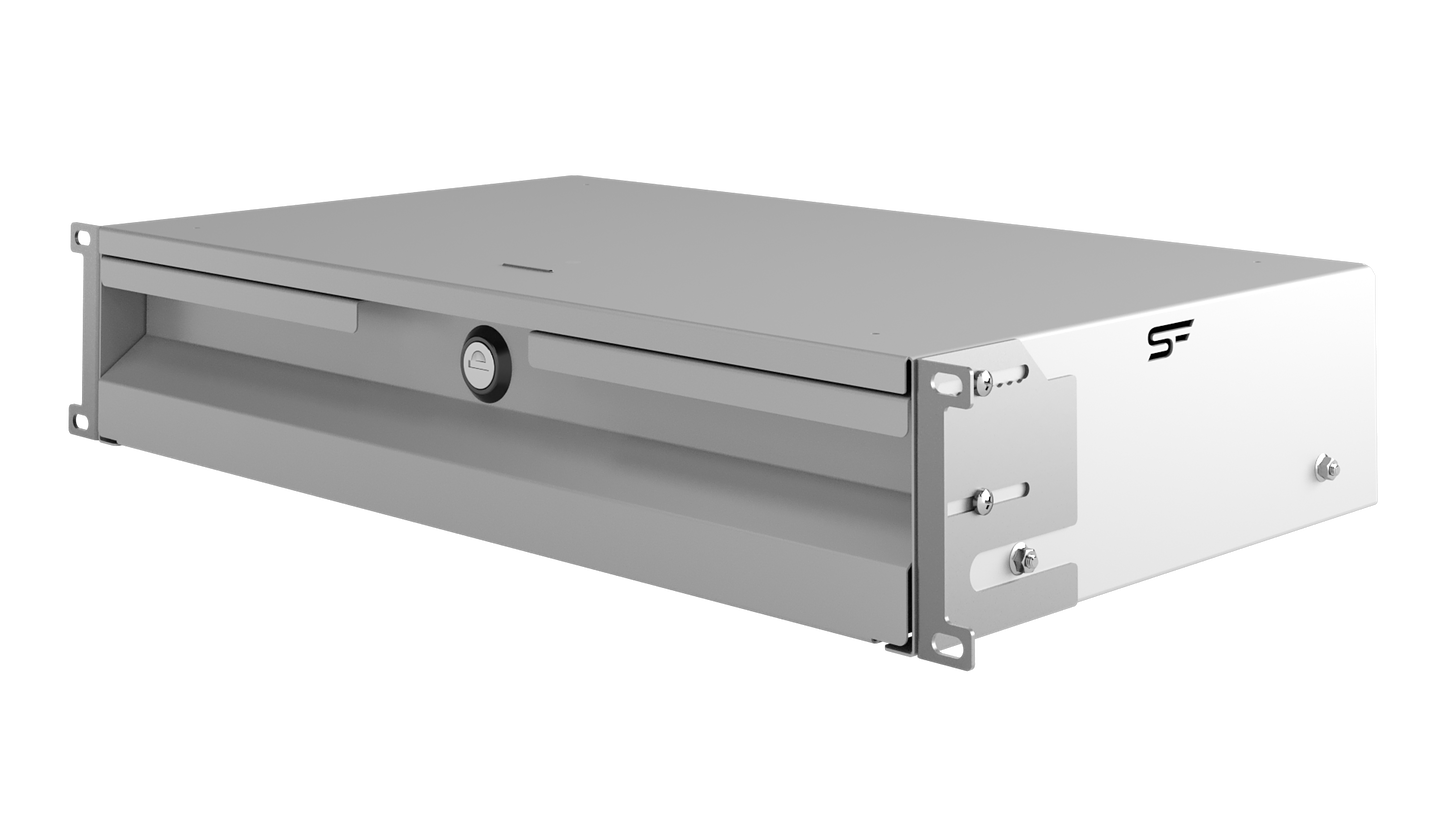

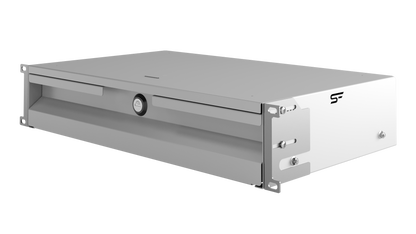

• Colour: Black (RAL 9005) & Grey (RAL 7035)
• Load capacity: Up to 50 kg
• Package dimensions: Fitted to the drawer size
• Security: Reinforced lock with two keys
• Mounting system: Adjustable mounting brackets

Invest in next-generation 19" RACK drawers and enjoy unparalleled functionality, security and ease of use that will meet the needs of even the most demanding professionals.
