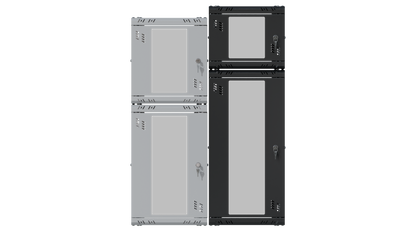

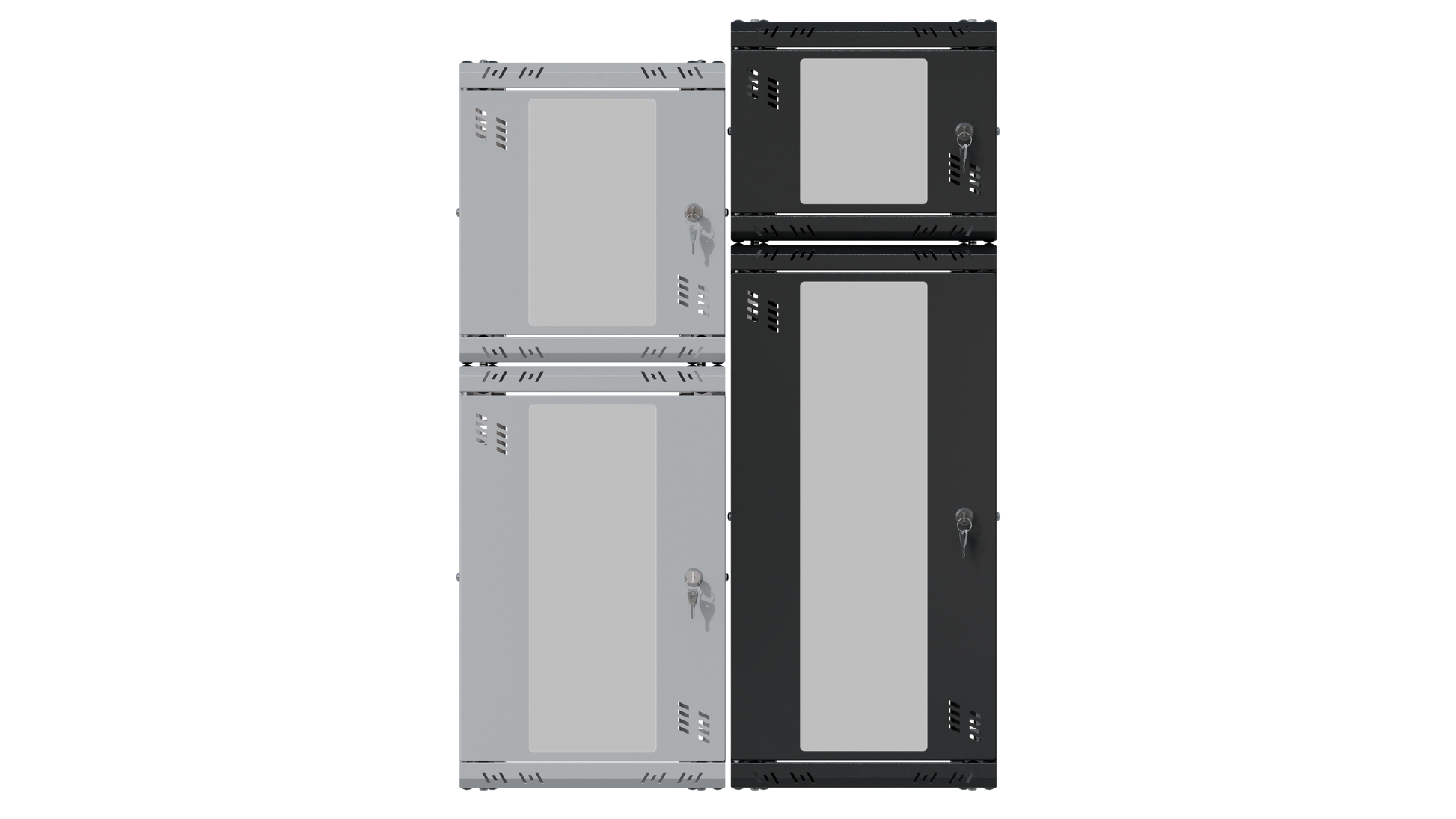

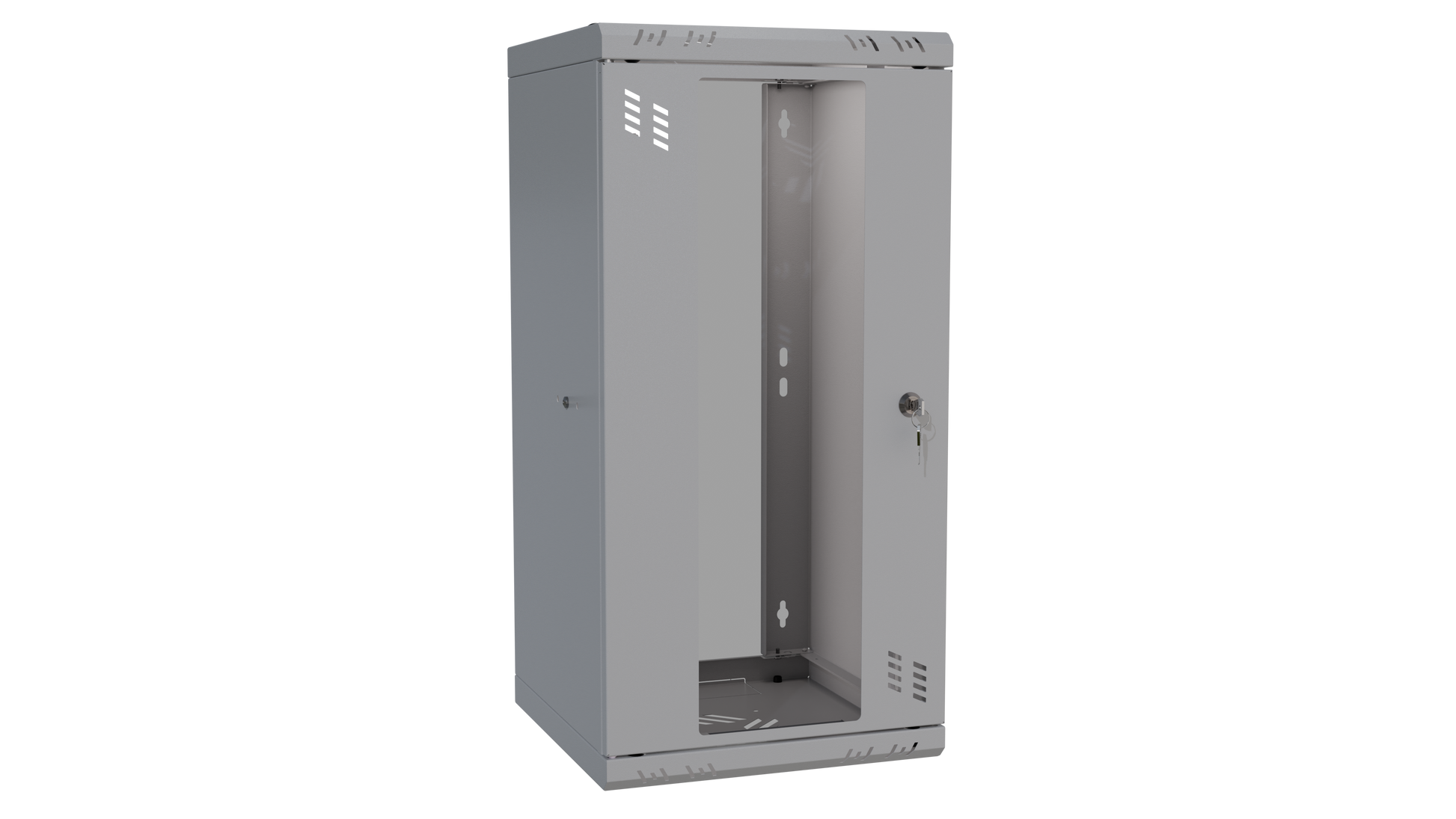

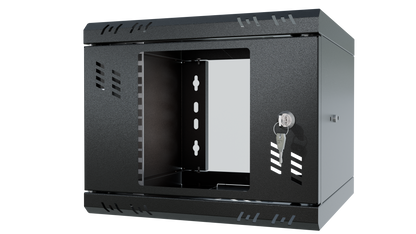

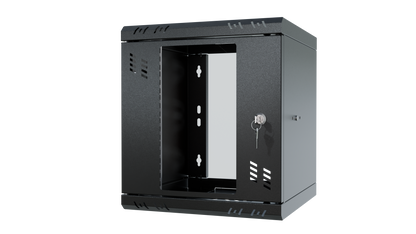

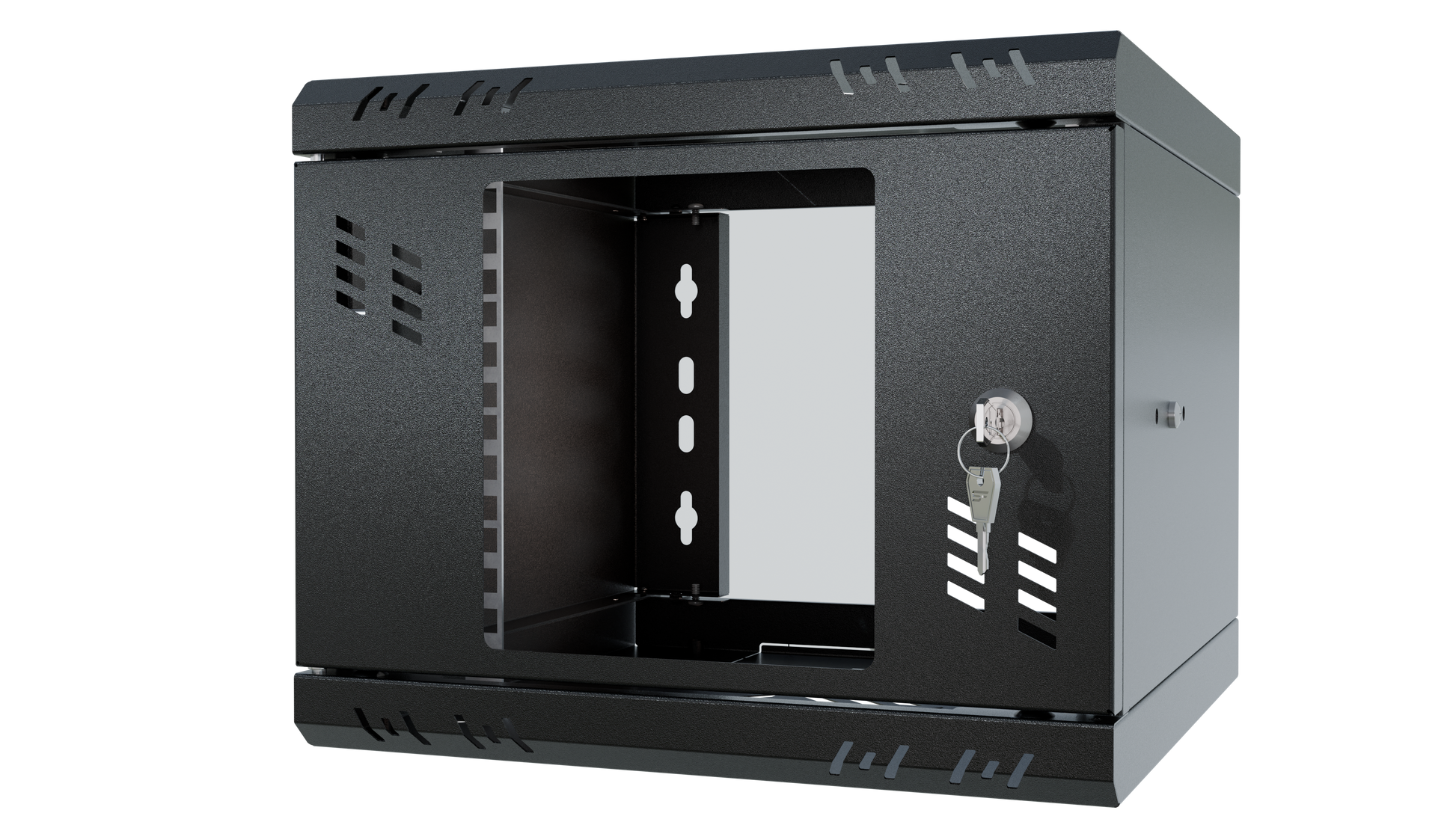

The Standard 10" RACK cabinets are a modern and compact solution dedicated to the IT industry, ideal for both small and medium-sized installations. This cabinet allows easy installation and efficient management of cabling and 10" equipment, making it an ideal choice for professionals, products aimed at the SOHO sector.

Detailed dimensions can be seen in the technical drawing available in the photo section.

Thoughtful design

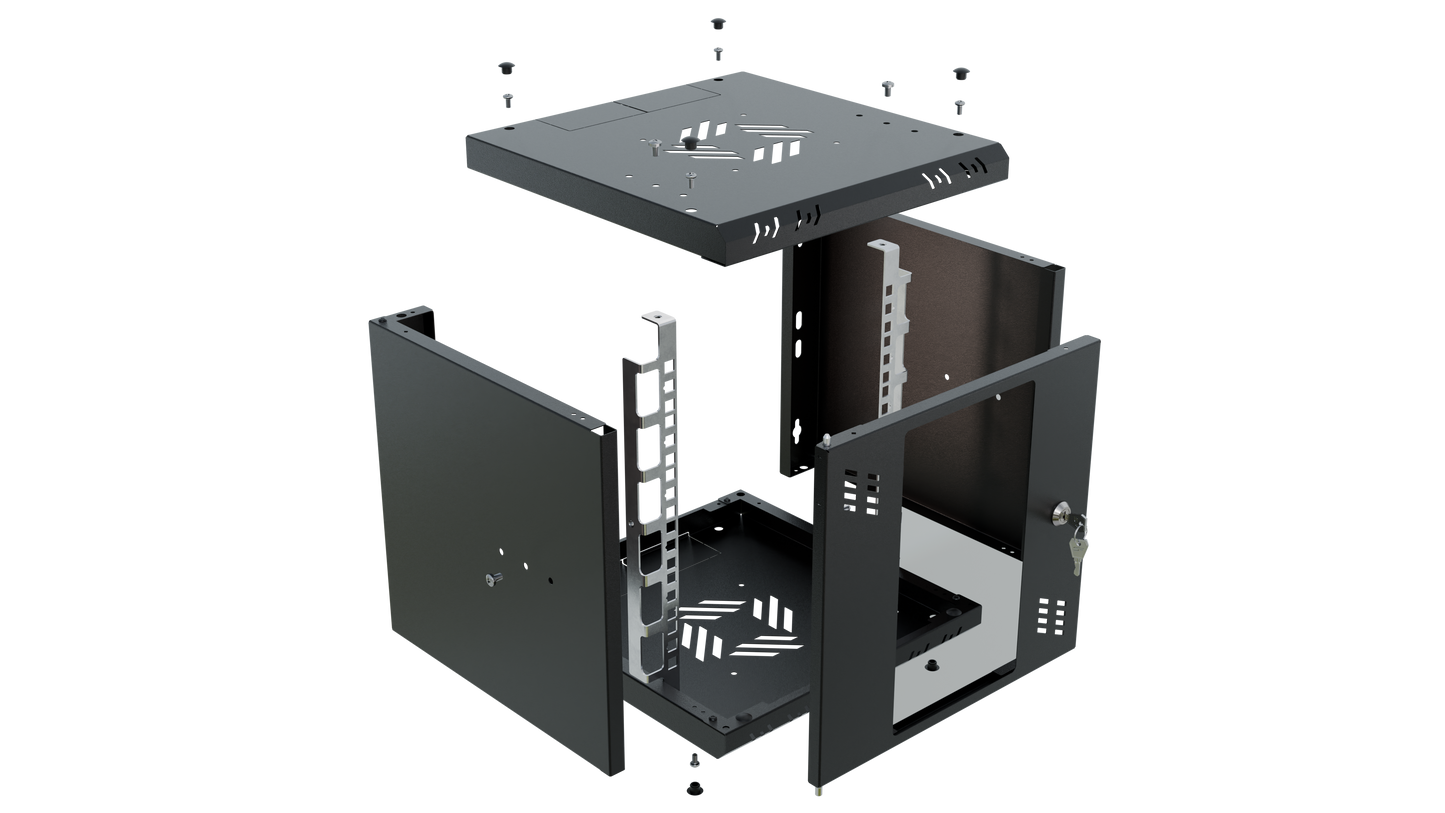

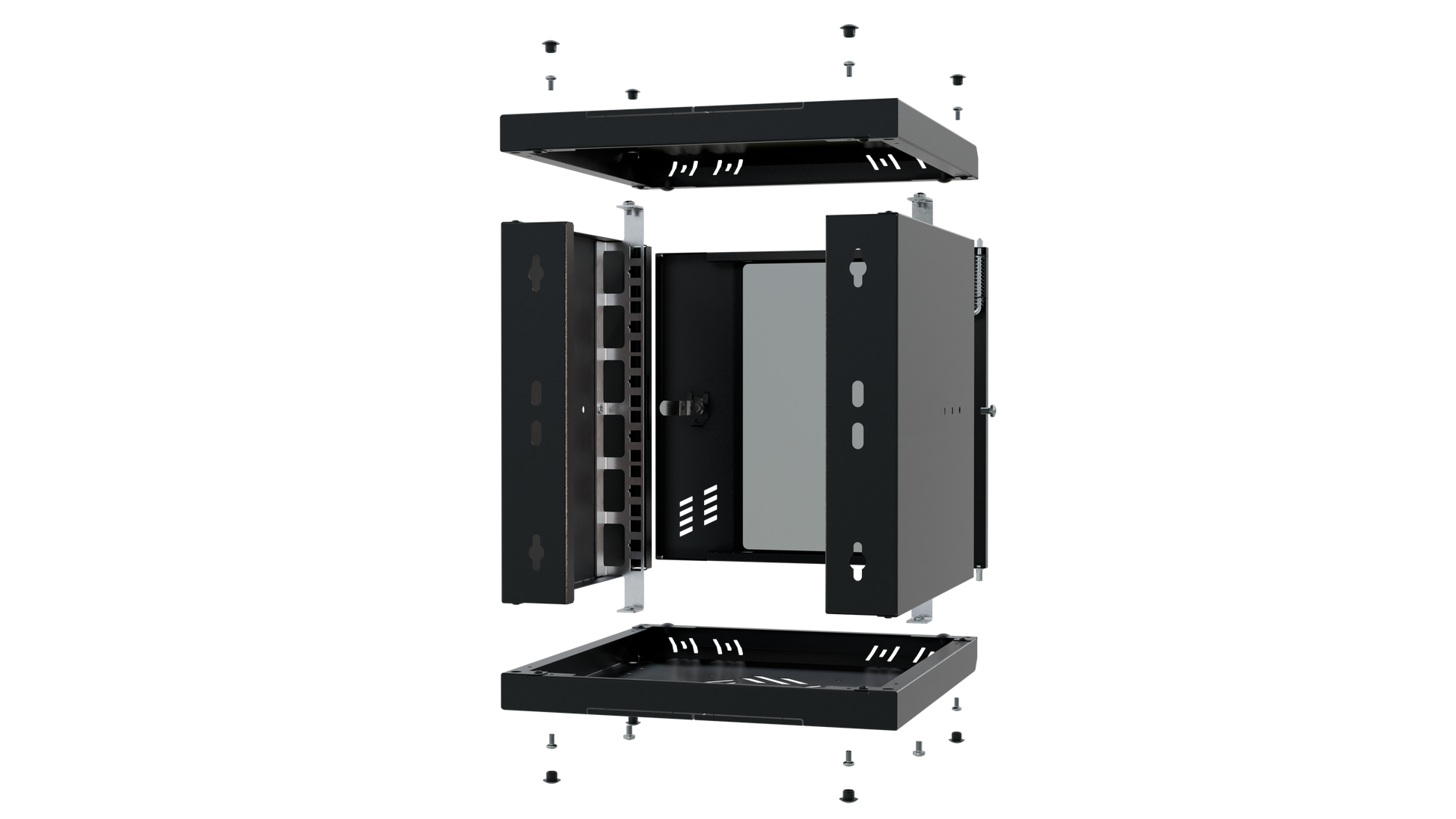

The rack is made of high quality sheet metal, providing excellent rigidity and lightness, allowing installation by one person. The well-thought-out design allows convenient access to cabling thanks to the numerous openings in the RACK rails, and the compact width of 300mm makes the cabinet ideal for locations with limited space.

Ecological standards: As a Polish manufacturer, we meet the highest global standards while taking care of the environment.

Polish production: All our products are fully manufactured in Poland, guaranteeing high quality workmanship and supporting the European economy.

Precision manufacturing: Stalflex products are cut on fibre lasers, bent on a fully automated bending centre, and laser-welded which guarantees this with extreme precision.

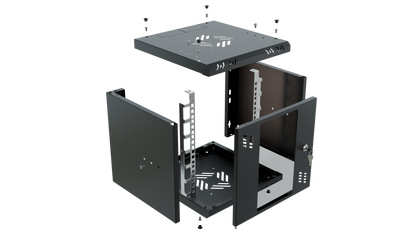

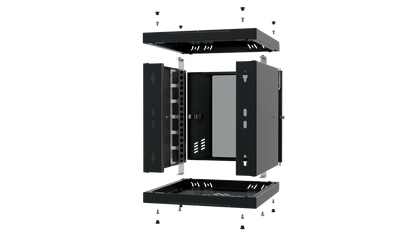

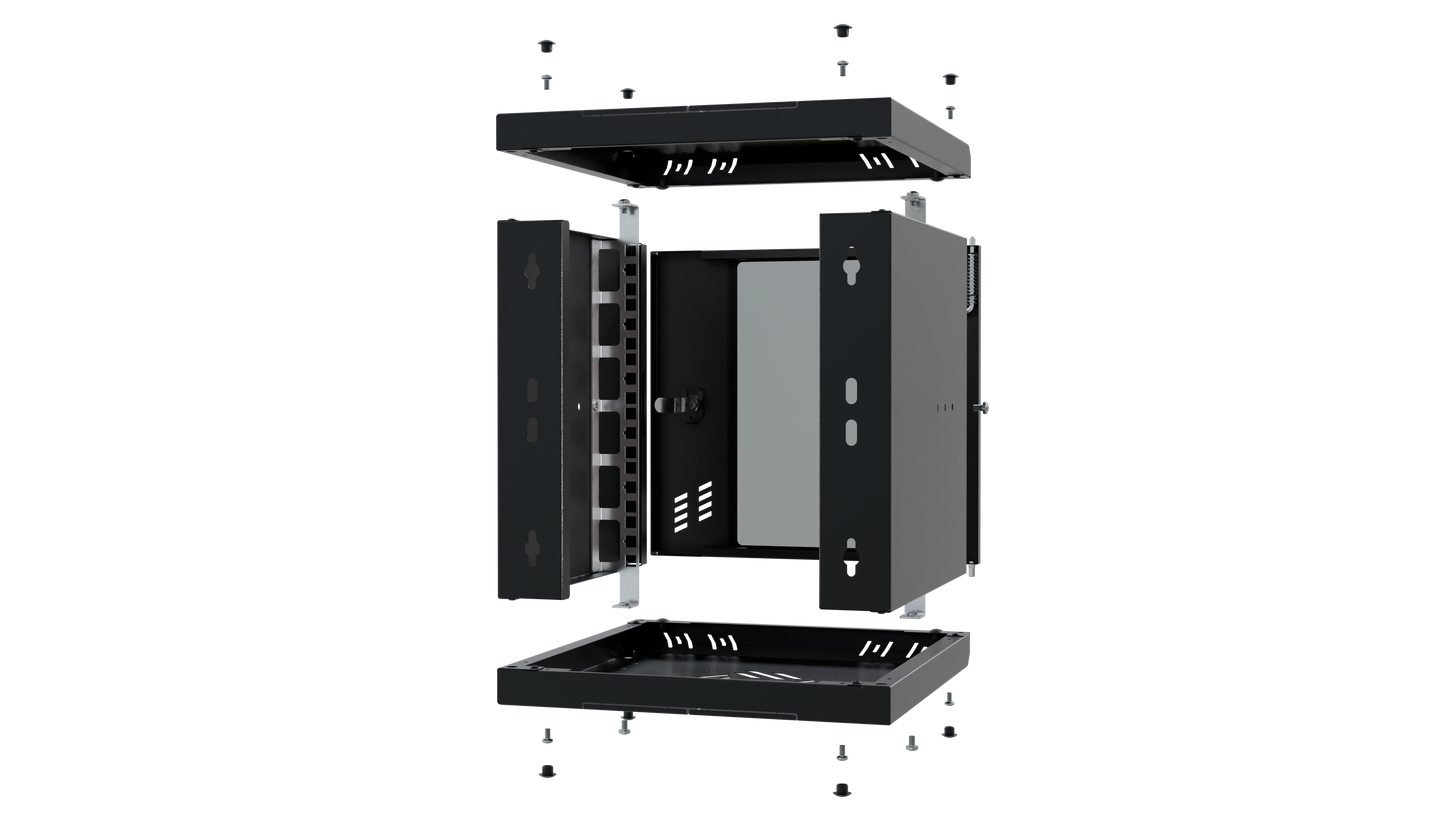

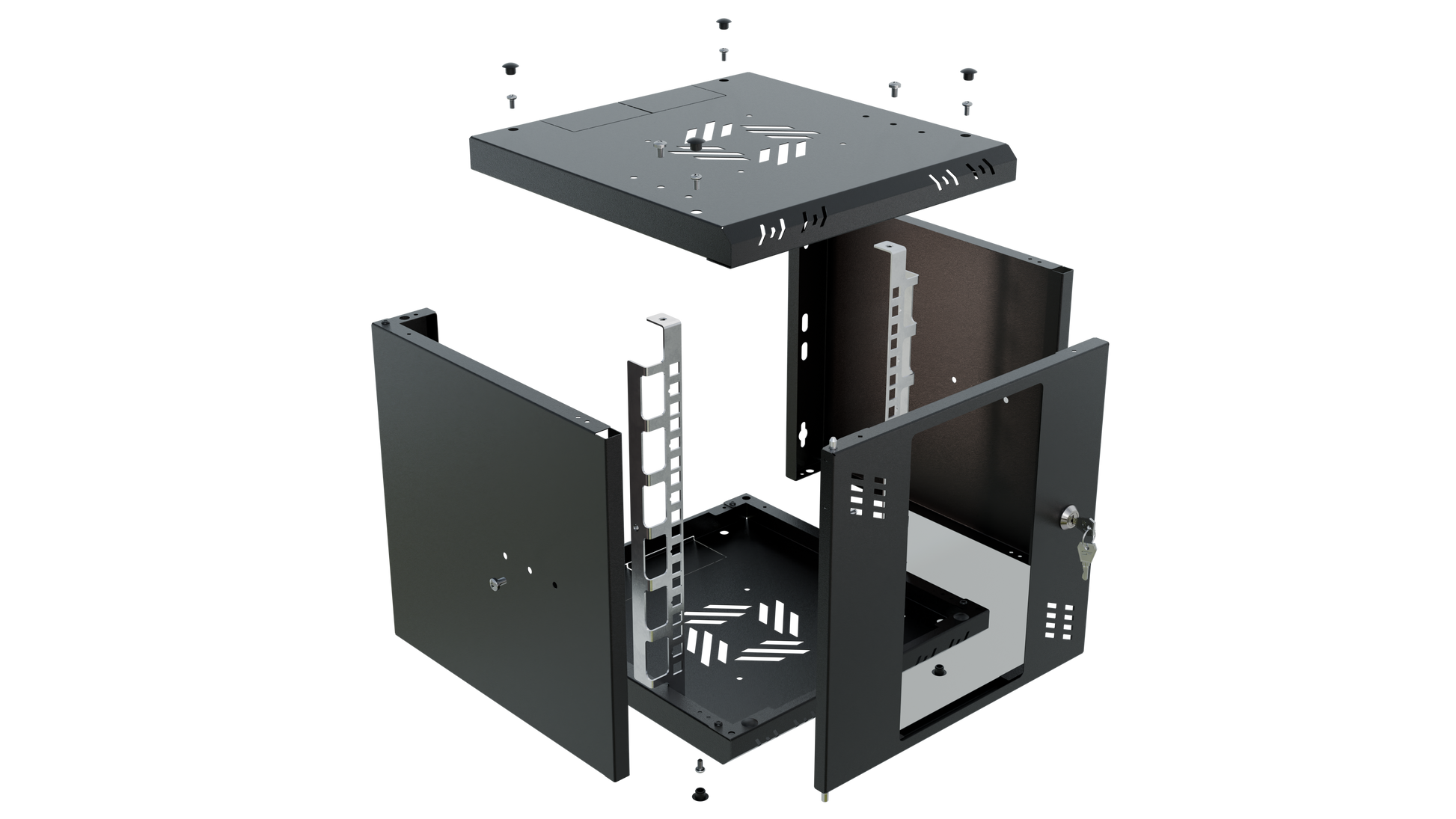

Easy assembly

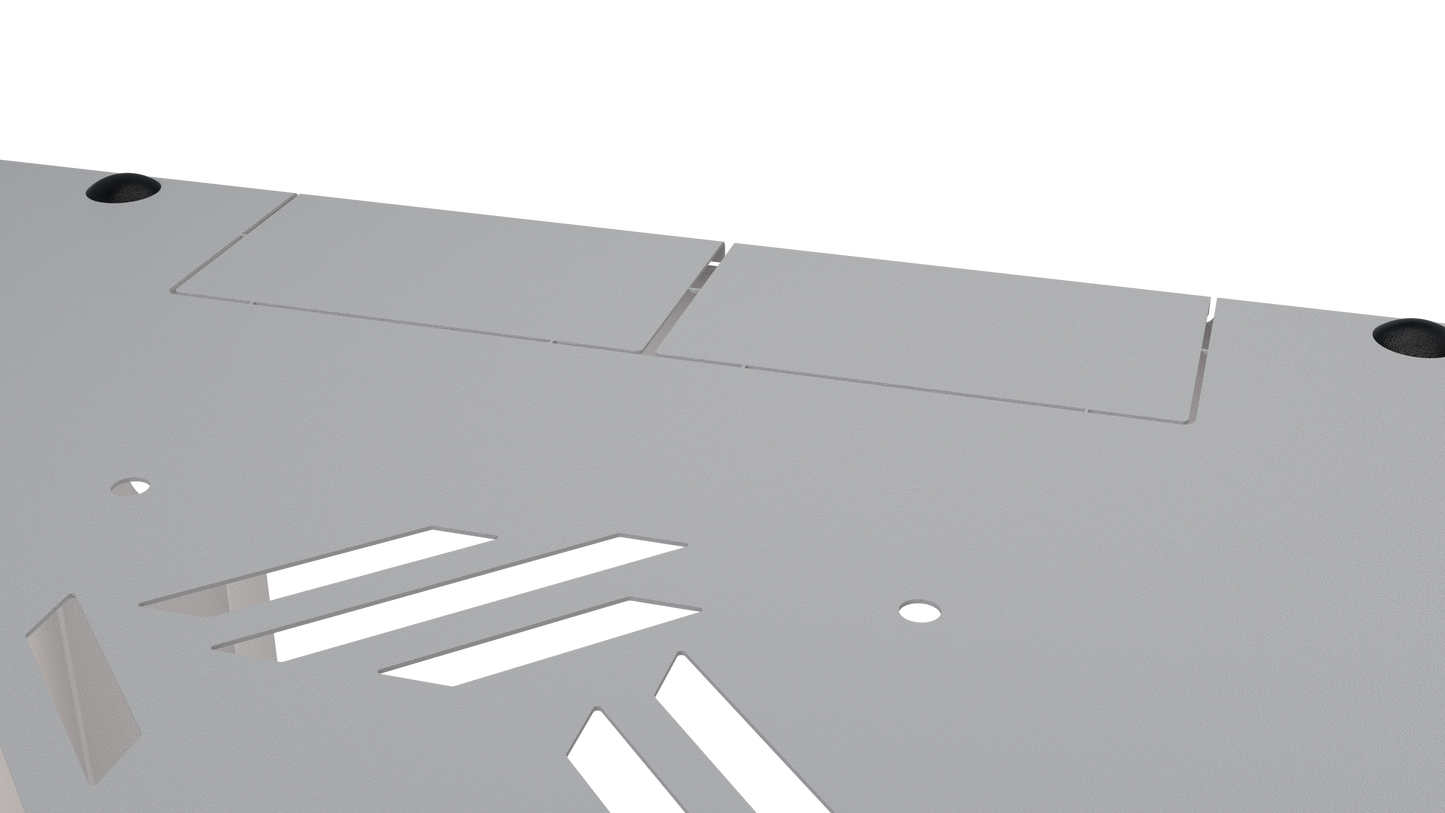

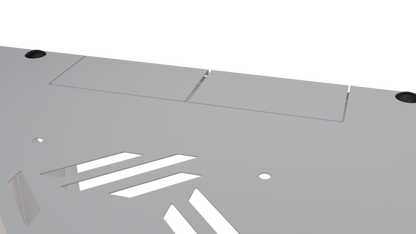

The cabinet can be easily screwed in place using wall plugs (not included) thanks to the holes in the back. This allows four-point mounting to the wall for increased stability. The door can be mounted on either the right or left side and, thanks to special spring-loaded hinges, installation and removal is extremely easy. The rails of the RACK can be adjusted in three depths, allowing a free fit for the equipment inside. In addition, the cabinet has fan slots in the bottom and top of the enclosure (120x120 mm, hole spacing 105x105 mm) and two break-out cable feed-throughs (top and bottom), which facilitates cable management and ensures adequate cooling of equipment. The cabinet does not have a back panel, which makes it easy to mount on existing infrastructure, such as cables coming out of the wall.

Key features

• Fast and easy installation: One screwdriver installation.
• Aesthetic design: A modern look that looks great in any space.
• Rack rail mounting adjustment: Adjustable in 30 mm increments over three depths.

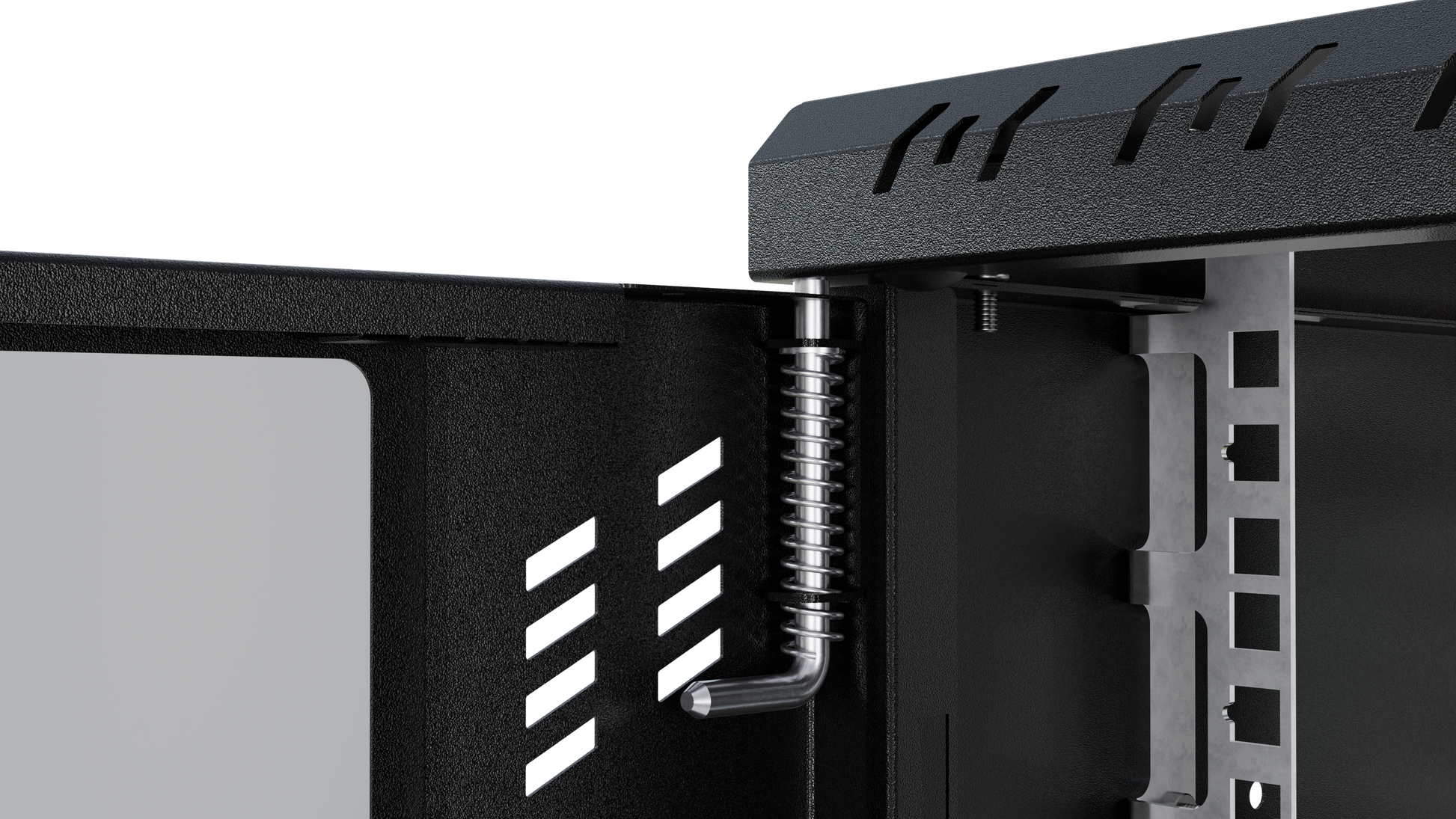

• Universal door mounting: Door mounted left/right with spring-loaded hinge.
• Advanced cooling: Fan locations and perforations in the front sections ensure optimum airflow.
• Safety and robustness: Full door frame provides mechanical protection for the glass, while PVC screw caps provide aesthetic appeal and additional security.

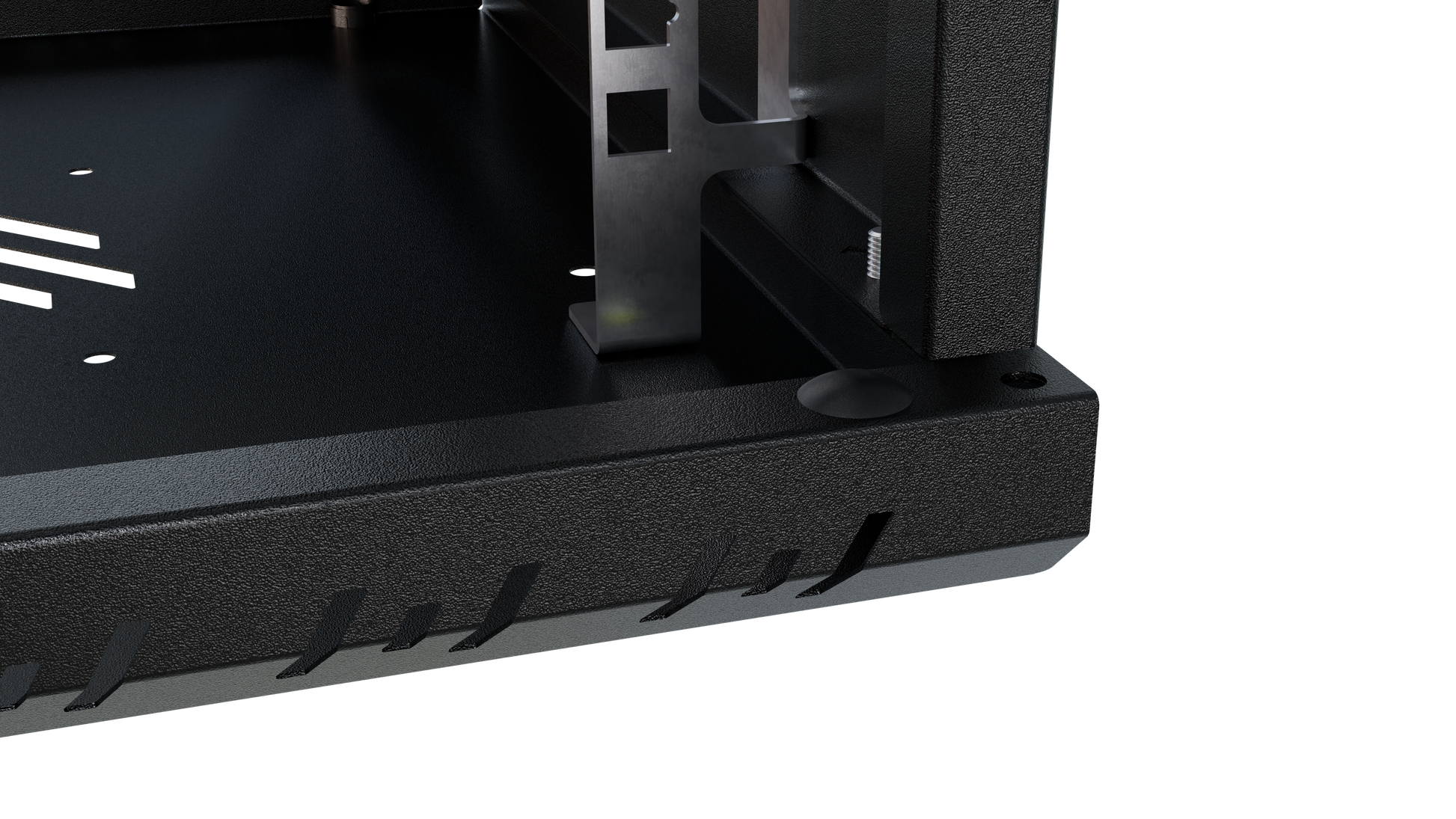

• Additional ventilation holes: In the upper and lower parts of the cabinet, as well as on the front and sides, ensuring proper air circulation.

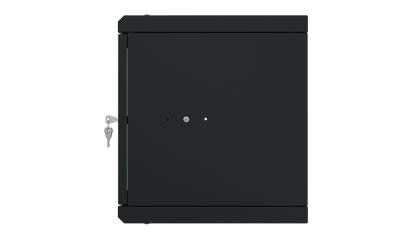

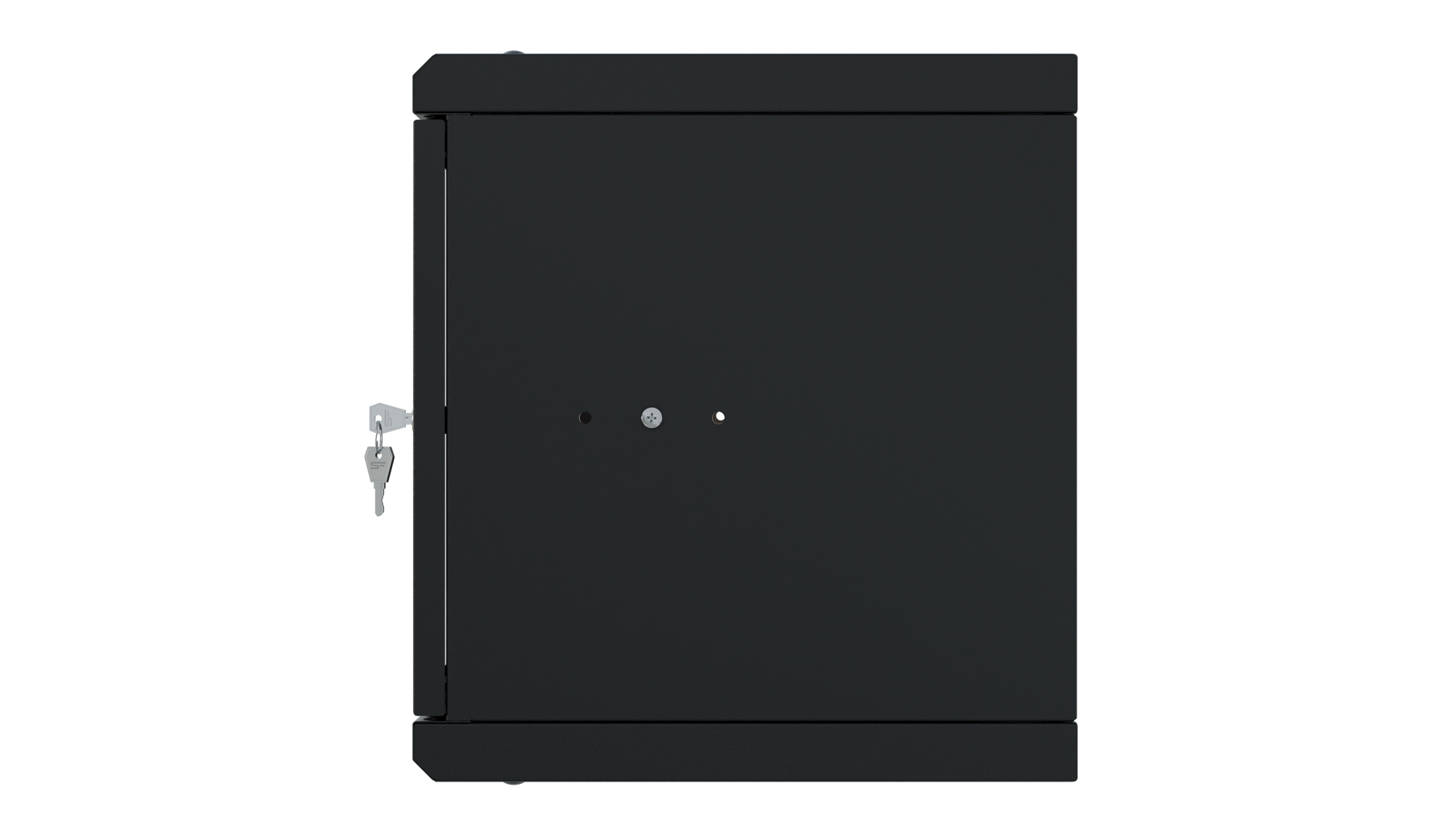

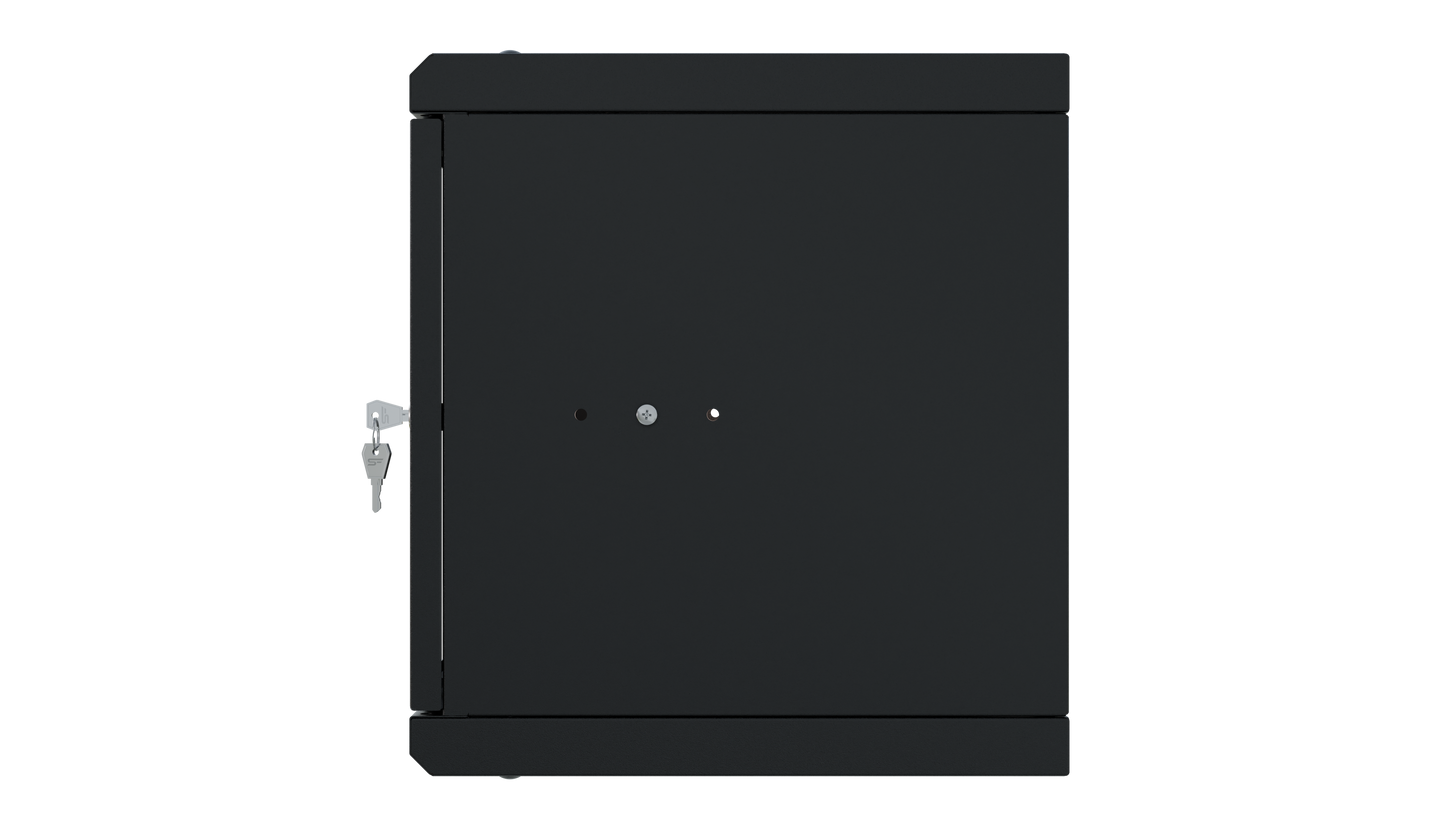

• Patent lock: The cabinet is equipped with a patent lock with two keys included.

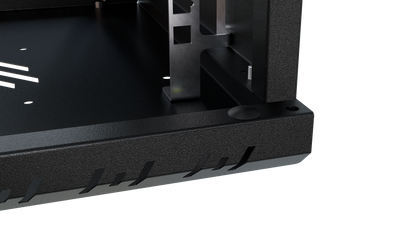

• Door glides: Thanks to the use of plastic glides, the door closes with a silent close, protecting against the bruising of metal components.

Secure packaging

The cabinet is carefully packed in a dedicated box made of strong cardboard, minimising the risk of damage during transport.

Summary

When you choose Stalflex Rack Cabinets , you get functionality, aesthetics and the assurance that you are using a top quality product, created with your needs in mind. The cabinet is 100% manufactured in Poland, guaranteeing reliability and precision. Ideal for professionals and companies who value efficient IT space management.
