Stalflex 1-MP Mini Surface-Mounted Metal Enclosure – 240x150x50 mm with Chipboard Mounting Plate

The Stalflex MB-TPR1M-MP-B is a universal surface-mounted metal enclosure designed to provide secure, aesthetic, and functional housing for devices in telecommunication, automation, and low-voltage installations. Built with precision from powder-coated steel and featuring a durable 10 mm chipboard backplate, this compact enclosure offers superior protection and ease of use for both professional and home applications.

Key Features

• Sturdy Construction: Crafted from corrosion-resistant black powder-coated steel (RAL 9005) for enhanced durability in demanding environments.

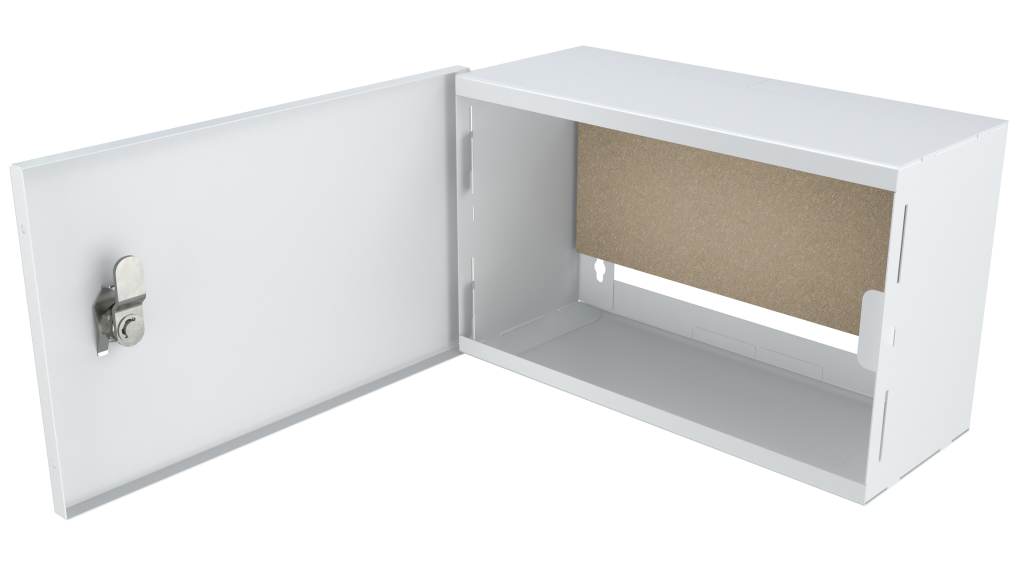

• TPR Chipboard Mounting Plate: The internal 10 mm chipboard plate is secured with four screws and allows easy installation of modules, splitters, or control units.

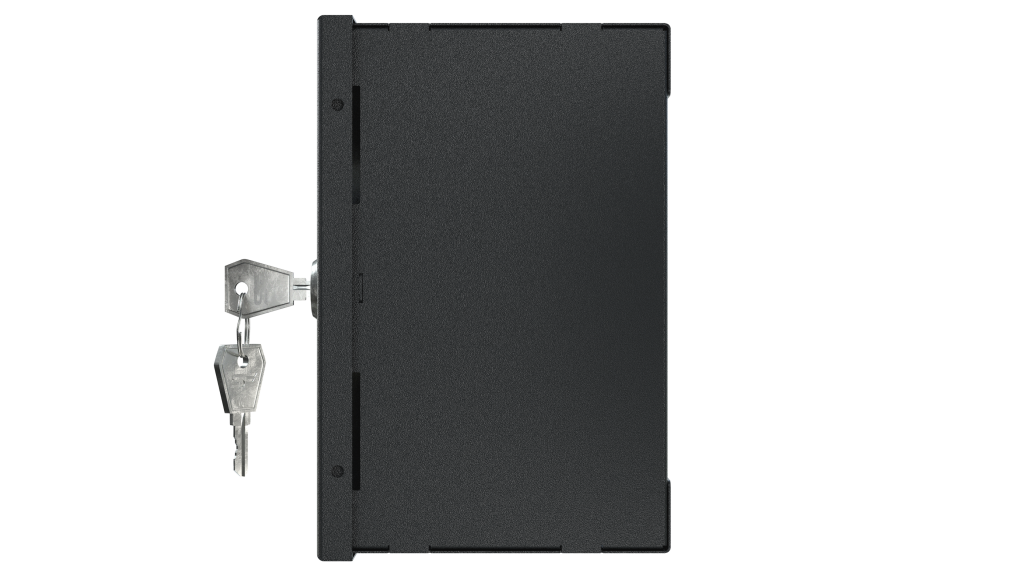

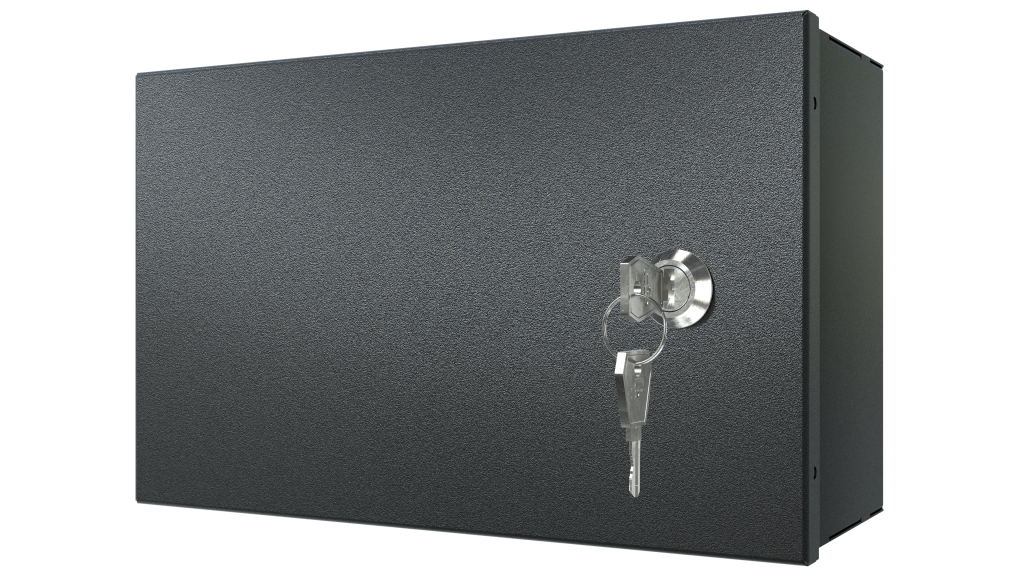

• Removable Doors with Patent Lock: Includes a secure locking mechanism with two keys. The doors are easy to remove for unrestricted internal access during installation or maintenance.

• Flexible Door Orientation: The enclosure supports left or right door opening—simply rotate the unit before wall mounting.

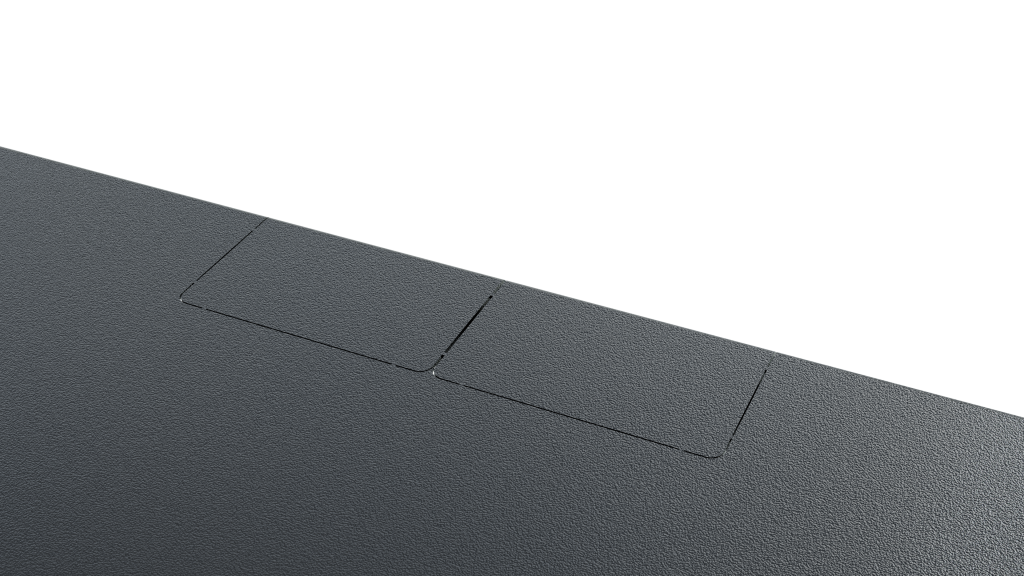

• Breakout Cable Glands: Convenient knockout cable entries on the top and bottom allow clean cable routing and connection to external infrastructure.

• Easy Installation: Pre-drilled mounting holes enable secure attachment using standard expansion bolts (not included).

Technical Specifications

• Model: MB-TPR1M-MP-B

• Material: Powder-coated steel

• Color: Black (RAL 9005)

• Protection Class: IP20 (according to IEC 60529)

• Mounting Plate: 10 mm thick chipboard, 4-point mounting

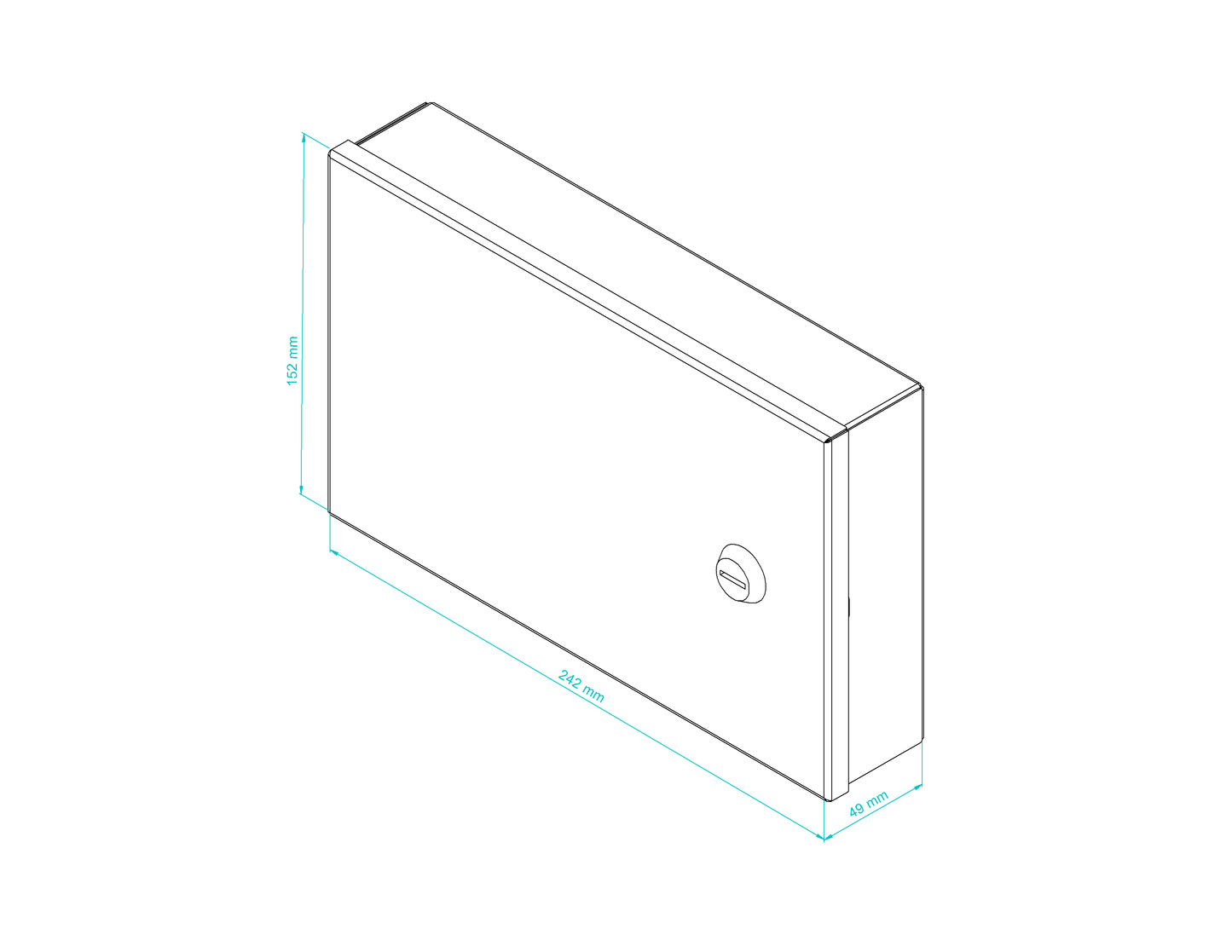

• Dimensions:

  • Width: 240 mm

  • Height: 150 mm

  • Depth: 50 mm

Applications

This enclosure is perfect for:

• Telecommunication & structured cabling systems

• Alarm systems and security modules

• CCTV equipment and intercom units

• Home automation and smart building integrations

• Industrial sensor and control installations

• Public buildings and professional-grade wiring closets

Included in the Set

• Metal housing enclosure (240x150x50 mm)

• 10 mm thick chipboard mounting plate

• Patent lock with 2 keys

• Pre-drilled mounting and cable entry points

Why Choose the Stalflex MB-TPR1M-MP-B?

✅ Durability: Withstands mechanical damage and environmental exposure

✅ Clean Finish: Sleek black color matches modern and industrial settings

✅ Secure: Lockable doors protect equipment from tampering

✅ Functional: Modular layout simplifies installation and future expansion

✅ Made in Poland: Manufactured to high ecological and quality standards using laser-cut and precision-welded components
